C16x/C24x/C30x Operator’s Manual Drill - 67
Operate
Remove Rod
If the length of rod outside the bore reaches 30’ (9 m), ask a helper to remove rod sections as needed.
Remove Rod Section
1. Operate controls to stop rotation of drilling attachment.
2. Shut down engine.
3. Disconnect and remove applicable rod section with applicable special tool (p/n 351-272). See
“Disassemble Drill String” on page 69.
Reconnect Drill String
1. Start engine and set to low throttle.
2. Slowly move machine forward until attached rod section and drill string are about 1’ (30 cm) apart.
3. Operate drilling attachment controls to align slip latches of attached rod section and drill string.
Rotating shaft will cause death or serious injury.
To help avoid injury:
• Only access drill string with hands when engine is shut down.

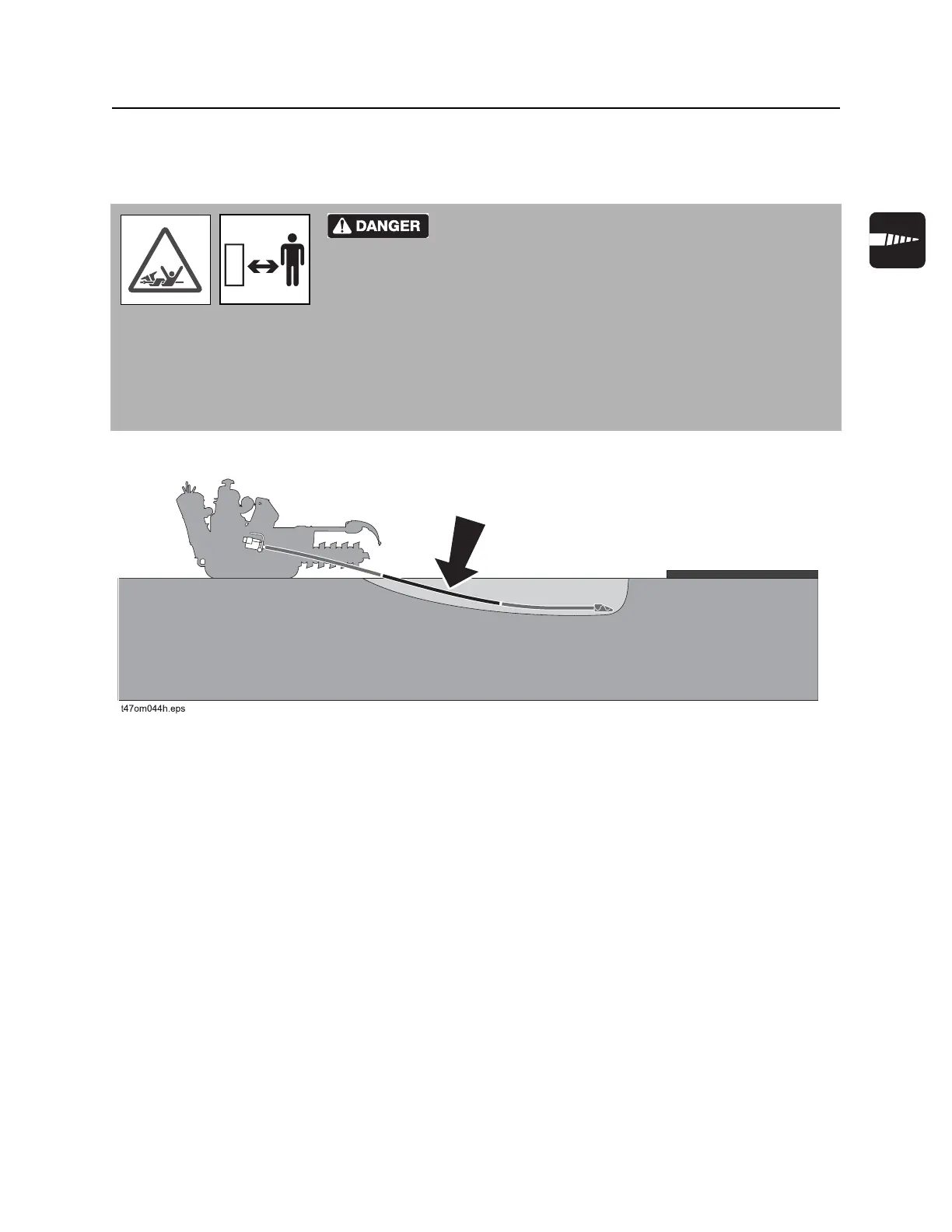

• Always remove second rod section (as shown). Leave first rod section attached to drilling
attachment.
To Next Page
