C16x/C24x/C30x Operator’s Manual Drill - 69
Finish Job
Finish Job

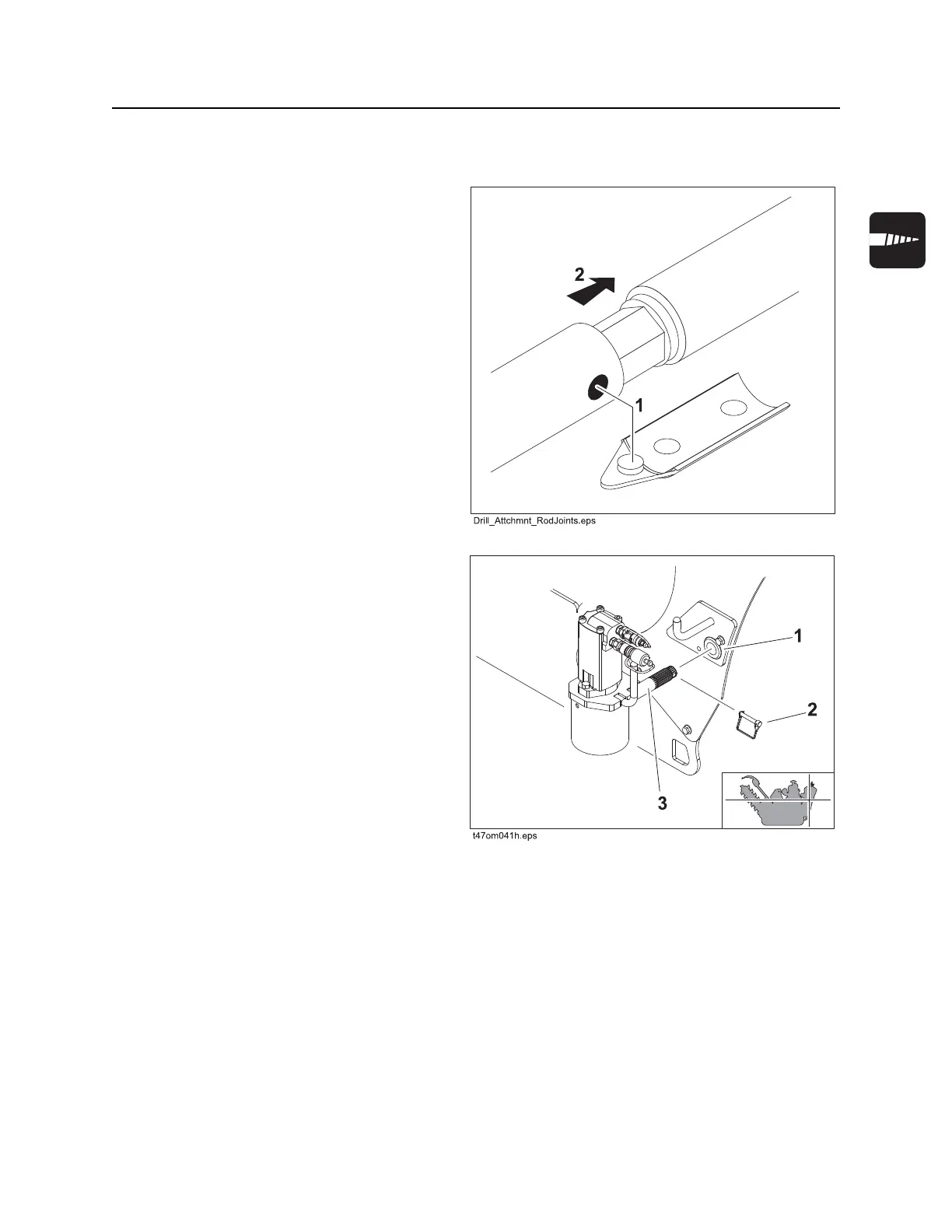

Disassemble Drill String
1. Shut down engine.
2. Disconnect drill string from drilling
attachment.
3. Remove drill bit.
4. Disconnect rod sections:
• Press tab through hole in female side
of joint (1) using special tool (p/n 351-
272).
• Pull rod sections apart (2).
Remove Drilling Attachment
When not in use, install the Roto Witch
®
drilling attachment in storage position on left
side of console.
1. Ensure engine is shut down.
2. Disconnect hydraulic lines.
3. Install dust covers on hydraulic connectors
of drilling attachment.
4. Engage mount pin (3) in bore of
console (1).
5. Secure the assembly with pin (2).
