Drill - 60 C16x/C24x/C30x Operator’s Manual
Set up

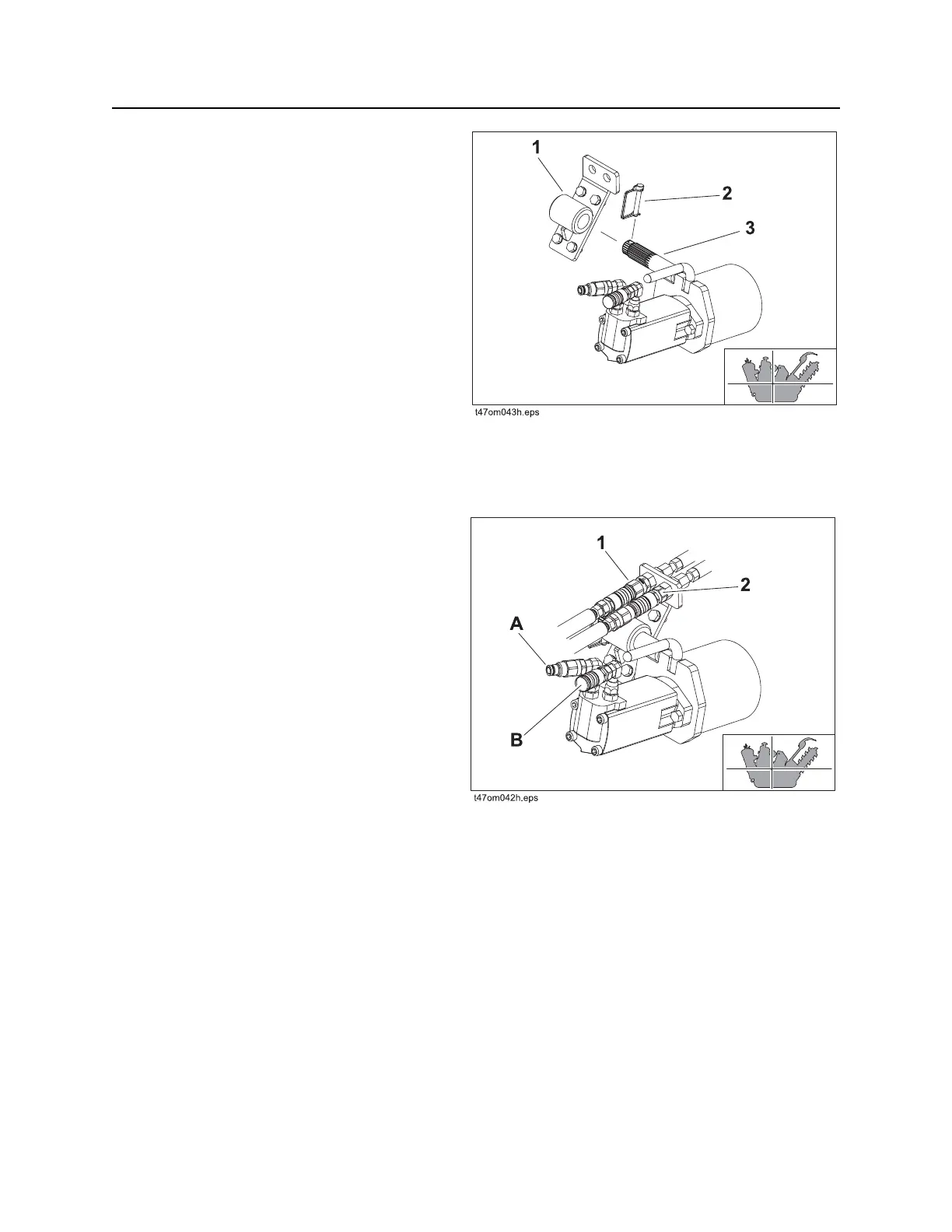

Install Drilling Attachment
The operating position of the Roto Witch
®
drilling attachment is on the right side of the
machine.
1. Ensure engine is shut down.
2. Remove attachment from storage position.
For storage position, see “Remove Drilling
Attachment” on page 69.
3. Fully insert mount pin (3) in cylinder of
attachment plate (1) at correct angle:
drilling attachment must be aligned with
drill string.
4. Secure the assembly with pin (2).
5. Use slip latch to attach drill string to drilling
attachment.
Connect Hydraulic Lines
1. Ensure engine is shut down.
2. Remove dust covers from connectors (A)
and (B).
3. Disconnect hydraulic connector (1) and
connect with connector (A).
4. Disconnect hydraulic connector (2) and
connect with connector (B).
