Drill - 66 C16x/C24x/C30x Operator’s Manual
Operate

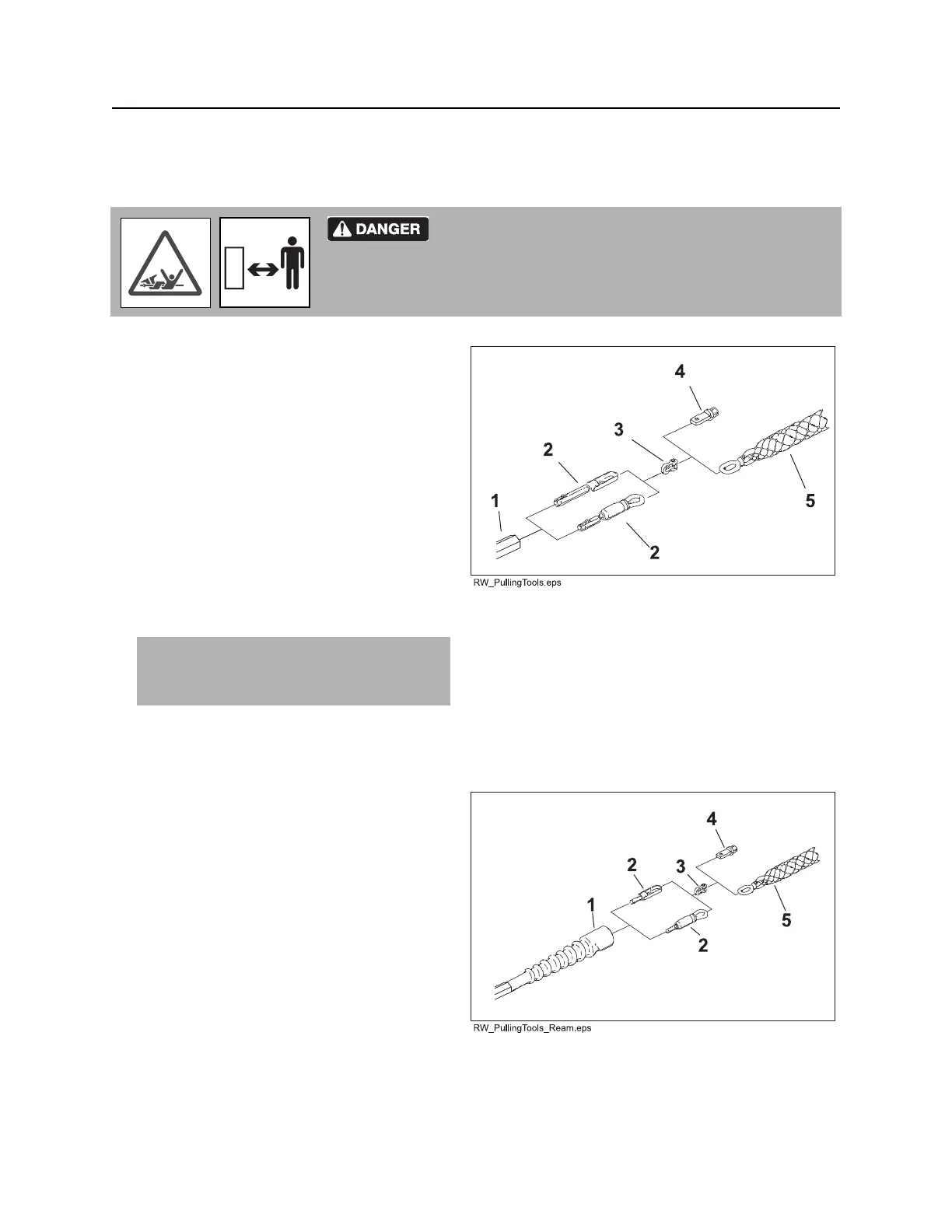

Pull Product
To install product, pull it through the bore after drilling or at final pass of backreaming.
After drilling
1. Remove drill bit and attach applicable
swivel (2) to drill string (1). Ensure
swivel (2) swivels correctly.
2. Use shackle (3) to attach pipe pulling
adapter (4) or pulling grip (5) to swivel (2).
3. Attach material to pipe pulling adapter (4)
or pulling grip (5).
4. Set engine to low throttle.
5. Slowly back up machine. If there is a
blockage, begin counterclockwise rotation.
6. When product exits approach trench, stop
machine immediately.
When backreaming
1. Attach applicable swivel (2) to reamer (1).
Ensure swivel (2) swivels correctly.
2. Use shackle (3) to attach pipe pulling
adapter (4) or pulling grip (5) to swivel (2).
3. Attach material to pipe pulling adapter (4)
or pulling grip (5).
4. Backream. See “Backream” on page 65.
Rotating shaft will kill or seriously injure. Stay away.
To help avoid injury: Ensure no one is in target trench or near product
being installed. If swivel malfunctions, material can rotate.
IMPORTANT: If length of rod outside the
bore reaches 30’ (9 m), remove rod
section. See “Remove Rod” on page 67.
