C16x/C24x/C30x Operator’s Manual Drill - 63
Operate

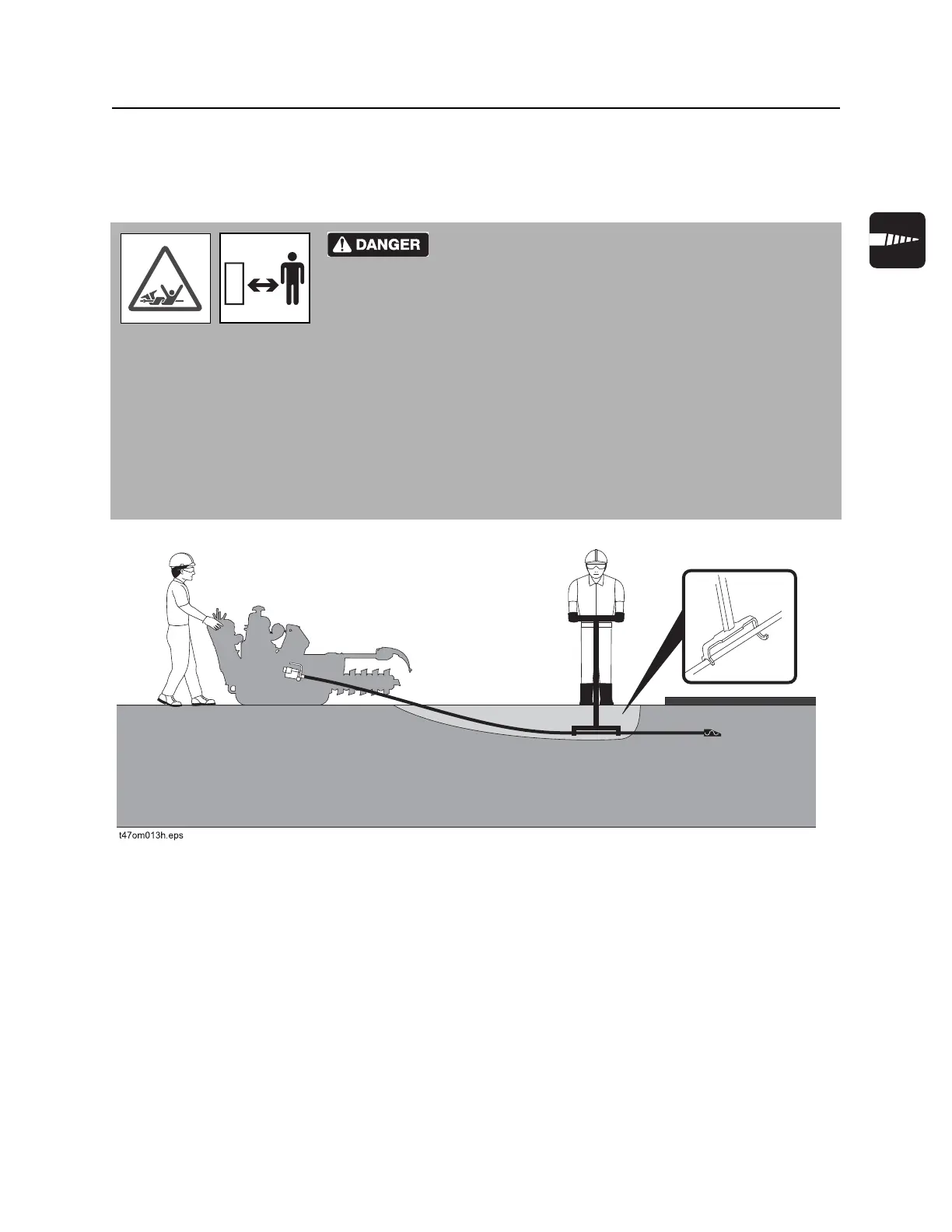

Start Bore with Drill String Guide
If jobsite conditions make it necessary, ask a helper to follow the instructions below to operate the drill
string guide at start of bore.
1. Stand on left side of approach trench.
2. Put drill string guide in correct position:
• at least 3’ (1 m) behind drill bit
• hook side toward bore
• cradle side toward machine
3. When drill string guide is in correct position, signal machine operator to start bore.
4. Use drill string guide to control the first 5’ (1.5 m) of the bore path.
5. When length of bore is 5’ (1.5 m), have machine operator stop machine.
6. When drill string has stopped, remove drill string guide and leave danger area.
Rotating shaft will kill or seriously injure. Stay away.
To help avoid injury:
• Use only the approved Ditch Witch
®
drill string guide (p/n 118-079).
• Do not straddle trench or drill string. Do not enter trench.
• Keep hands and feet away from drill string and drilling attachment.
• Do not use drill string guide during backreaming or when drill string is being pulled back.
• Only use drill string guide on left side of approach trench.
