Service - 92 C16x/C24x/C30x Operator’s Manual
10 Hour Service
C30x: Briggs & Stratton
®
Vanguard
TM
31 HP

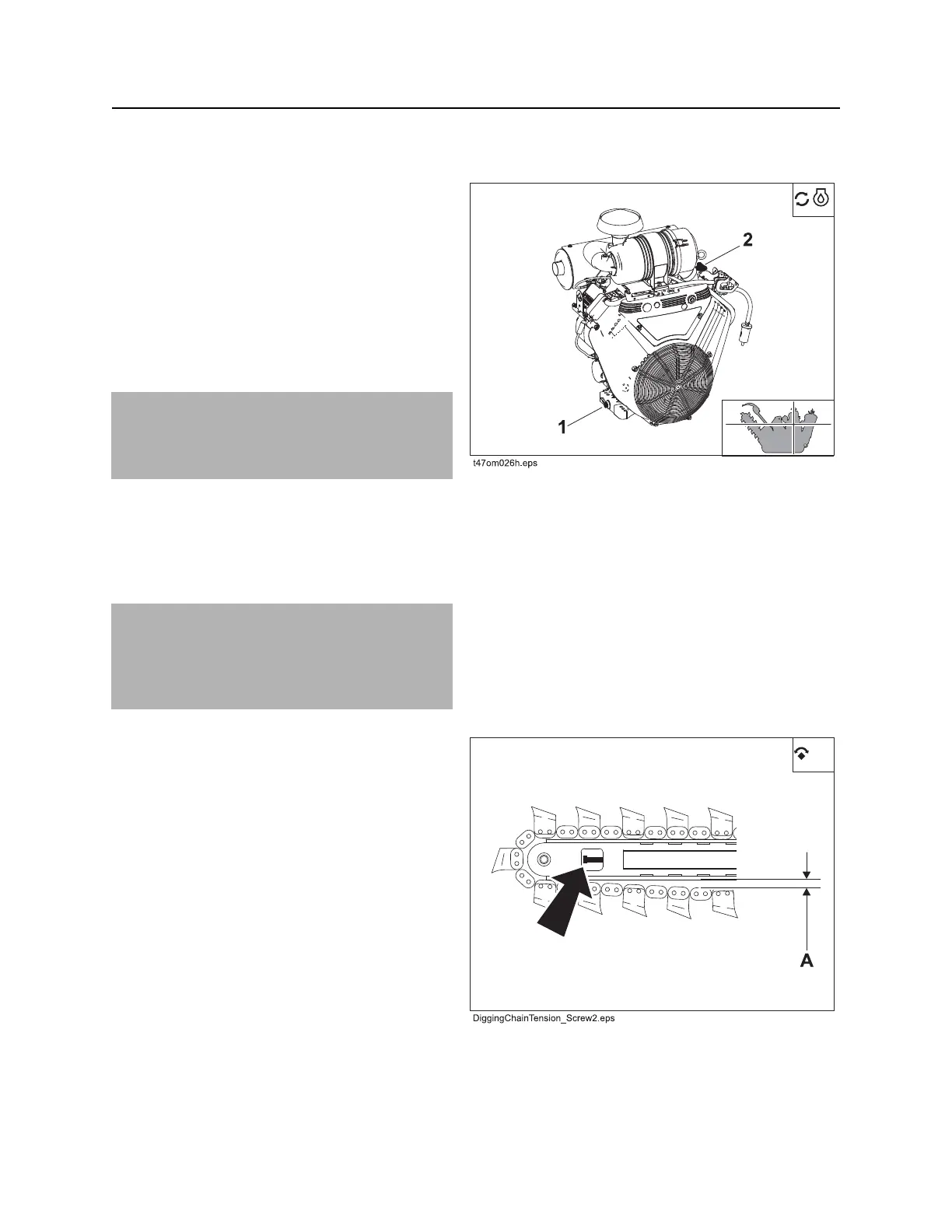

Change engine oil after the first 10 hours of
operation and every 100 hours thereafter.
1. Drain at plug (1) while oil is still warm.
2. Replace plug.
3. Slowly add GEO at fill cap (2) until level rises
to FULL mark on dipstick.
4. Tighten dipstick.
Check Digging Chain Tension
Check digging chain tension every 10 hours and
adjust as needed.
To check:
1. Move boom in horizontal position.
2. Measure distance A from bottom of boom to
chain:
• When 35K chain is correctly tensioned,
distance A is 1.5-2.0” (38-51 mm).
• When 19K chain is correctly tensioned,
distance A is 1-1.5” (25-38 mm).
To adjust tension with adjustment screw:
1. Loosen jam nut on adjustment screw.
2. To tighten digging chain, turn adjustment
screw clockwise. To loosen digging chain,
turn counterclockwise.
3. When proper tension is reached, tighten jam
nut.
NOTICE: Engine oil capacity is 78 oz (2.3 L).
Too much oil will damage the engine.
• Do not overfill.
NOTICE: Overtightening will cause chain
stretch, loss of machine performance, and
possible premature chain failure.
• Use correct chain tension.
