Conduct a Bore - 78 JT5 Operator’s Manual
Record Bore Path
CMW
®

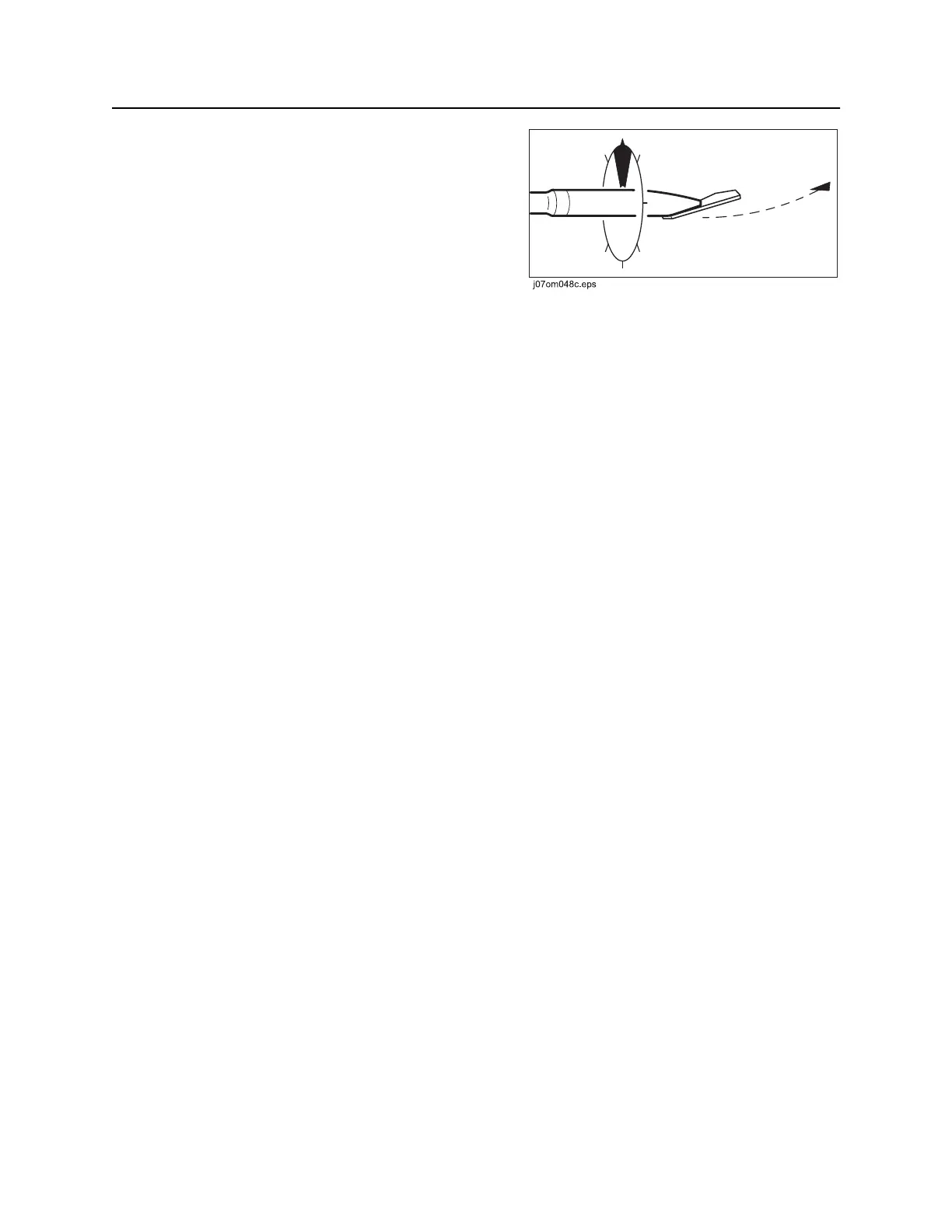

Drill Head Position
The drill head position is determined by reading
beacon roll. Roll is displayed as a clock face
position.
1. Read beacon roll.
2. Slowly rotate pipe until locator displays desired
beacon roll.
To change direction:
1. Rotate pipe to clock position you intend to travel.
2. Push pipe into ground.
To move forward without changing direction:
Rotate pipe into ground.
Record Bore Path
Locate drill head every length of pipe. As the job is completed, record the actual data for each drill pipe.
List pitch and depth of each joint and a brief description of the procedure. In addition, draw a simple sketch
of the site and record depth and rough location of pullback.
The Trac Management System Plus is also available for plotting and tracking your bore path. It utilizes the
tracker, display, a tracking beacon, and special software. The display can store jobs in its memory or the
system can be run in the field using a laptop computer equipped with the Windows
®
95 or higher operating
system. See your Ditch Witch
®
dealer for details.
