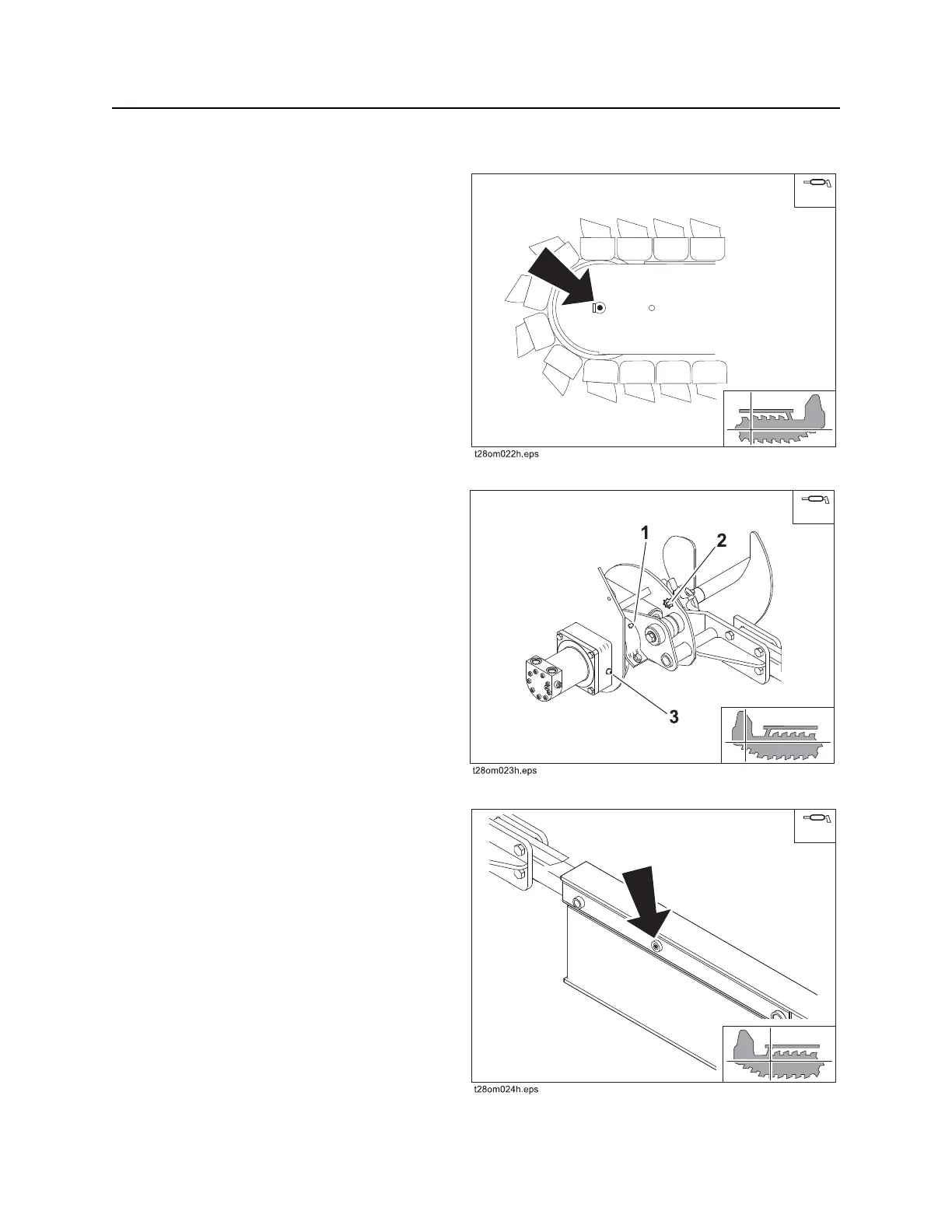

Service - 152
R
T45 Operator
’s Manual
10 Hour
T
rencher
Lube T
rencher T
ail Roller
Remove plug, wipe zerk clean and lube every 10
hours with MPG
.
Lube T
rencher Pivot
Wipe three zerks clean
and lube every 10
hours
with MPG
.
•
Lube zerk (3) until grease a
ppears at
headshaf
t hub.
•
Lube zerks (1, 2) with 8-1
0 pumps of MPG
.
Lube T
rencher Pivot Stub
Wipe zerk clean and lube every 10 hours with
MPG
.
152
