RT45 Operator’s Manual Specifications - 187
RT45 Tractor with H313 Trencher
Specifications

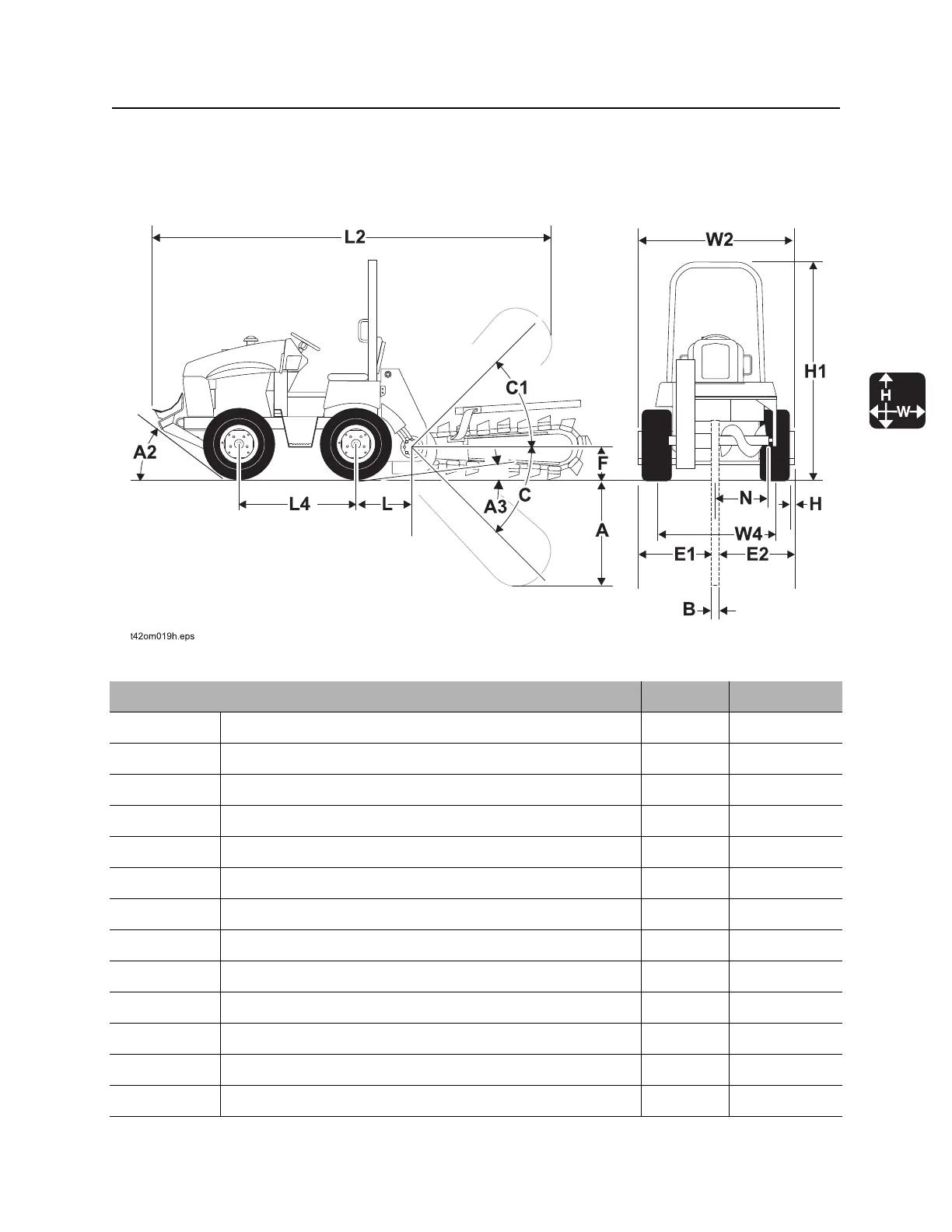

RT45 Tractor with H313 Trencher
Dimensions * U.S. Metric
A Trench depth, maximum 63 in 1.6 m
A2 Angle of approach 20° 20°
A3 Angle of departure 17° 17°
B Trench width, minimum to maximum 6-12 in 150-305 mm
C Boom travel down 58° 58°
C1 Boom travel up 50° 50°
E1 Centerline trench to outside edge of unit, left 35 in 890 mm
E2 Centerline trench to outside edge of unit, right 29 in 740 mm
F Headshaft height, digging chain 17 in 430 mm
H Overhang beyond tire 3.5 in 90 mm
H1 Height 86 in 2.2 m
L Headshaft overhang 24.5 in 620 mm
L2 Length, transport 155 in 3.9 m
