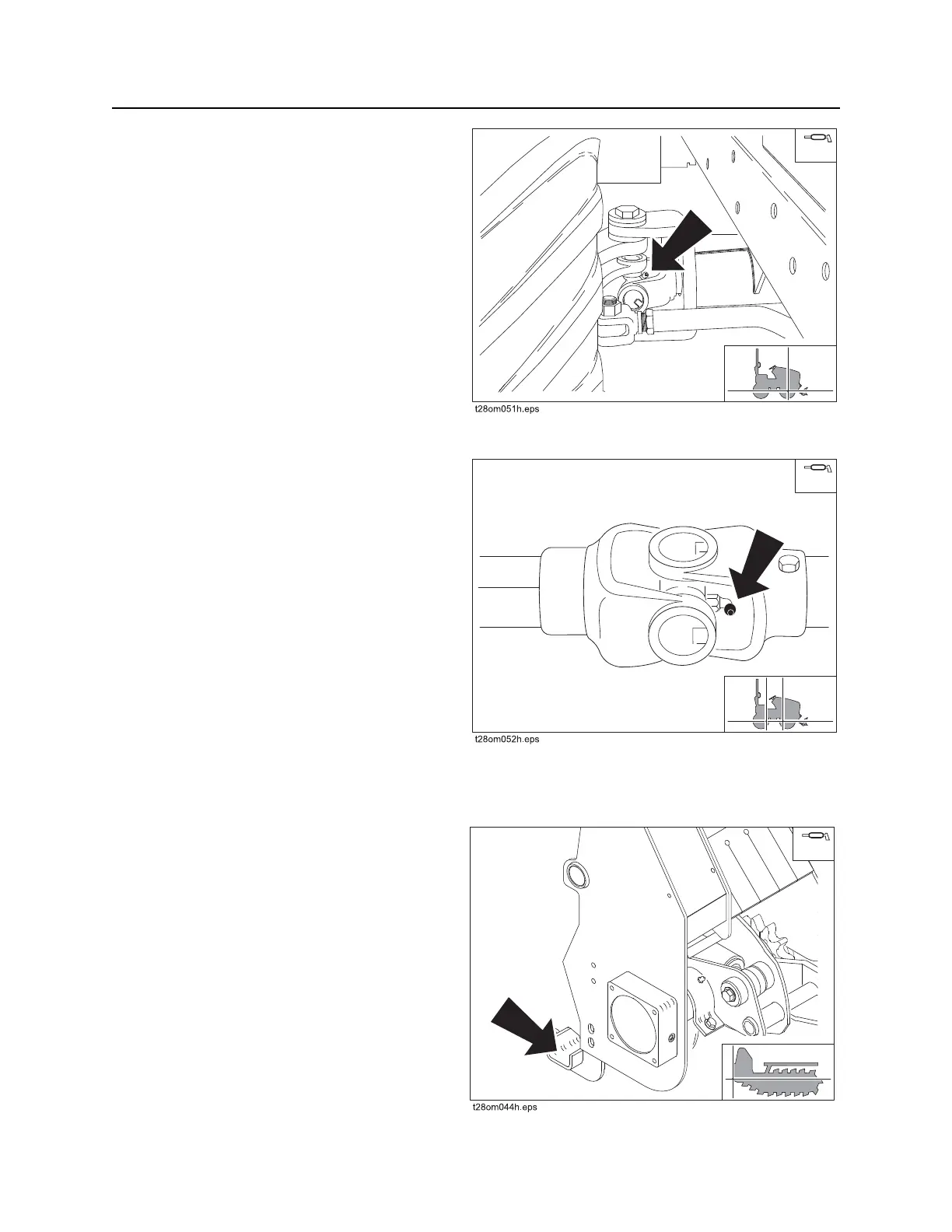

Service - 164
R
T45 Operator
’s Manual
50 Hour
Lube Cross and Bearings (Initial
Service)
Lube zerks with 2-3 shot
s of MPG at 50 hours
initially
. Repeat process every 500 hours
thereafter
.
Lube Universal Joint
s (Initial Service)
Lube zerks with MPG at 50 hours initia
lly
. Repeat
process every 500 hour
s thereafte
r
.
T
rencher
Lube Frame Slide
Lube frame slide with MPG every 50 hours.
164
