DITEC DOD - Motor Assembling; Installation

11
IP2395EN

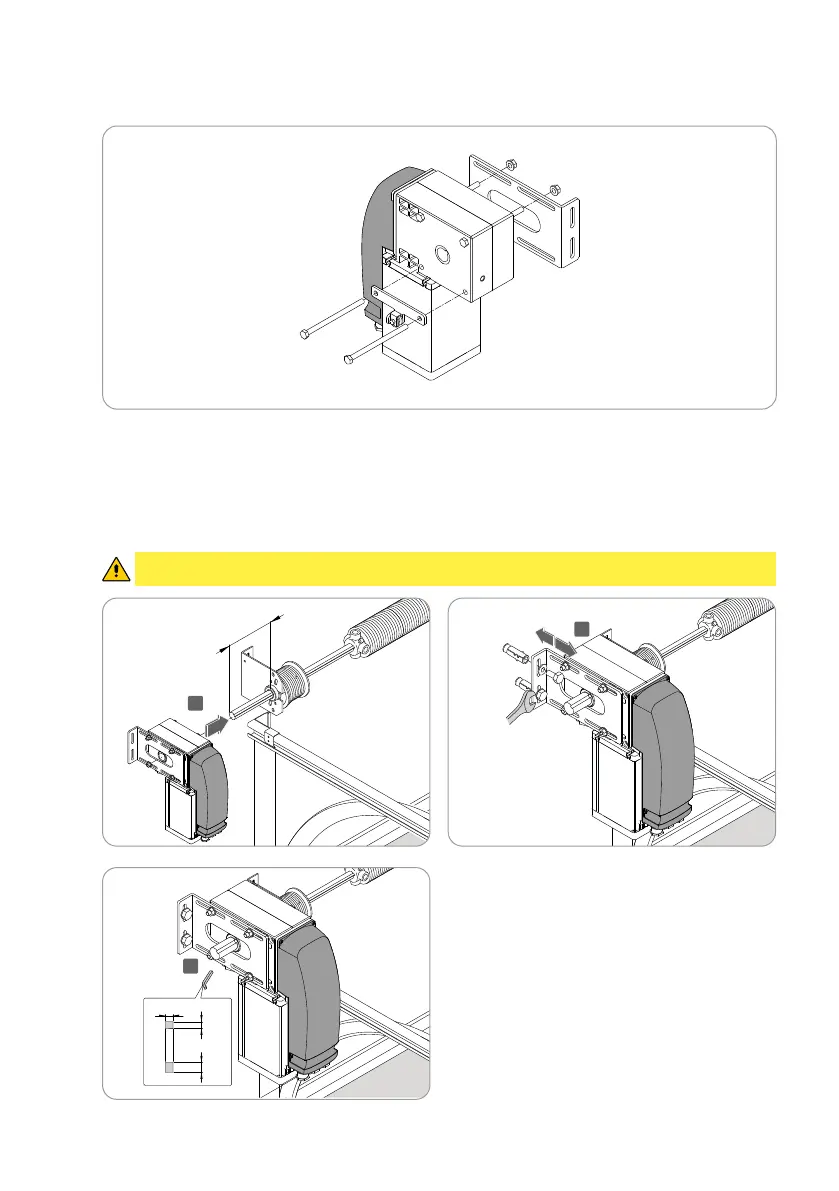

4.1 Motor assembling
Mount the DOD14 motor onto the wall bracket and release idle bracket as shown in figure.
4.2 Installation
- Fit the DOD14 motor onto the drive shaft.
- After having determined the position of the wall bracket, drill the holes and secure the bracket
in place with dowels (not supplied).
- Insert the appropriate cotter according to shaft cavity length.
- Secure the metal clamp so as to prevent the risk of the cotter coming out of the shaft.
ATTENTION: firmly tighten down all fastening screws.
min 130
1
2
3
6.35 (1/4")
6.35
(1/4")
9.5
(3/8")
