DITEC DOD - Limit Switch Adjustment

19
IP2395EN

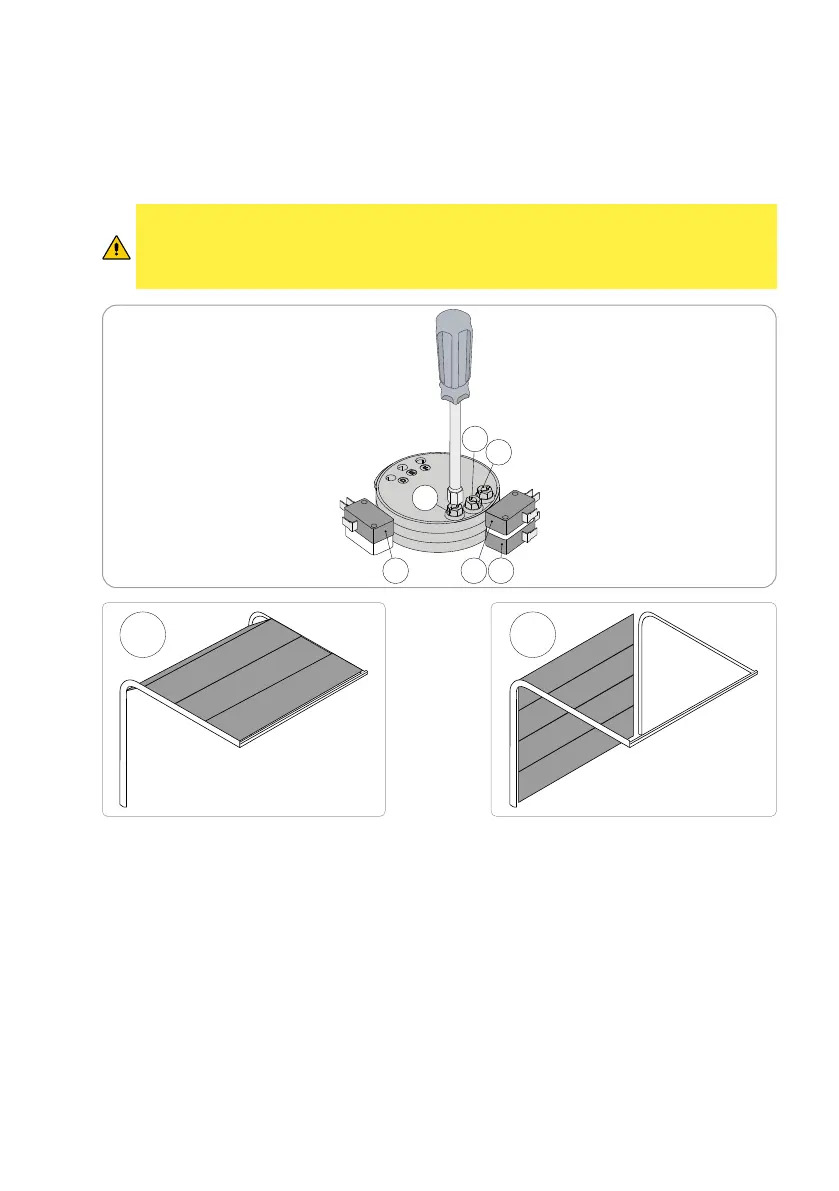

With door open, adjust screw [A] so as to cause the associated cam to trigger the opening limit
switch.
With door closed, adjust screw [C] so as to cause the associated cam to trigger the closing limit
switch.
You can decide to adjust the nut [B] so that the relative cam triggers the supplementary contact.
WARNING: the supplementary contact can be used for different purposes (i.e. as a safe-
ty in order not to exceed maximum stroke in closing and opening, as an exclusion of the
sensitive edge after the closing limit switch has been triggered, or for possible acoustic
signals or traffic lights).
9.3 Limit switch adjustment
A
A
B
B
C
C
A
C
