DITEC DOD - Ditec DOD14 Installed on Sliding Door

15
IP2395EN

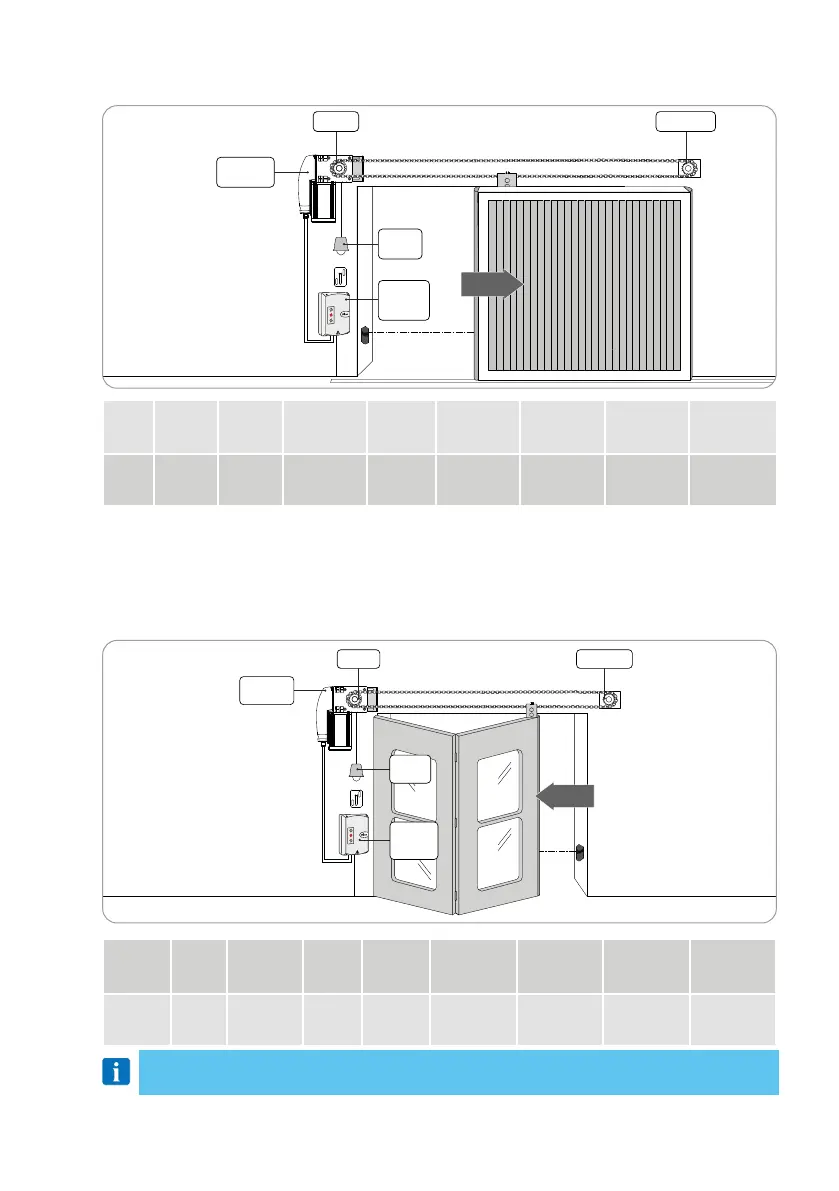

7. Ditec DOD14 installed on sliding door
8. Ditec DOD14 installed on sliding door
OPENING
3Gx1.5 mm² [DOD14]
3x0.5 mm² (limitswitch) 4Gx1.5 mm² (motor)
LCA85
LCA85B
unlock
device
DOD14
DODT
DODRIN1
3x0.5 mm² (limitswitch) 4Gx1.5 mm² (motor)
OPENING
3Gx1.5 mm² [DOD14]
DOD14
unlock
device
DODT
DODRIN1
LCA85
LCA85B
Type Pinion Crown
Reduction
ratio
Torque
[Nm]
Rotating
speed
[RPM]
Door speed
[m/s]
Max Run
[m]
Max Force
[N]
DOD14
DODT
(Z24)
DODRIN1
(Z24)
1:1 60 22 0,11 8,35 1200
Type Pinion Crown
Reduc-
tion
ratio
Torque
[Nm]
Rotating
speed
[RPM]
Door speed
[m/s]
Max Run
[m]
Max Force
[N]
DOD14
DODT
(Z24)
DODRIN1
(Z24)
1:1 60 22 0,11 8,35 1200
NOTE: for proper operation the door shall be equipped with a derailment device and the
chain fastening bracket on the wing must be rotating.
