DITEC DOD - Electrical Connections; Ditec DOD14 - DOITDD1 P Electrical Connections

16
IP2395EN
9. Electrical connections
Before connecting the power supply, make sure the plate data correspond to those of the mains
power supply.
An omnipolar disconnection switch with a contact opening distance of at least 3 mm must be
fitted on the mains supply.
Check there is an adequate residual current circuit breaker and overcurrent cut-out upstream
of the electrical system.
Connect the motor wires to the respective control panel terminals.
WARNING: connect the motor earth wire to the power supply earth.
Connect the limit switch wires to the respective control panel terminals.
Secure the cable using a special cable clamp.
Make sure there are no sharp edges that may damage the power supply cable.
Connection to the mains power supply (in the section outside the automation) is made on an
independent channel, separated from the connections to the control and safety devices.
LCA85
LCA85B
~
LP
30 5 20
0 11A 12A
LN
UWV
016841
DOD14
-
~
~
+
FLM
RossoVerde
Cablaggio finecorsa
3x0.5 mm²
Cablaggio motore
4G x 1.5 mm²
freno
Finecorsa apertura
Finecorsa chiusura
com
STOP
V
W
U
12
11
0
M
1~
B
A
C
Contatto supplementare

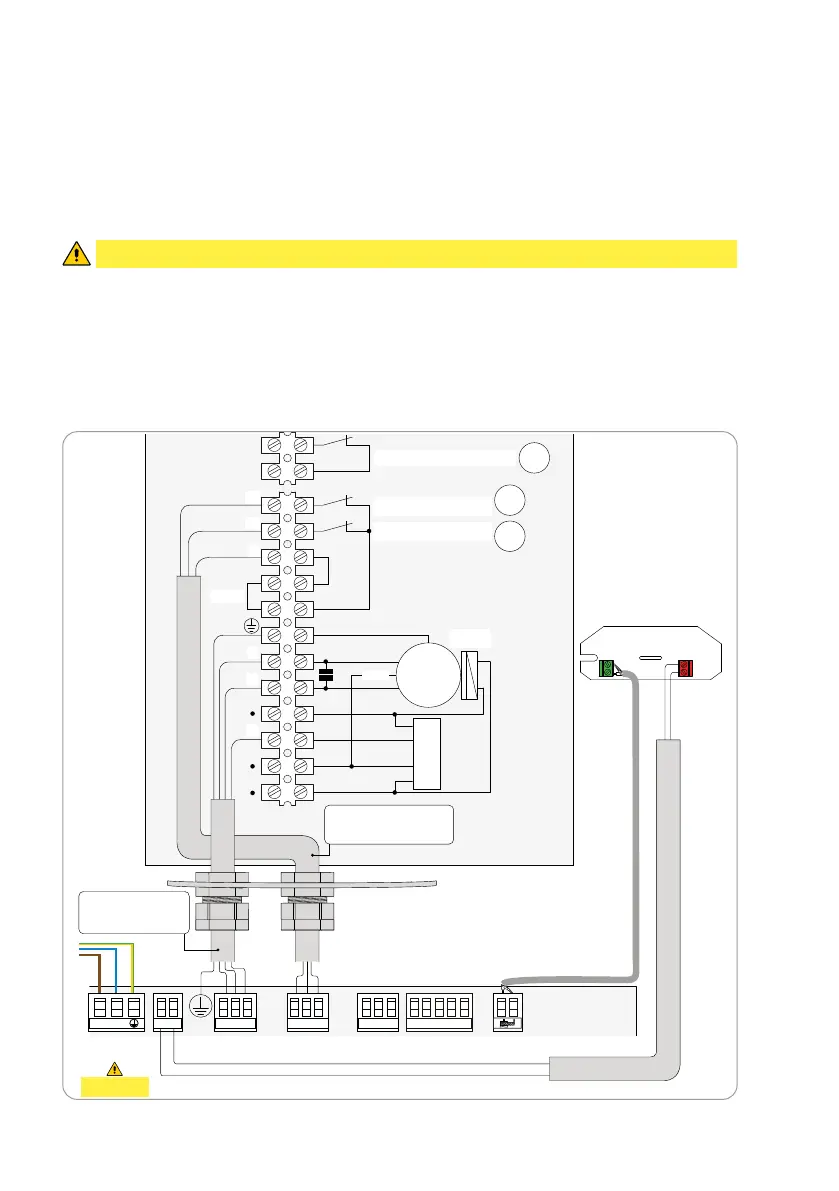

9.1 Ditec DOD14 - DOITDD1P electrical connections
230 V~ - 50 / 60 Hz
Power supply
respect
polarity L-N
green red
Additional contact
Opening limit switch
Closing limit switch
Limit switch wiring
Motor wiring
Brake
