DITEC DOD - Assembly of DODT Drive Shaft with Z24 Pinion

13
IP2395EN

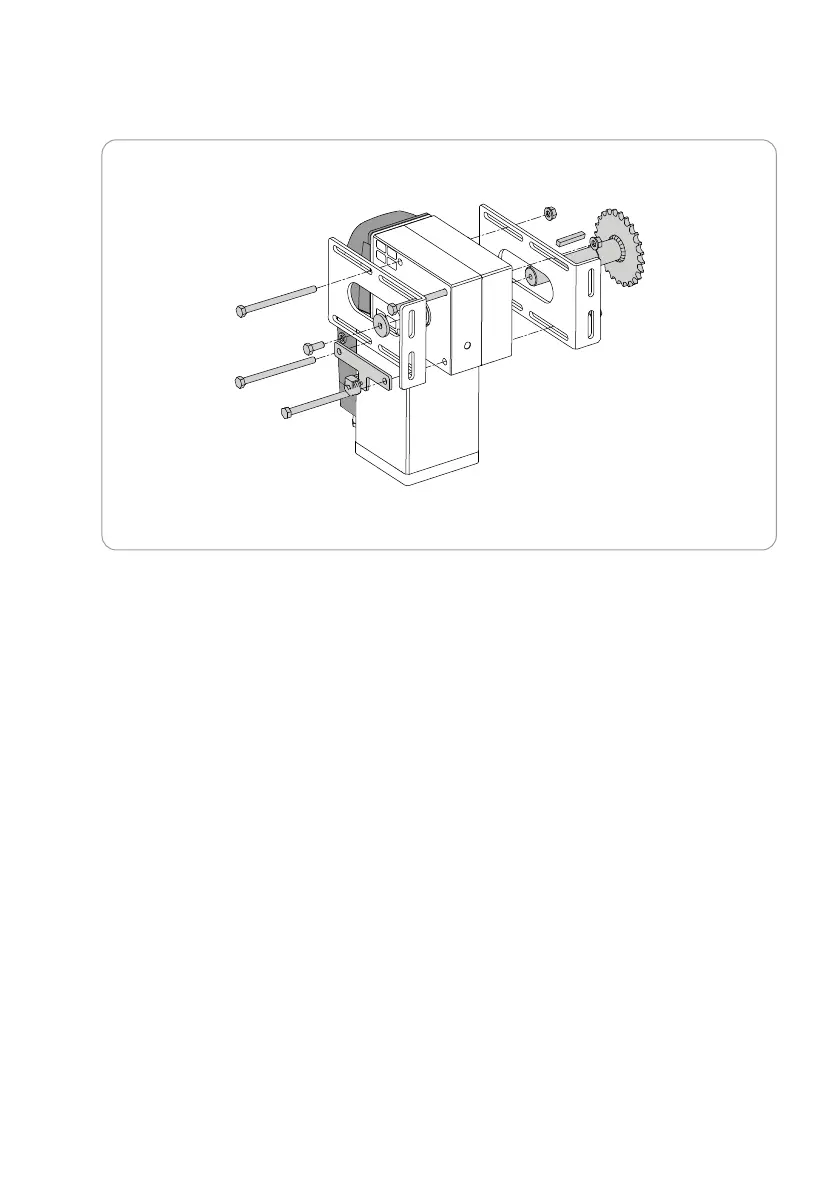

Fasten the wall fixing brackets and the release idle bracket onto the Ditec DOD14 motor and put the
shaft with the pinion into the position required for traction (on one of the two sides of the motor).
5.1 Assembly of DODT drive shaft with Z24 pinion
