DivioTec TBR922 - Hardware and Wiring

2

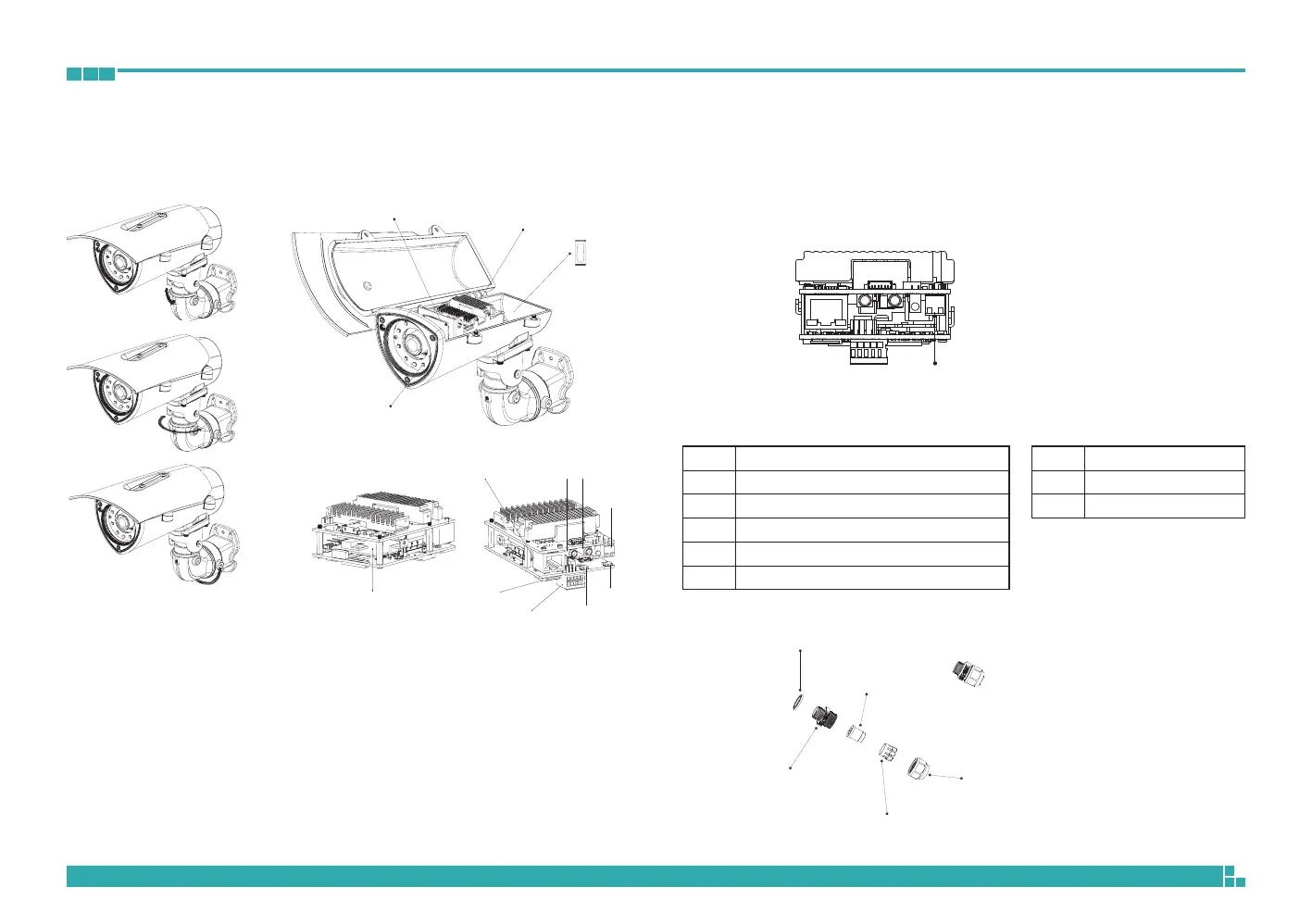

Chapter 1: Product Introduction
DI/O & Function Description DI/O Pin Definition & Waterproof
Connector Description
DI/O
Pin Description
1 ALM_IN (+)
2 ALM_IN (-)
3 ALM_out_NC
4 ALM_out_COM
5 ALM_out_NO
Power
Pin Description
1 AC24V/DC12V (+)
2 AC24V/DC12V (-)
DI/O POWER
54321 2 1
Gasket
Tightening
collar
Waterproof
connector
Seal nut
Strain relief
Main body
DI/O POWER
54321 2 1
Gasket
Tightening
collar
Waterproof
connector
Seal nut
Strain relief
Main body
SB Module
MB Module
8 PCS LED IR
Illuminator
Board Plate
Dehumidier
Packet
Line-out
Line-in
Ethernet / PoE
Micro SD
DI/DO
Reset
Default
DC 12V
/
AC 24V
Heater module
55
O
Rotate
180
O
Rotate
360
O
Rotate
