Chapter 2: Camera Configuration

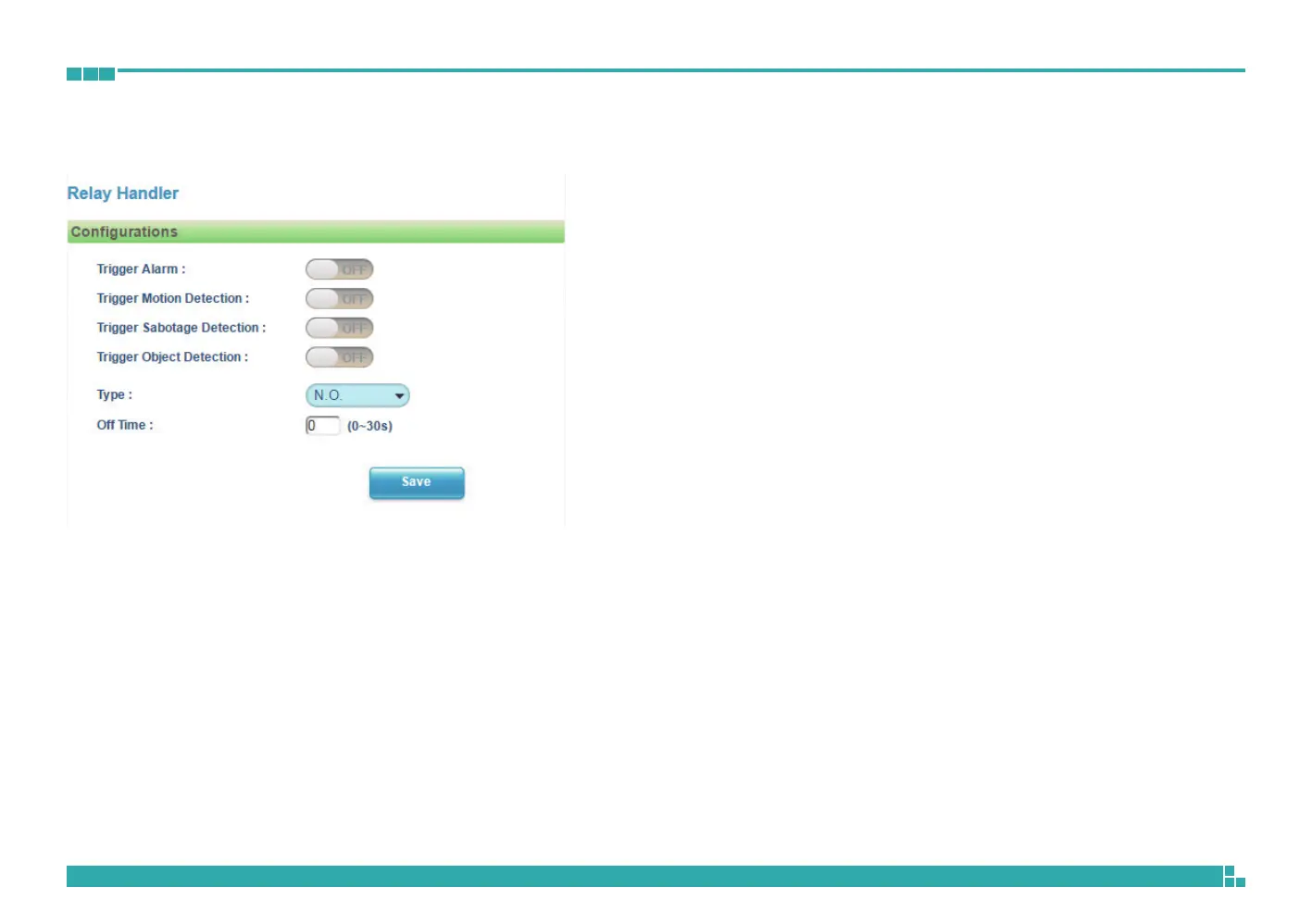

Event - Relay Handler
Relay Handler Configurations
This section configures the event trigger options for devices connected to
the DI/DO of the camera.
Trigger Alarm: When a signal is detected from Alarm in, the Alarm out
will be triggered.
Trigger Motion Detection: When a motion detection event is detected,
the Alarm out will be triggered.
Trigger Sabotage Detection: When a sabotage detection event is
detected, the Alarm out will be triggered.
Trigger Object Detection: When an object detection event is detected, the
Alarm out will be triggered.
Types
The options are N.O. and N.C.
Off Time
Configure the seconds from 0 to 30 seconds.
Save
Save button to apply the configurations, click on this button once all the
settings are confirmed for the new changes to take effect.
