3. Description of function
3.1 General information
Nr. Description
0 FlexxPump 125 B
1 LCD
2 Operation pad (for actions with the activation and programming key)
3 Activation and programming key
4 Lubricant outlet / M16 male thread for bottom mounting
5 M5 female thread for bottom mounting
6 Battery compartment
7 Serial number of the FlexxPump 125 B
8 M5 female thread for rear mounting
9 Cartridge sensor
10 Lubricant inlet with thread for cartridge
11 Nameplate with designation and CE mark and serial number
10
9
8
7
6

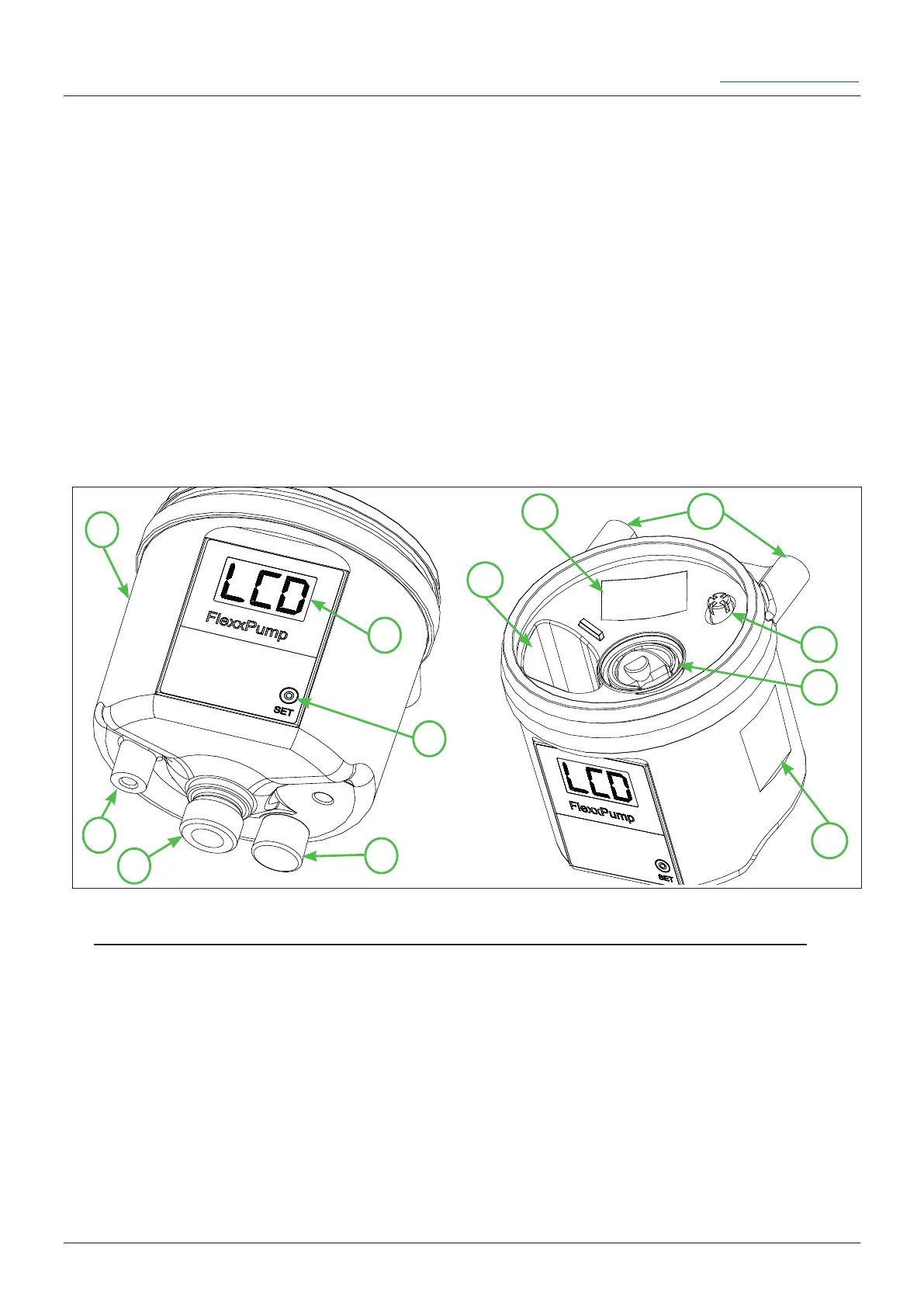

Fig. 1: Overview FlexxPump 125 B
2
1
4
5
3
0
The FlexxPump 125 B is designed as an extremely compact double piston pump
for autonomous operation with grease or oil as lubricant. The two pistons run force-
controlled and counter-rotating. They are united into one outlet. The outlet is secured
by an integrated non-return valve. Approx. 0.15 cm³ of lubricant is pumped during each
dispensing operation; multiple dispensers can be set one after the other.
The LCD on the front panel displays the various operating states; further information
(empty cartridge, error) can be read.
The present FlexxPump1 as battery version has no electrical interface. The supplied
activation and programming key can be used to adjust the operating mode and the
quantity of lubricant pumped per time to supply the lubrication point with the ideal
quantity of lubricant.
