6.3.1 LCD
For optical output, information in the various states is displayed on the LCD via
FlexxPump 125 B. You will be supported by three coloured LEDs to the right of the
LCD, depending on the state of the FlexxPump 125 B. This allows you to assess the
condition of the FlexxPump 125 B from a distance; the following applies: green: OK;

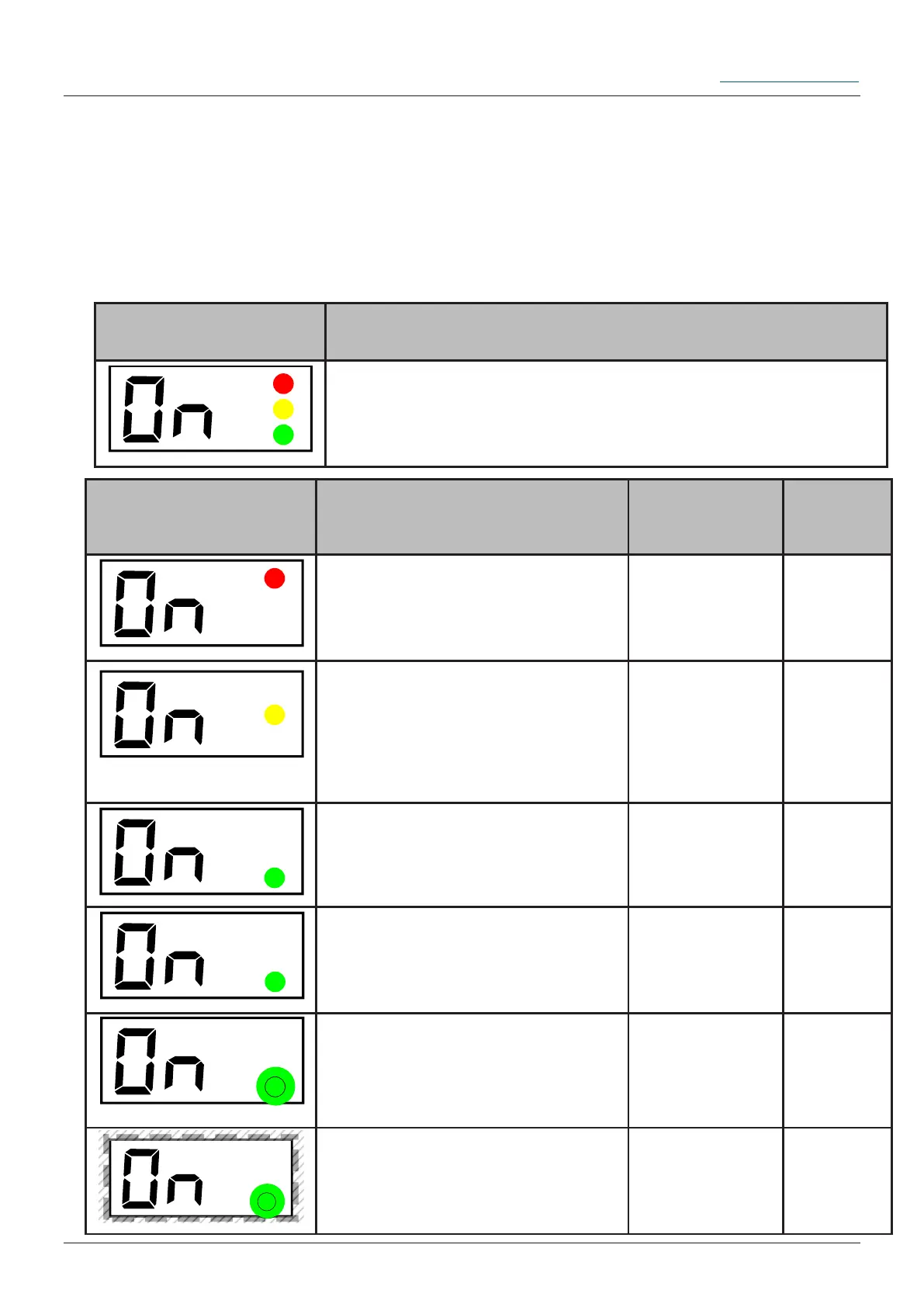

red: Error. The following tables show the LED assignment on the LCD as well as the
explanation of the respective output:
LCD Description Naming
Detail
chapter
The red LED only lights up if
there is an error. The FlexxPump
125 B must be ON before the
error occurs.
Error with the
FlexxPump
125 B
6.4
The yellow LED only lights
up if the activation and
programming key has touched
the action surface (activation and
programming key detected).
Activation and
programming
key detected
by FlexxPump
125 B
6.3
The green LED lights up during
a dispensing process for approx.
10...18 seconds.
FlexxPump 125
B dispenses
lubricant
6.3
The green LED lights up when
changes are possible and the
activation and programming key
was previously detected.
Changes
possible
6.3
The green LED ashes every 30
seconds when FlexxPump 125 B
is ON and there is no error.
FlexxPump
125 B is ready
for use
6.3
The green LED ashes 2x when
a value has been conrmed. In
addition to the green LED, the
LCD also ashes 2x.
Acceptance of
changed value
6.3
Assignment
(graphic)
Assignment (in words)
upper LED: red
medially LED: yellow
lower LED: green
On
On
On
On
On
On
On
