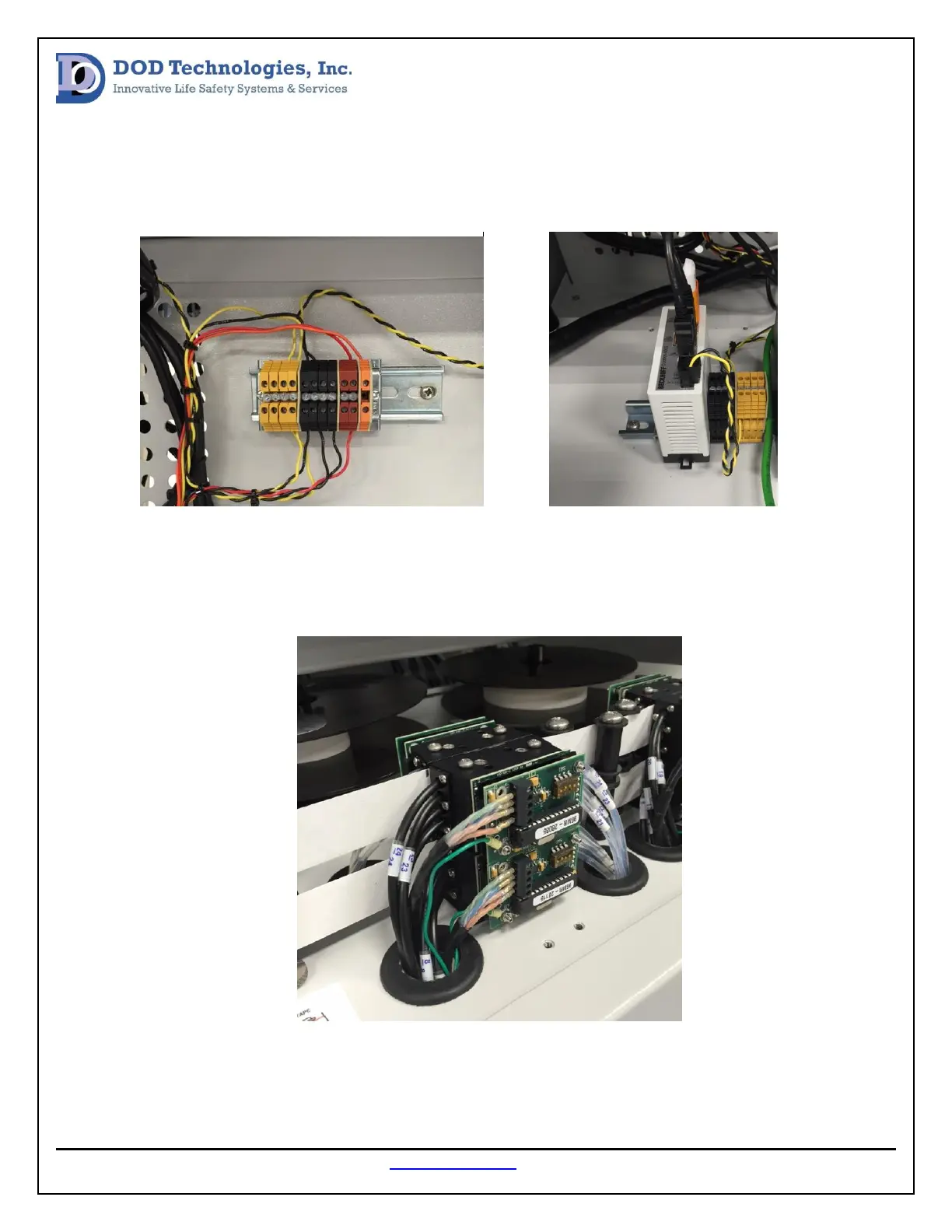

the bottom panel of the control box (see image below). This 24 V supply is used to power I/O modules
located in the control box.
The supply voltage should also be checked at one optic block of each active analyzer. The voltage can
can be measured at the green and blue wire of the optic block after the cover is removed (see image
below). Because the pins are located next to each other this test should be done carfully to avoid a short
and blowing a fuse
