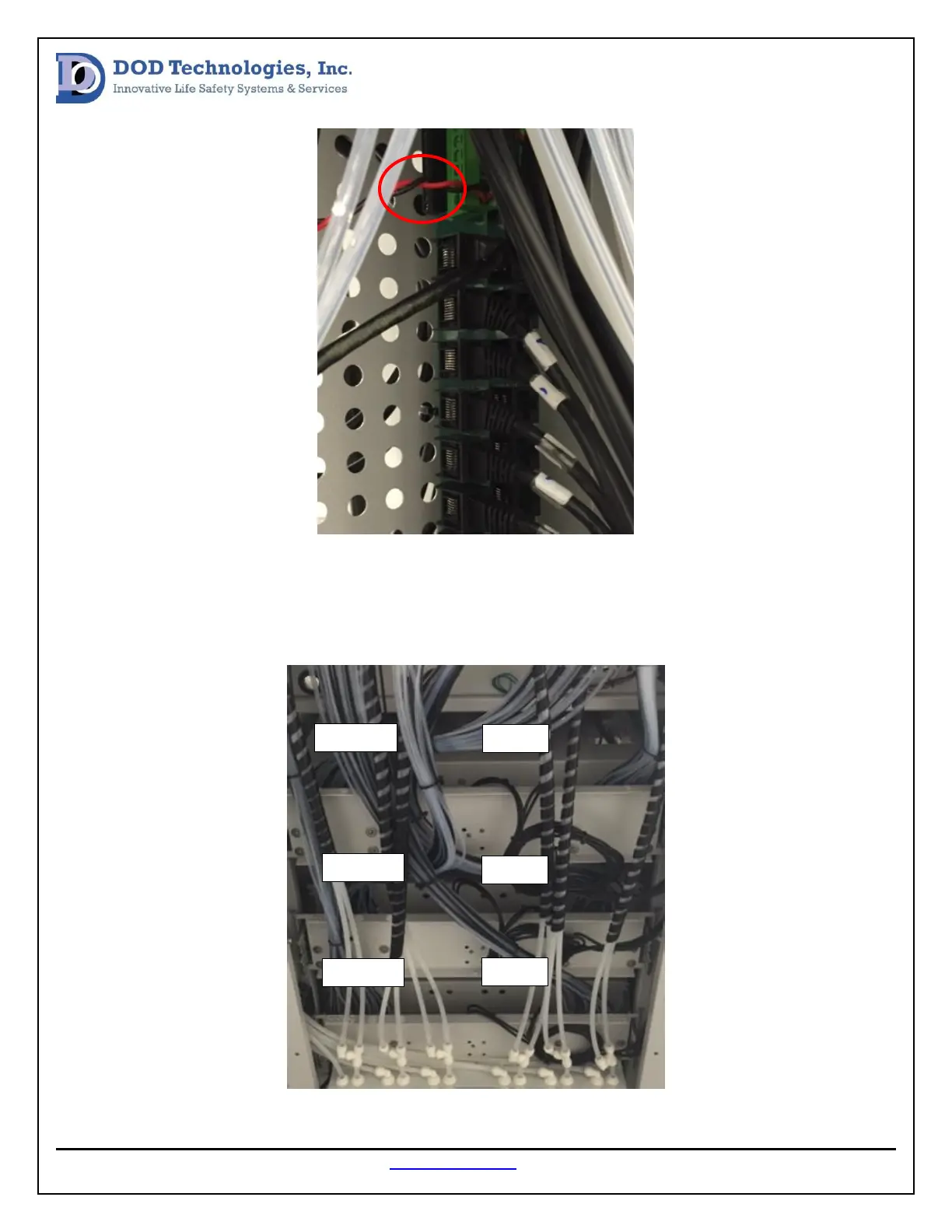

If all previous steps do not help locate a problem power cycle the transducer board that is producing 0
values by unplugging it and plugging it back in. Use the image below to locate the correct board. After
the transducer board is plugged back in return to the system screen and press Set Offsets. If this does
not eliminate 0 values please contact DOD Technologies technical support.
A1-16
A17-32
B17-32
B1-16
C1-16
C17-32
