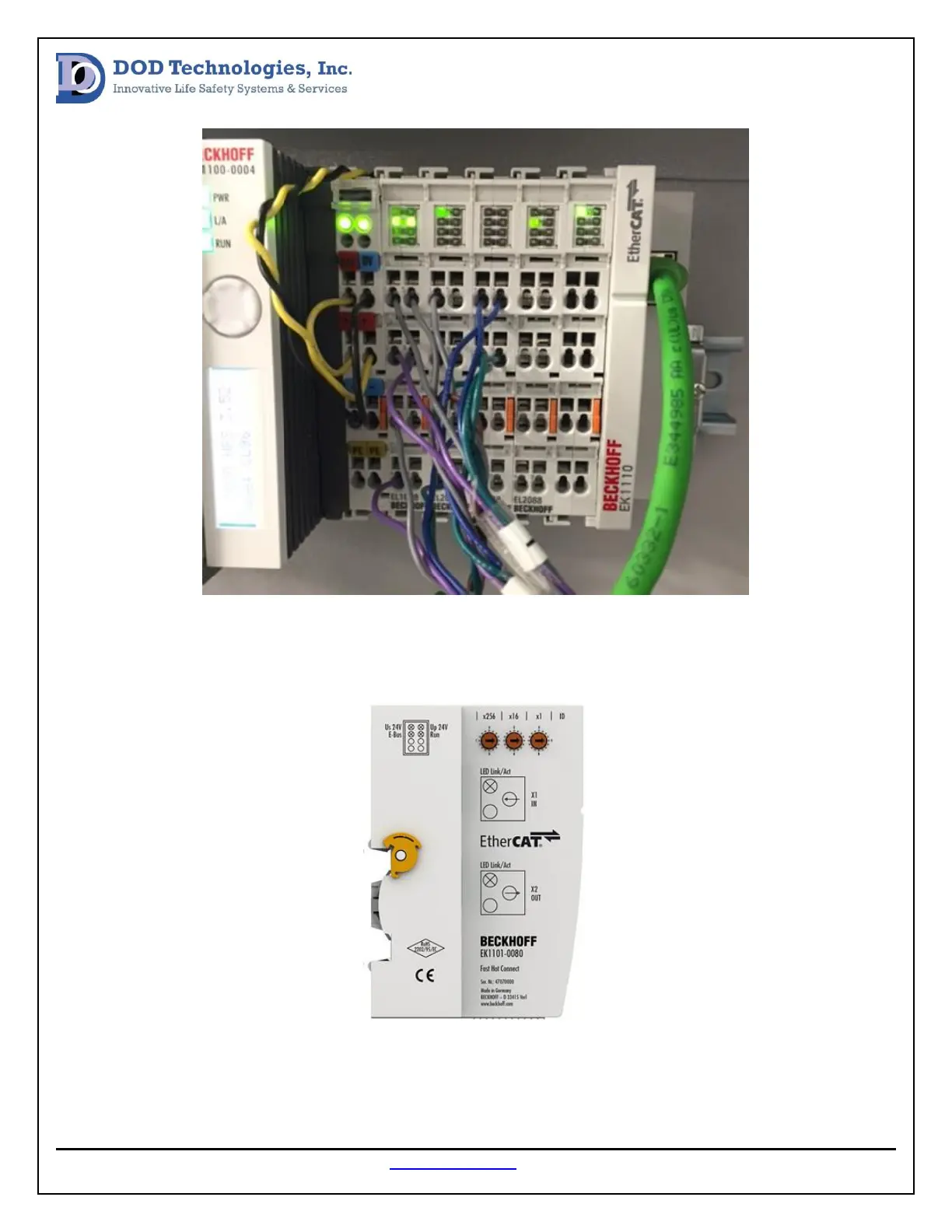

If this does not resolve the fault confirm the address settings on each bank of I/O modules using the
address charts below. Each bank of modules will have (1) EK1101 module at the beginning with (3)
address dials ( see image below).
