3. Remove the (2) screws holding the optic block cover down.
4. Remove the (2) screws holding down the optic block.

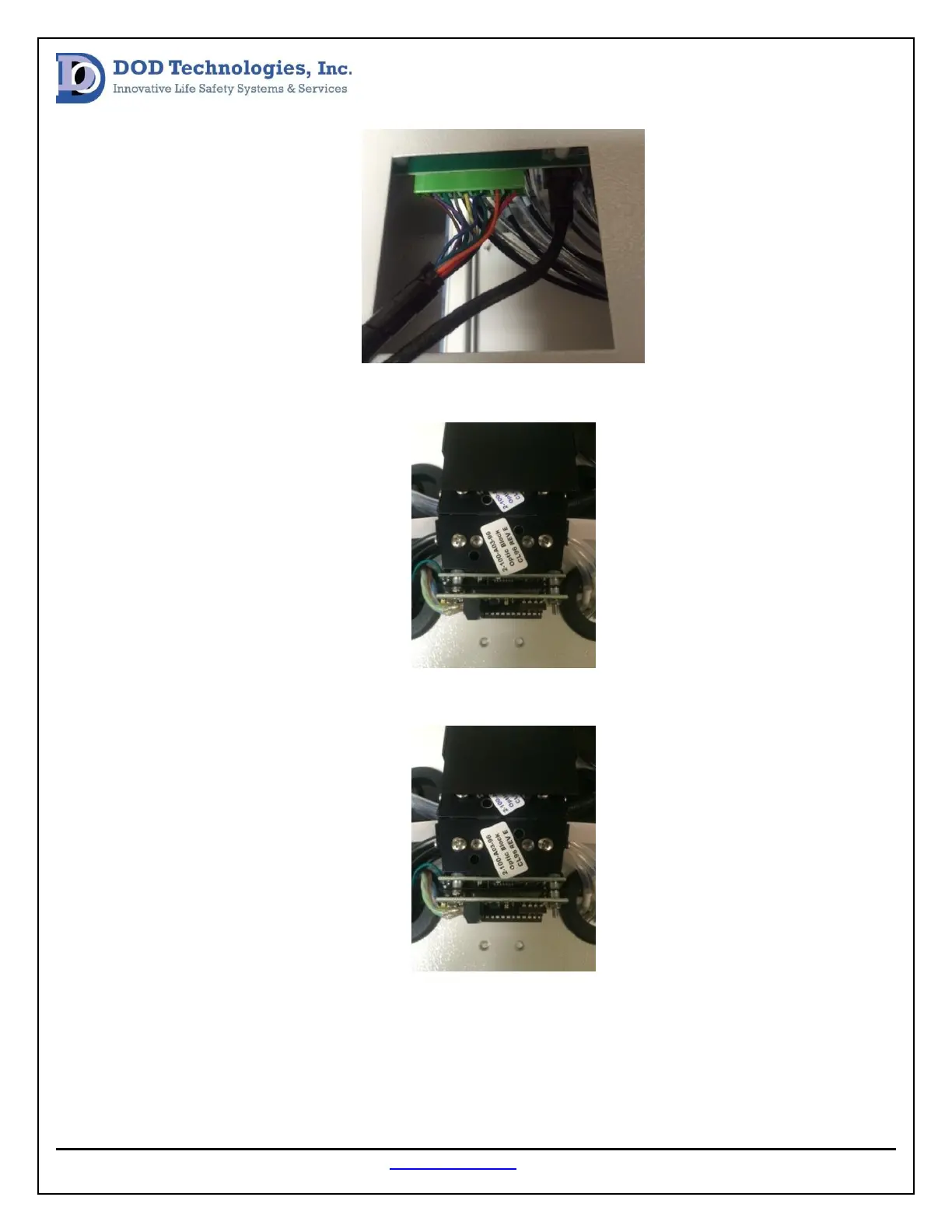

5. Remove all (8) tubes and pay attention to the orientation for reinsertion. (See image below)
