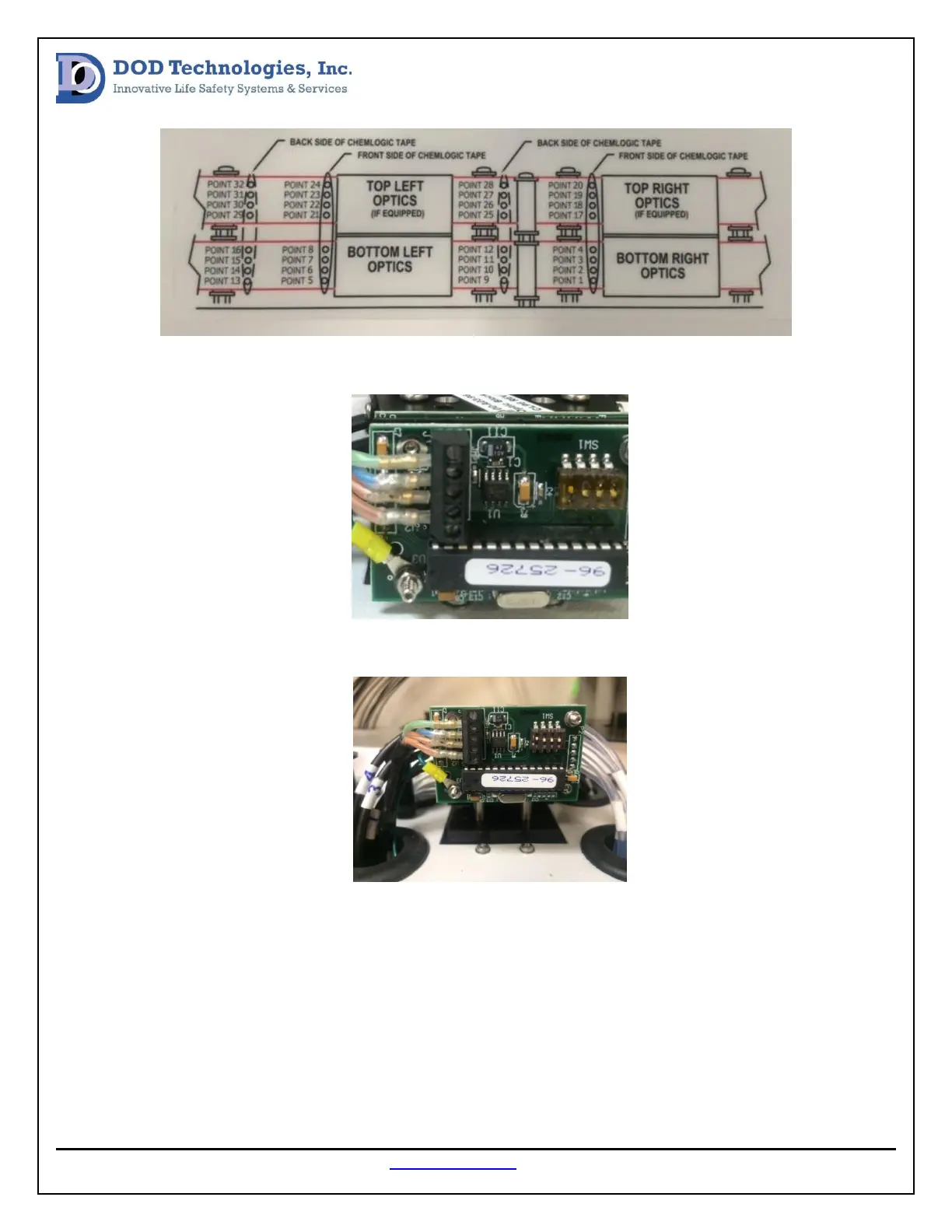

6. Unscrew (4) wires and pay attention to orientation for reinsertion. (See image below)
7. Lift block over pins and then remove the pins.
8. Install the new block by following the steps in reverse order
9. Confirm the address on the new block matches the address on the old block.
