TECHNICAL REFERENCE

EPT031055 Issue 2 September 2017 4-13

F-Series

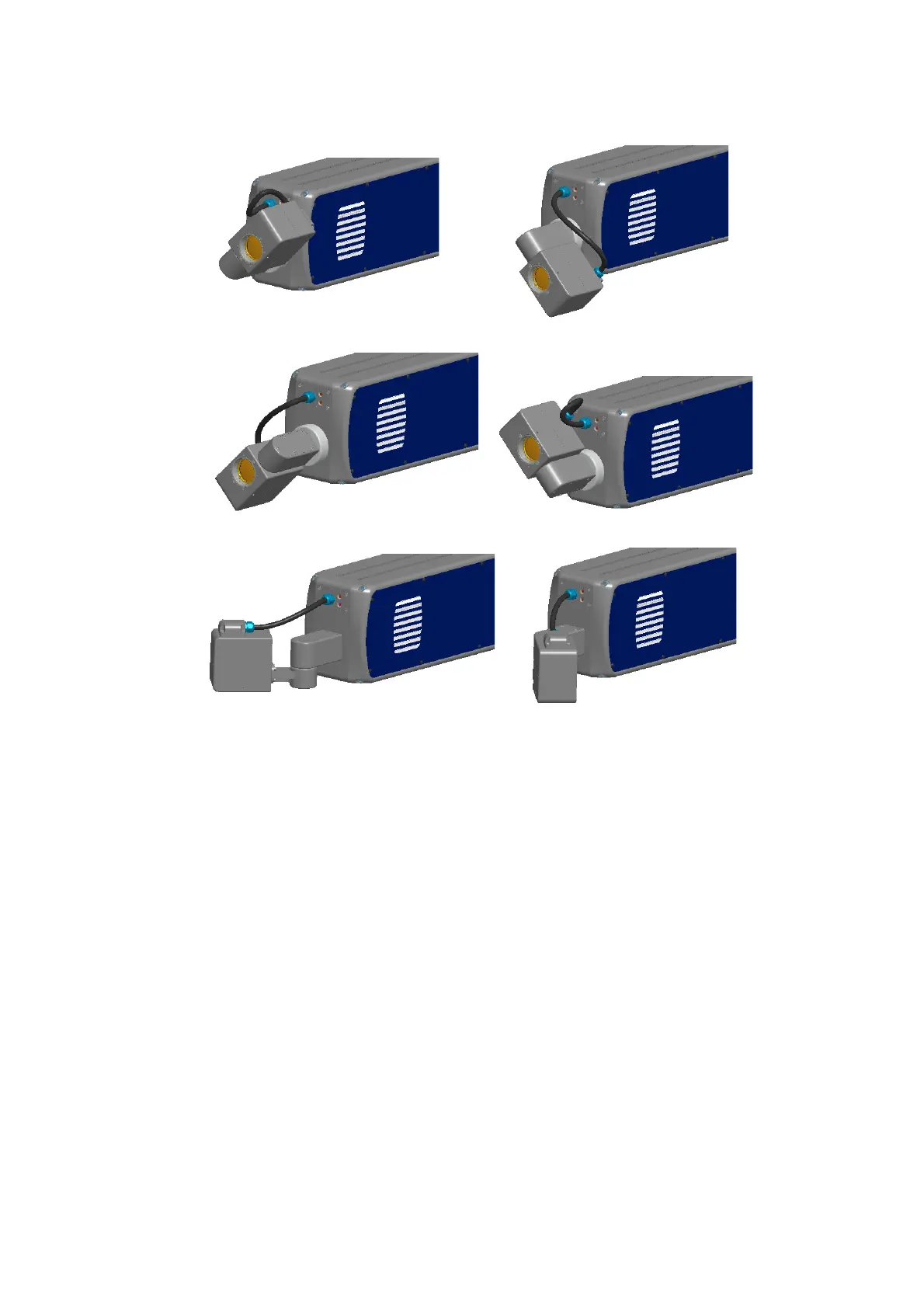

Scanner RapidScan Orientations

axial-RapidScan 45°

axial-RapidScan 225°

down-left-RapidScan

axial-RapidScan 135°

axial-RapidScan 315°

down-right-RapidScan
