INSTALLATION INSTRUCTIONS

2-32 EPT031055 Issue 2 September 2017

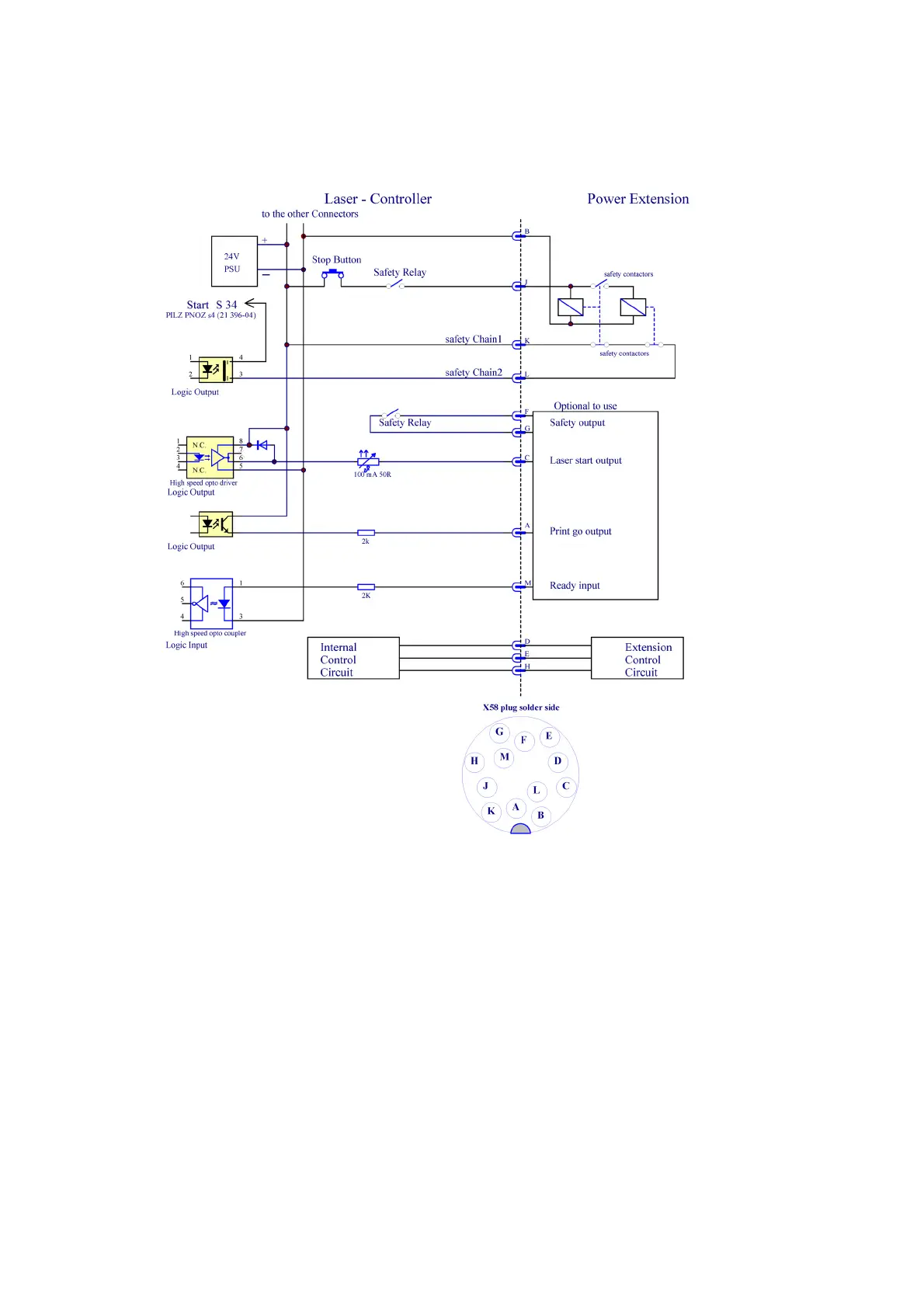

X58 Connector Schematic - Power Extension

Only needed to connect the power extension box for 60 Watt systems.

Do not connect anything else to this connector.
