Domino F720i

To Next Page

To Previous Page

INSTALLATION INSTRUCTIONS

EPT031055 Issue 2 September 2017 2-33

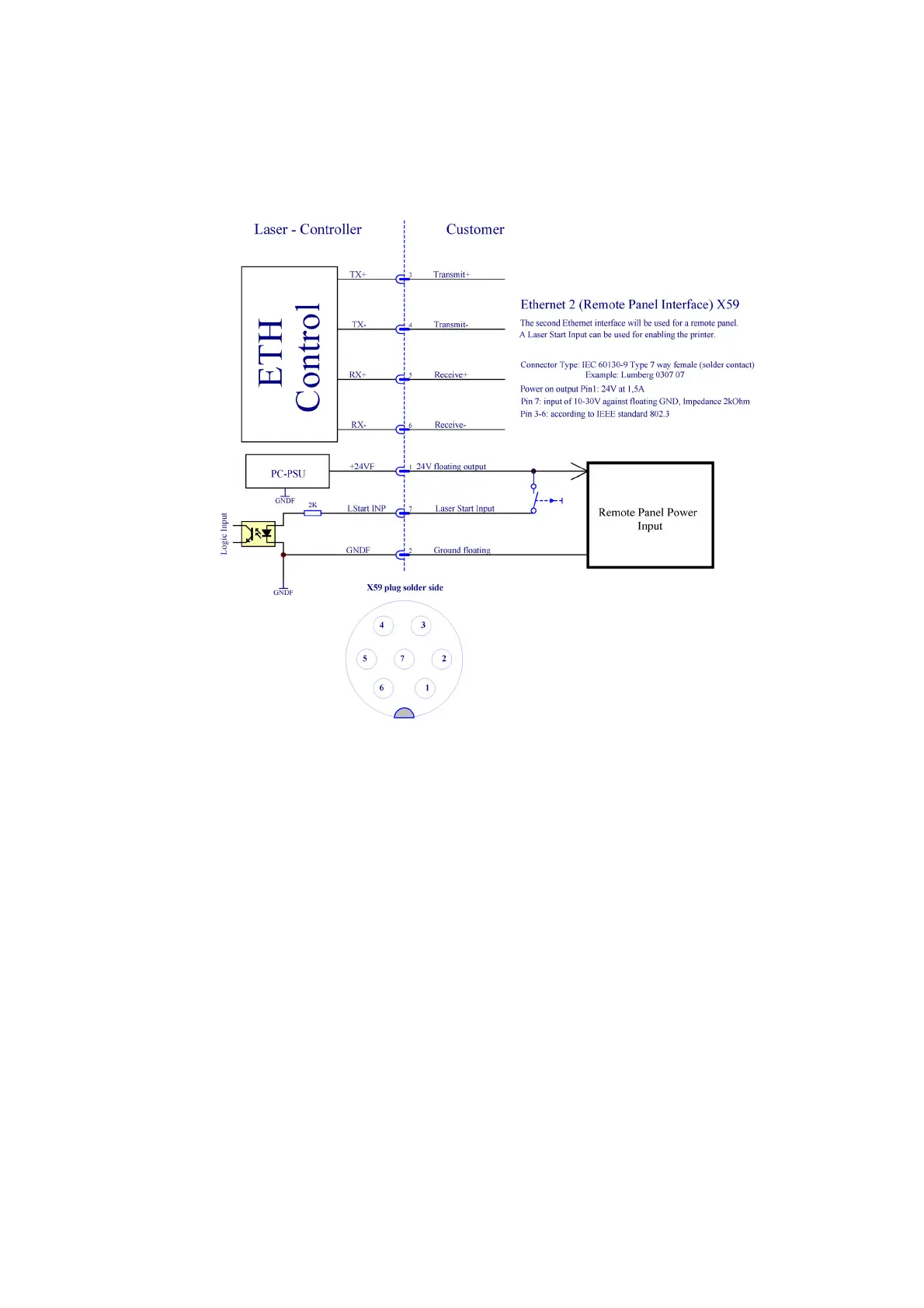

X59 Connector Schematic - Ethernet 2 - Remote

Panel Interface

Main Page

Table of Contents19
General21
Designated Use22
Safety Symbols24
Specific Dangers25
Electrical Energy25
Laser Radiation25
Protective Safety Goggles26
Aiming Beam / Pilot Laser26
Harmful Dust and Vapours27
Touching the Lens27
Touching the Scan Head Mirrors27
Noise27
Crushing27
Laser Marking Process28
Water Cooling28
Simmer Mode29
Lifting and Moving the Controller30
Laser Protection Window30
Guarding31
Access Guards31
Visor Guards31
Beam Stop Guard32
Materials32
Beam Delivery Cable (Fibre)32
Interlock Switches33
Emergency off33
Guarding Labels34
Specific Precautions During Maintenance or Repair Work34
System Naming Conventions35
Laser Warning and Information Signs36
Location of Controller Signs38
Location of Laser Signs38
Unpacking and Inventory41
Assembly41
Environmental and Storage Conditions41
Handling the Equipment41
Laser Head Assembly42
Scanner Fields and Distances43
Removal of the Transport Locking Device43
Control Unit44
Power Supply44
Installing the Controller Cables46
Touchpanel47
Electrical Connections49
Connections for F-Series51
USB 1.1 Port52
Ethernet Connections52
X2 Connector Schematic - Beacons53
X3 Connector Schematic - Product Detector and X6 Connector Schematic - Shaft Encoder55
X4 Connector Schematic - Machine Control58
The Compile OK Signal61
X7 Connector Schematic - Fume Extraction64
X23 Connector Schematic - RS232 COM166
X28 Connector Schematic - Air Chiller Control68
X58 Connector Schematic - Power Extension70
X59 Connector Schematic - Ethernet 2 - Remote Panel Interface71
X29 Connection BCP7 Controller - Fibre Laser73
X69 User Interlock / Start Without Shutter74
X69 User Interlock / Start with Shutter78
Timing81
Shutter Control Modes82
Standard Mode82
Static Mode82
Setup the Shutter Control Mode82
Safety of the Laser System84
Without Shutter84
With Shutter85
Performance Level According to en 1384988
Without Shutter88
With Shutter88
Shutter Timing89
Connector Overview90
Fume Extraction System91
Guarding92
Initial Operation92
Initial Setup Wizard93
Positioning Code on the Product94
Achieving Maximum Line Speed96
Making Marks Longer than One Field Size99
Rapidscan Technology100
Product Distance and Print Start - Ignore Distance102
F-Series Laser Marking System107
Controls and Indicators108
Touchpanel and Interface108
Controls108
Indicator Lamps Controller109
Indicators Lamps Fibre Laser111
Switching on and off114
Switching on the Control Unit114
Switching on the Laser Head114
Switching off the Laser Head115
Switching off the Control Unit115
Switching on a System with Shutter116
Important Additional Shutter Information117
F-Series Connectivity118
Webserver119
Quickstep Interface120
Home Screen120
Status Bar121
General Functions122
Initial Setup123
Display Settings123
Setting the Master Clock123
Production Line Setup124
Security Management125
Security Mode126
Add/Change User126
Delete a User/Change Password126
Groups126
Specify Password Policy127
Electronic Signature127
Global Print Settings128
Print Field Offset128
Message Options128
Marking Engine128
Setup Aiming128
Aiming Beam and Shutter129
Content/Shift Codes130
Clocks/Dates130
Creating and Editing a Message131
Add Text131
Unicode132
Common Unicode Characters132
Input Method Editor (IME)132
General Property Values133
Conditional Printing134
Text Object Properties135
Add a New Barcode136
Barcode Object Properties136
Add an Image137
Image Object Properties137
DXF Import138
Properties138
Add a Shape: Arc/Rectangle139
Arc Object Properties139
Rectangle Object Properties139
Add a New Variable140
Add a New Clock141
Add a New Counter141
Add a New Prompted Field143
Add a New Link144
Add a New Script145
Add a New Coding146
Add a New Shift Code146
Add a New Text Insert147
Add a New Text Variable148
Add a New Text Link148
Undo/Redo149
File149
Parameter Set150
Standard Parameters152
Default Parameters152
Parameter Ranges152
Edit153
Add153
Move153
Zoom154
Re-Order Visual Items154
Item Selection List154
Resize154
Message Store and File Management155
Selecting an Existing Message155
File Manager155
Backup and Restore156
Backup156
Restore156
Update157
Defaults157
Printer Status157
Advanced Settings158
Configuration Files158
Install Options158
Diagnostics159
Status159
Logs159
Audit Trail Log159
Status Log159
Alert Configuration160
Configure Alerts160
Ranged Alerts160
Io Port160
Assignment160
Test161
Message Select161
Printer Network162
Ethernet162
Multi-Head162
Serial162
Advanced162
System Information163
Overview163
Software Versions163
Hardware Versions163
User Interface164
Printer Connection164
Language & Keyboard164
Network164
Versions Information164
Initial Setup Wizard165
Control Unit169
Control Unit with Cooling Option169
Laser Unit with Scanner Head170
Options for Use171
F-Series Laser Marking System171
Performance Data171
Controller172
Power172
F-Series Laser Marking System173
Installation Dimensions174
Touchpanel180
Touchpanel Dimensions181
Shutter182
Checking Fans and Air Vents185
Control Unit Fans185
Cleaning the Lens185
Laser Protection Window186
General Cleaning187
Service: Replacement of Components187
Applications Without Shutter187
Applications with Shutter187
Fault Finding188
Status Messages and Suggested Actions189
System Status Messages189
Replacing the Lens205
Changing the Fuses206
Main Power Fuses F1 and F2206
Laser Power Supply Fuse, Label F3206
Fan Power Supply Fuse, Label F4 and F5207
Changing the Pc-Cmos Setup Battery208
High Voltage During Maintenance208
Status Leds209
Touchpanel Buffer Battery211
Fume Extraction System212
General Notes212
Recommended Routine Maintenance212
Daily212
Weekly212
Annual212
