INSTALLATION INSTRUCTIONS
EPT031055 Issue 2 September 2017 2-47
With Shutter
The fibre laser may be optionally equipped with a laser beam attenuator.
This mechanical shutter is part of the fibre laser safety concept. The shutter
is located between laser source and scan head and electrically connected
with the fibre laser controller box.
The shutter is intended for single product marking where the guard door is
frequently opened and closed between the prints. The graphic below

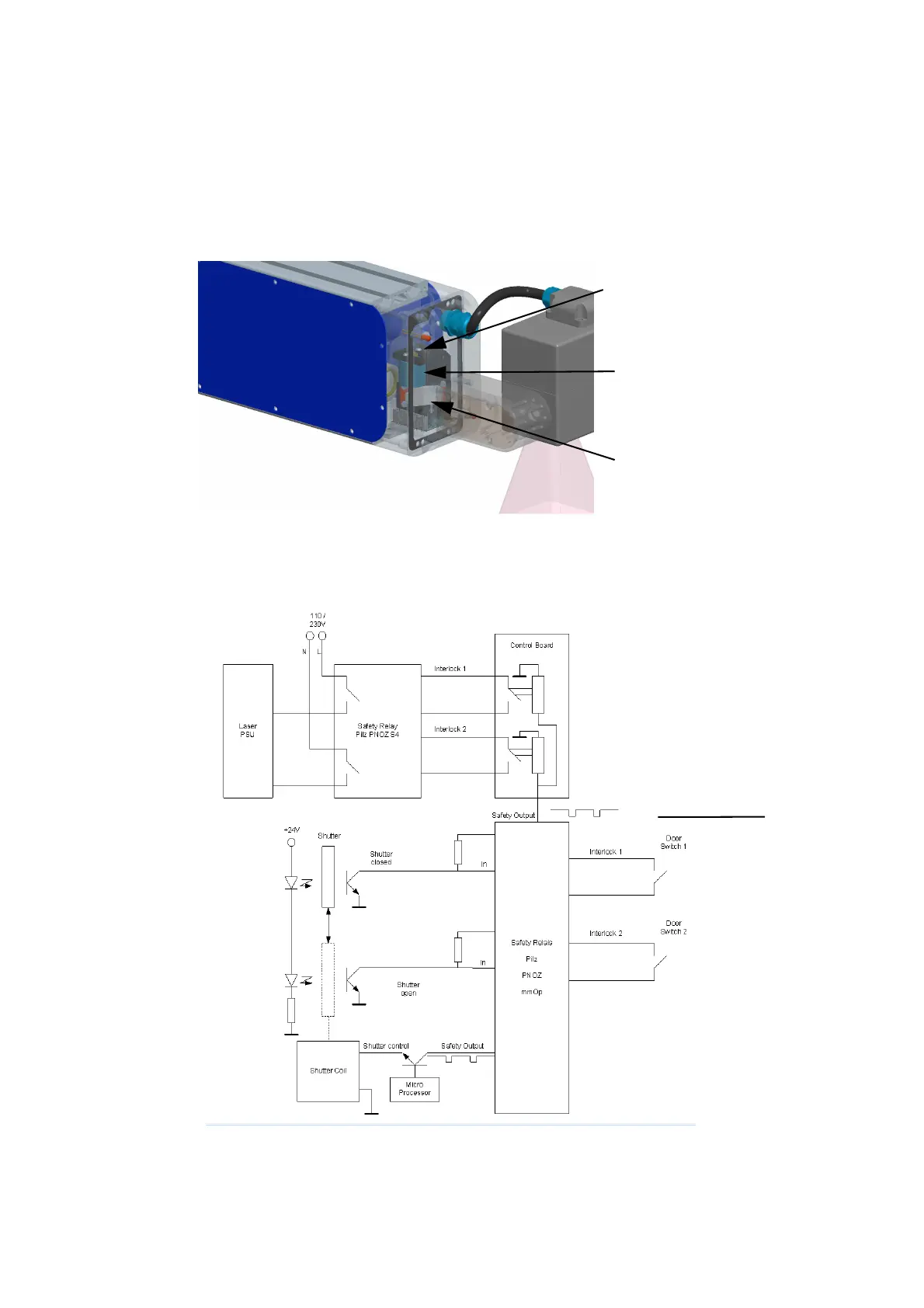

shows the components related with the safety function:
Control Board
Coil
Shutter Blade
BCP 7
Controller
Laser
Controller
F720i
