INSTALLATION INSTRUCTIONS
2-8 EPT031055 Issue 2 September 2017
Installing the Controller Cables
The fibre and the main cable from the are pre-assembled.
CAUTION: The fibre must never be disconnected from the
controller. This will damage the laser system!
• Connect X29 of the controller to X68 of the controller.
• Connect X24 of the controller to X24,2 of the controller.

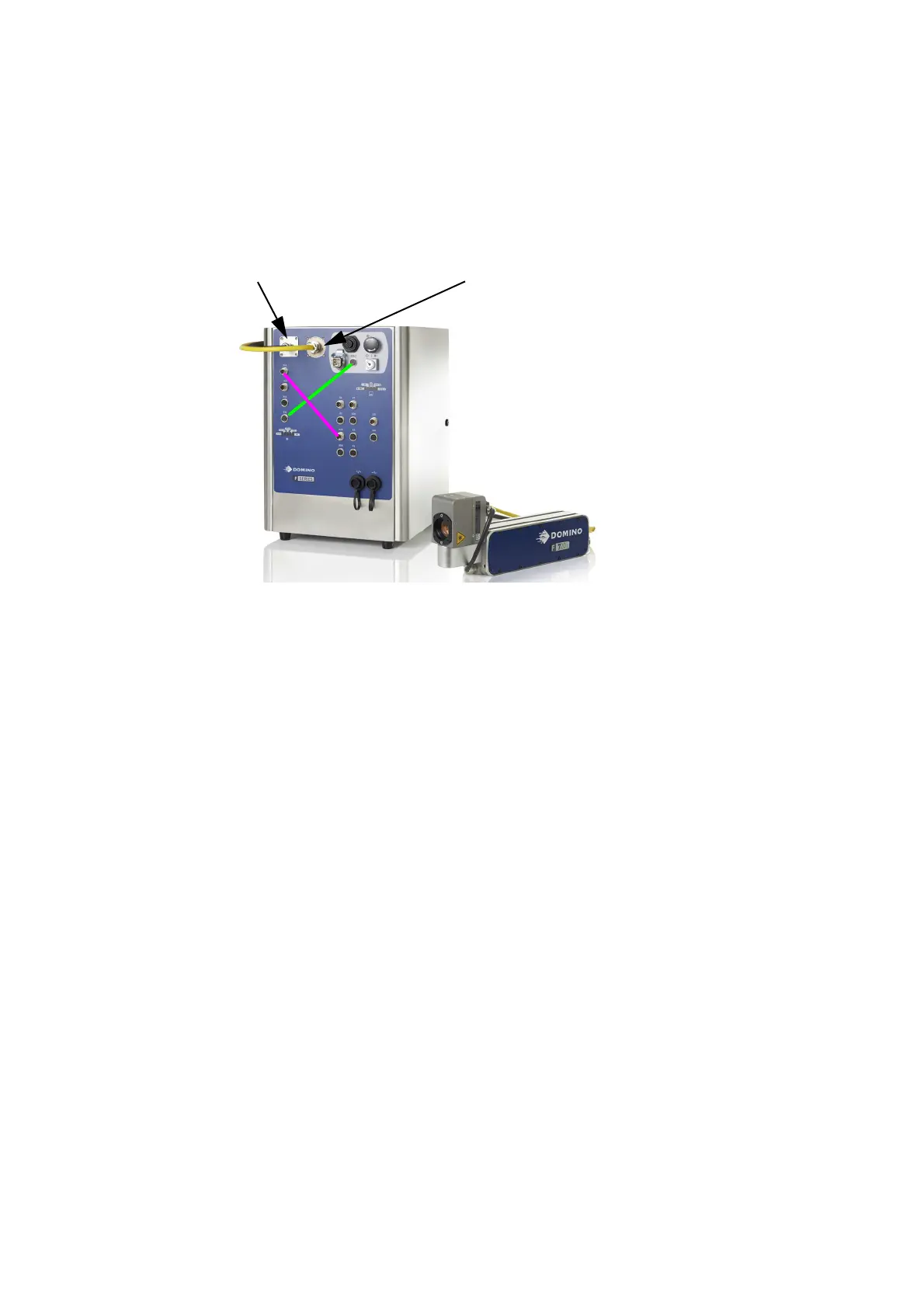

pre-assembled fibre to
laser
pre-assembled main
cable to laser
To Next Page
