INSTALLATION INSTRUCTIONS
2-24 EPT031055 Issue 2 September 2017
Changes that will not lower the CPI output:
• BUFFERDATA via Dynamark Interface
• conditional printing via user input
• counter increment via print start
• date/time text elements
Note that the changes via Dynamark Interface have in common that they
trigger MSG 26 (“data change complete”, see SETMSG) and that they can
be used as part of a transaction in order to process multiple changes as
one (see BEGINTRANS, EXECTRANS).
In order to activate this feature, it is necessary to set a flag in the
configuration.
By default, this flag is not set and the CPI output remains high even while
applying these changes.

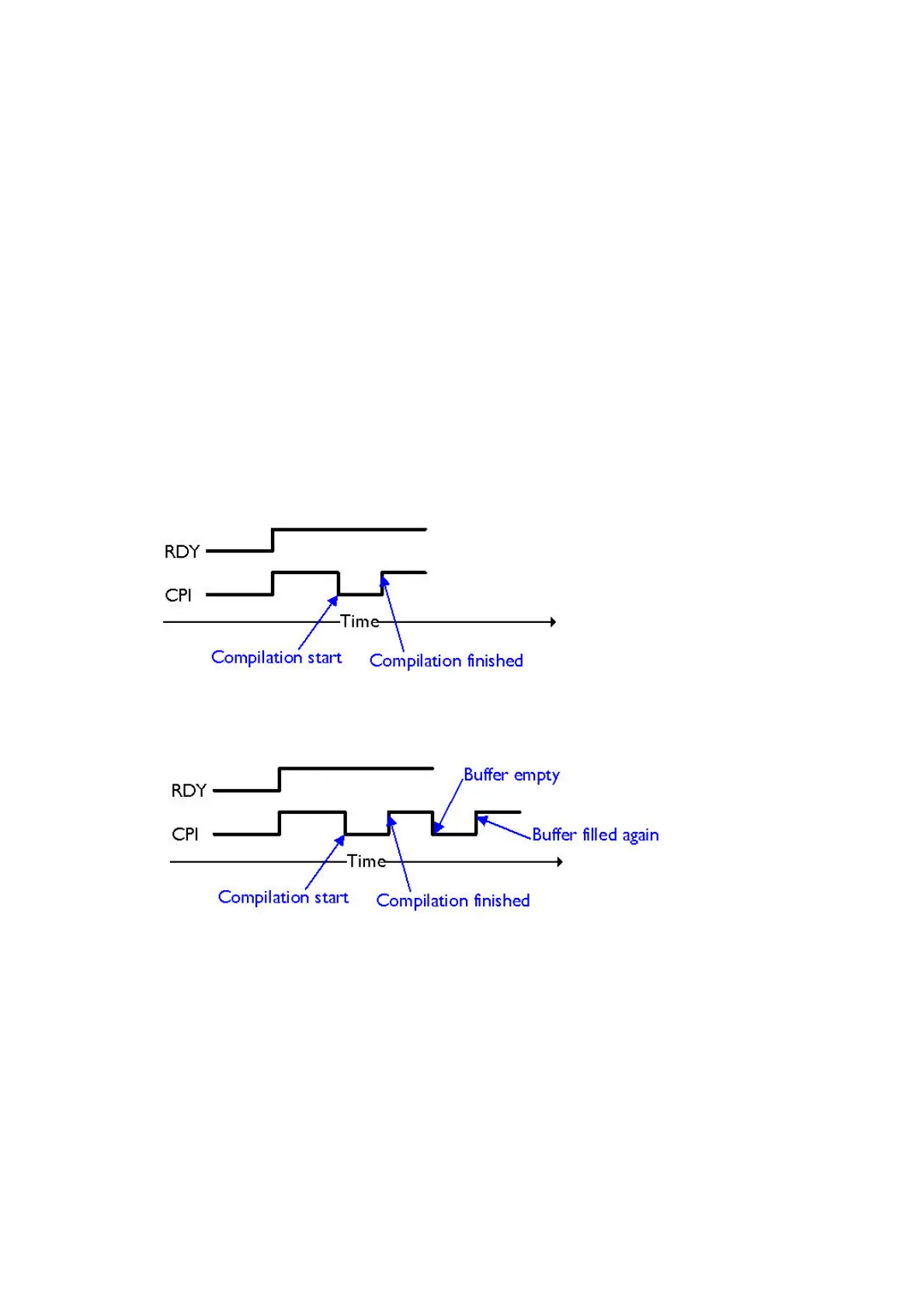

The CPI signal will now be low as long as compilation on the DSP is forced
by external modifications.
When using both options (Buffermode and “bLockDSPDataOnChange”
Flag=1) both will influence the CPI signal.
