INSTALLATION INSTRUCTIONS
EPT031055 Issue 2 September 2017 2-45

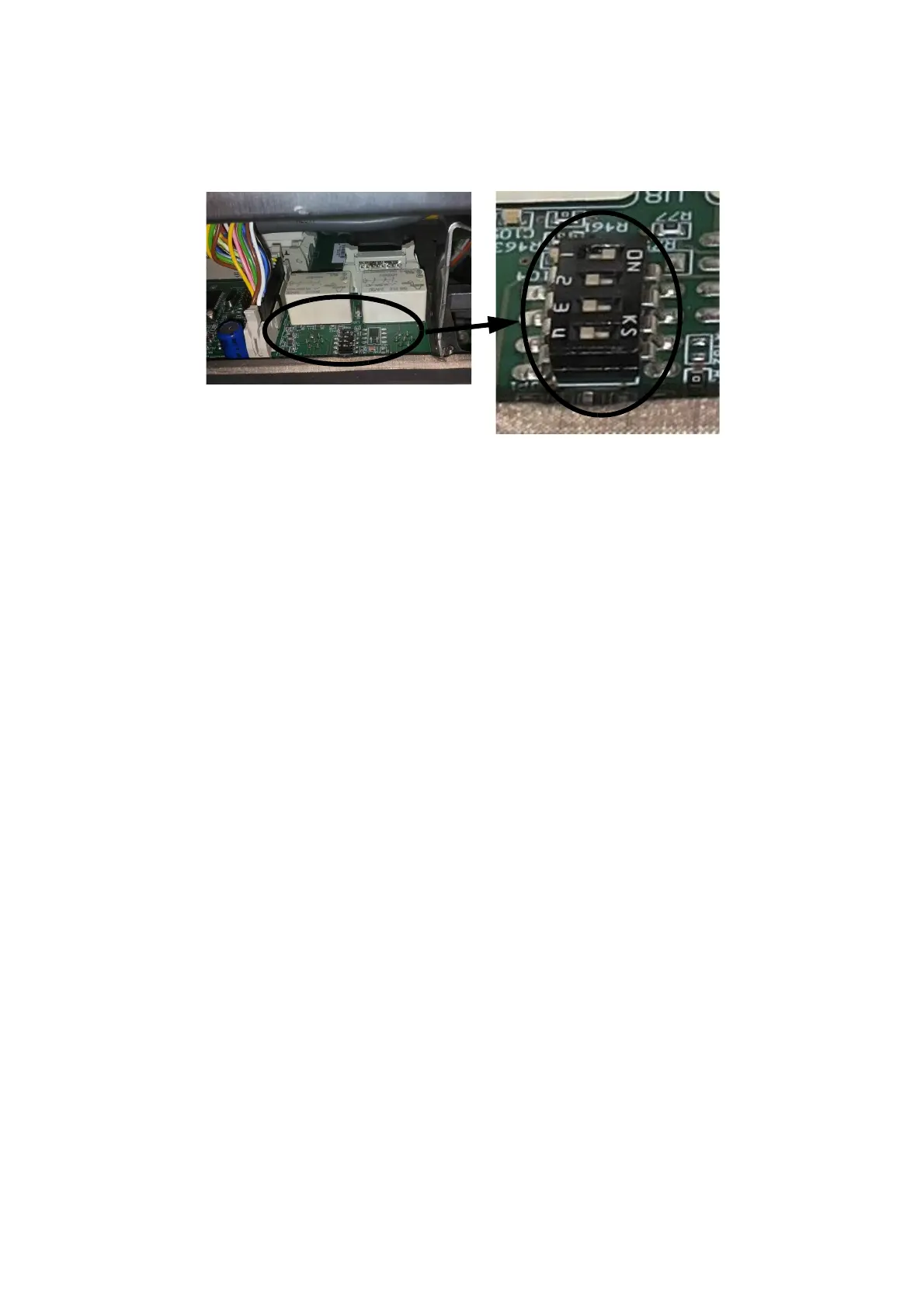

(5) The DIP switch to setup located right behind the front panel between
X68 and X69.
(6) DIP switch settings:
DIP 1 off: standard mode. The shutter remains open as long as the
safety circuit is closed.
DIP 1 on: static mode. The shutter remains open as long as the start
command is on.
DIP 2 off: standard mode. The output is on as long as the shutter is
open (active lock).
DIP 2 on: inverted mode. The output is on as long as the shutter is
closed (active unlock).
DIP 3 and 4 are reserved for future use.Re-connect all cables
(7) Connect the system to power
(8) Turn on the system
CAUTION: The warranty of the system is lost for all other
modifications other than adjusting the DIP switch!
