DoorKing 1830 Series User Manual

10
2358-065 Issued 7-19
Version E
A second communication
line can be added with same
wiring limitations shown in
examples if desired.
tracker
expansion
board
address 3
tracker
expansion
board
address 4
tracker
expansion
board
address 5
tracker
expansion
board
address 5
tracker
expansion
board
address 6
tracker
expansion
board
address 7
tracker
expansion
board
address 8
tracker
expansion
board
address 9
tracker
expansion
board
address 10
All boards are less than 2000 ft away from access control system.
Zone addresses can be used if desired.
250 ft 250 ft
Zone Addresses
200 ft
500 ft 600 ft 400 ft 400 ft
300 ft
400 ft
150 ft
450 ft
100 ft
access control system
tracker
expansion
board
address 3
tracker
expansion
board
address 5
tracker
expansion
board
address 5
relay 2/wiegand 2
relay 1/wiegand 1

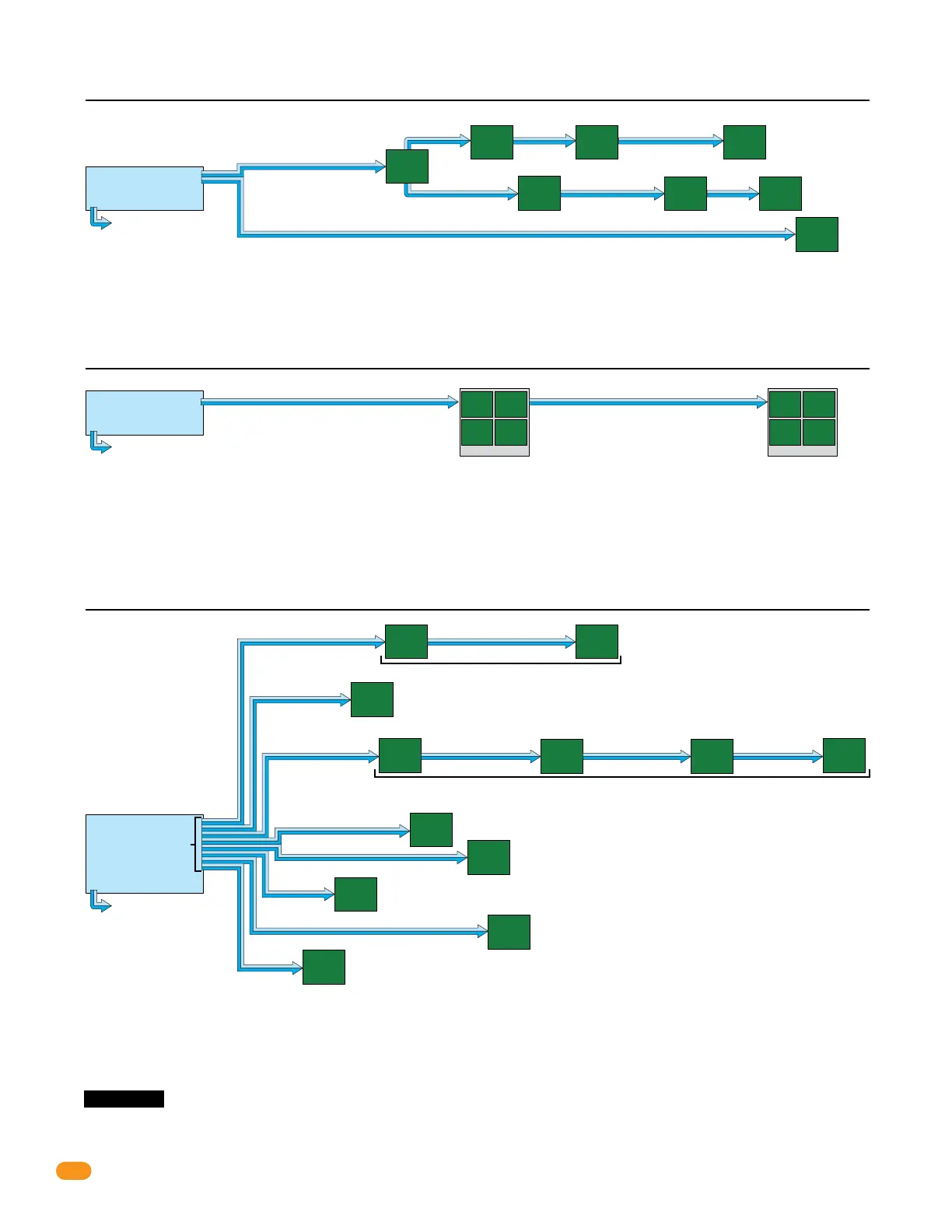

Example 5: 4000 ft total, ONLY one HARDwired communication line shown. 12 boards with “Zones” are connected to relay 2/wiegand 2.
Communication line to boards are connected
in parallel. Allows “teeing” of communication
cable for optimal cable routing.
Relay/Wiegand Note:
Relay 2/wiegand 2 MUST be connected to tracker
expansion board addresses 3 thru 10.
Relay 1/wiegand 1 connects to tracker expansion board
addresses 11 thru 18 if that many boards are desired.
Wiring More Than 8 Boards Note:
Use 6 conductor stranded with overall shield - 18 gauge.
ONLY use 18 gauge when wiring more than 8 boards.
DO NOT connect shield to 2358-010 board common.
DO NOT use twisted pair.
Zone Addresses
tracker
expansion
board
address 7
tracker
expansion
board
address 8
tracker
expansion
board
address 9
tracker
expansion
board
address 10
Quad Box
A second communication line can be added with same
wiring limitations shown in examples if desired.
farthest
board
2000 ft
away
farthest
board
1900 ft
away
access control system
relay 2/wiegand 2
relay 1/wiegand 1
Example 4: 2000 ft total, ONLY one HARDwired communication line shown. 8 boards are connected to relay 2/wiegand 2.
1000 ft
tracker
expansion
board
address 3
tracker
expansion
board
address 4
tracker
expansion
board
address 5
tracker
expansion
board
address 6
Quad Box
1000 ft
tracker
expansion
board
address 4
tracker
expansion
board
address 5
tracker
expansion
board
address 7
tracker
expansion
board
address 10
500 ft
500 ft
2000 ft
100 ft 100 ft
access control system
A second communication
line can be added with the
same wiring limitations shown in examples if desired.
relay 2/wiegand 2
relay 1/wiegand 1
tracker
expansion
board
address 6
farthest board
900 ft away
200 ft
100 ft
tracker
expansion
board
address 8
tracker
expansion
board
address 9
farthest
board
1600 ft
away
farthest
board
2000 ft
away
500 ft
tracker
expansion
board
address 3
Example 3: 4000 ft total, ONLY one HARDwired communication line shown. 8 boards are connected to relay 2/wiegand 2.
Communication line to boards are
connected in parallel. Allows “teeing”
of communication cable for optimal
cable routing.
Zone addresses can be used if desired.
IMPORTANT Wireless communication maximum distances between the access control system and tracker expansion
boards will vary from the HARDwire run distances illustrated above. See the instruction sheets in the wireless kits and the
Layout and Start-Up Procedure for the correct distances between the hardware when using wireless communication.
