DoorKing 4302 - External Loop Detector Wiring; External Reverse Loop Function; Automatic Exit Loop Function; External Loop Detector DIP-Switch Settings

4302-067-G-2-21
17
Diablo
Controls, Inc.
Stuck in traffic for over 37 years!
NC COM
RELAY
10 to 30 Volts
AC or DC
POWER DETECT
DSP-7
POWER LOOP
COM
+
NO
REMOVE CONNECTOR TO RESET
Shadow
Reverse
Revers
e
Automatic Exit
Secure Side
Inside Property
Non-Secure
Side
Outside Property

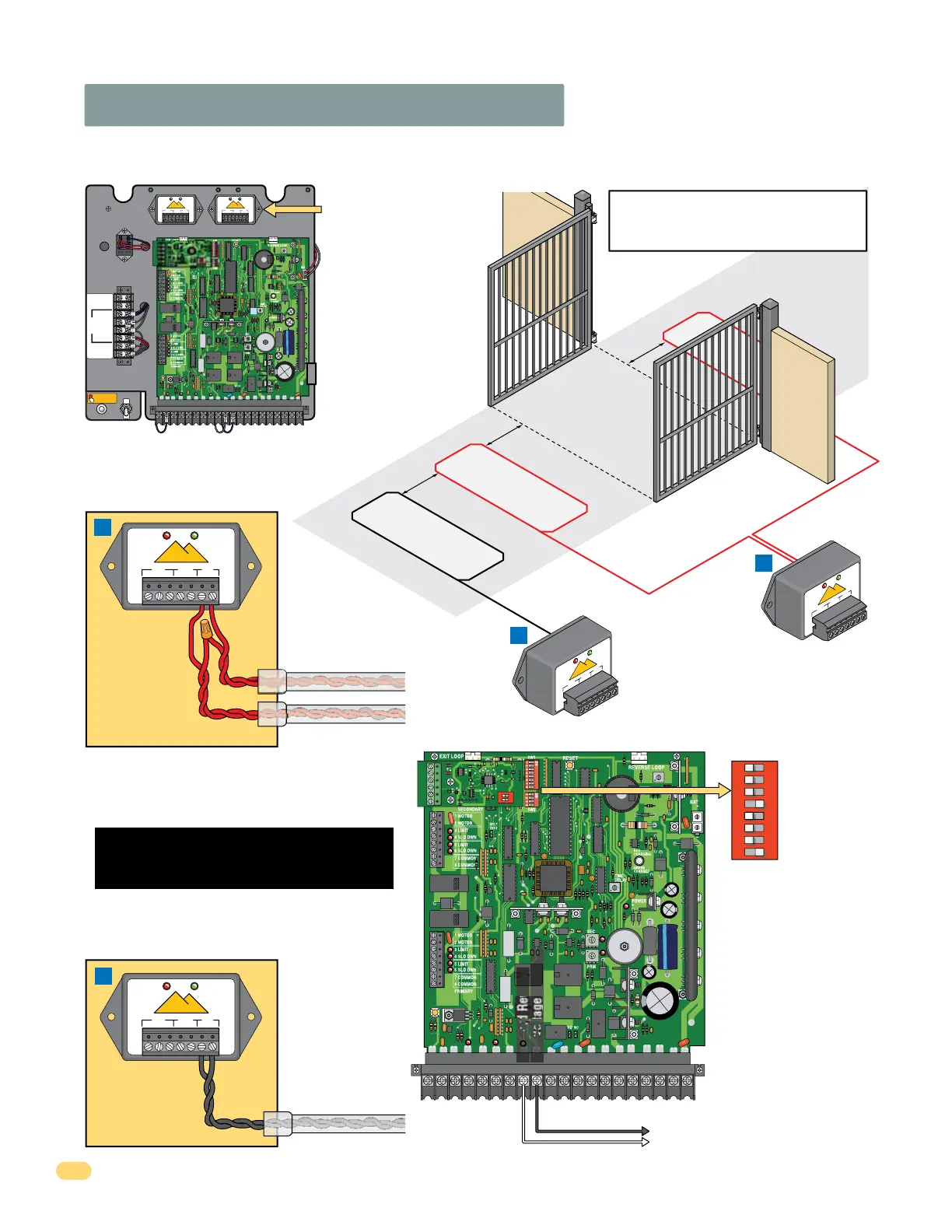

2.6 External Loop Detector Wiring
Automatic Exit Loop
Automatically opens the gate for exiting vehicles without
having to use a transmitter or key switch (Free exit).
12345
6
7
89
10 11 12
13
14 15
16 17 18 19
20
A
PVC conduit to
Control box.
B
Exit loop lead-in
wires are twisted
approx. 6 twists
per foot.
4302-018
SW 1, switch 5
is OFF.
Gate will
reverse when
obstruction is
encountered.
DIP-Switch Settings
SW 1
1
ON
2 3 4 5 6 7 8
Low Current Draw
Single Channel
External Exit
Loop Detector
Low Current Draw
SIngle Channel
External Reverse
Loop Detector
Circuit Board Terminal
To help protect the operator from accidentally closing on vehicles in the gate’s path, DoorKing highly recommends that loops and loop detectors
are used. A loop detection system will sense a vehicle like a metal detector and send a signal to the gate operator preventing the gate from
automatically opening or closing on a vehicle when it is in the gate’s path. DoorKing recommends that a licensed installer perform this work.
See the specific
loop detector
instruction sheet
and page 15 for
wiring.
See the specific
loop detector
instruction sheet
and page 15 for
wiring.
To external reverse loop detector.
Exit and Reverse Loops Note: Low current draw external
exit and reverse loop detectors can be used in place of the
plug-in exit and reverse loop detectors to maintain power
to these loops at all times.
ANY loop detector used needs a relay contact
time of AT LEAST 1 SECOND to bring circuit
board out of “idle time” and operate gate.
Shadow Loop Note:
A shadow loop can
NOT be wired to the
solar control box.
