DoorKing 4302 - SOLAR CONTROL BOX SPECIFICATIONS; Class of Operation and Gate Type; Circuit Board and Solar Panel Details; Optional Mounting Post Kit

4302-067-G-2-21
4
1234567891011121314151617181920
ON
OFF
PUSH TO OPERATE
technician use only
Solar NEG
Solar POS
24 V POS
24 V NEG
Relay COM
Relay N.O.
Full Open
Not Used
Not Used
B
12 V
18 Amp/Hr
Battery
12 V
18 Amp/Hr
Battery
FULL
OPEN
OB
CB
Close
Beam
Open
Beam
GND
GND
SW1
1
ON
2
1476-010
PUS
H
te
c
DoorKing, Inc. reserves the right to make changes in the products described in this manual without notice and without obligation of DoorKing, Inc. to notify any persons
of any such revisions or changes. Additionally, DoorKing, Inc. makes no representations or warranties with respect to this manual. This manual is copyrighted, all rights
reserved. No portion of this manual may be copied, reproduced, translated, or reduced to any electronic medium without prior written consent from DoorKing, Inc.
8.25”13.25”
21.25”
Optional
Mounting
Post Kit
for Control
Box
P/N 1000-045
33”
Class of Operation Models 6004 and 6400 - UL325 Class I • 6006 UL325 Class I and II
Type of Gate Residential Vehicular Automated Gates Only
Voltage / Phase 24 Volt Solar Input Power – 24 VDC Output Power to Gate Operators
Battery Capacity Two - 12 Volt 18 Amp/Hour Dry Cell OR Two - 12 Volt 35 Amp/Hour Dry Cell
Solar Panel Voltage 24 Volt 10 Watt for 18 Amp/Hour Dry Cells OR 24 Volt 20 Watt for 35 Amp/Hour Dry Cells
Circuit Board Model 4302-018 revision A or higher.
Inherent Entrapment Protection Device Inherent Reverse Sensor System (Type A)
External Entrapment Protection Device Inputs Monitored input connection for Non-contact Sensor - Photo Sensor (Type B1)
Monitored input connection for Contact Sensor - Reversing Edge (Type B2)
18 Amp/Hr Control Box
P/N 4302-114
No Batteries Control Box
P/N 4302-113
35 Amp/Hr Control Box
P/N 4302-115

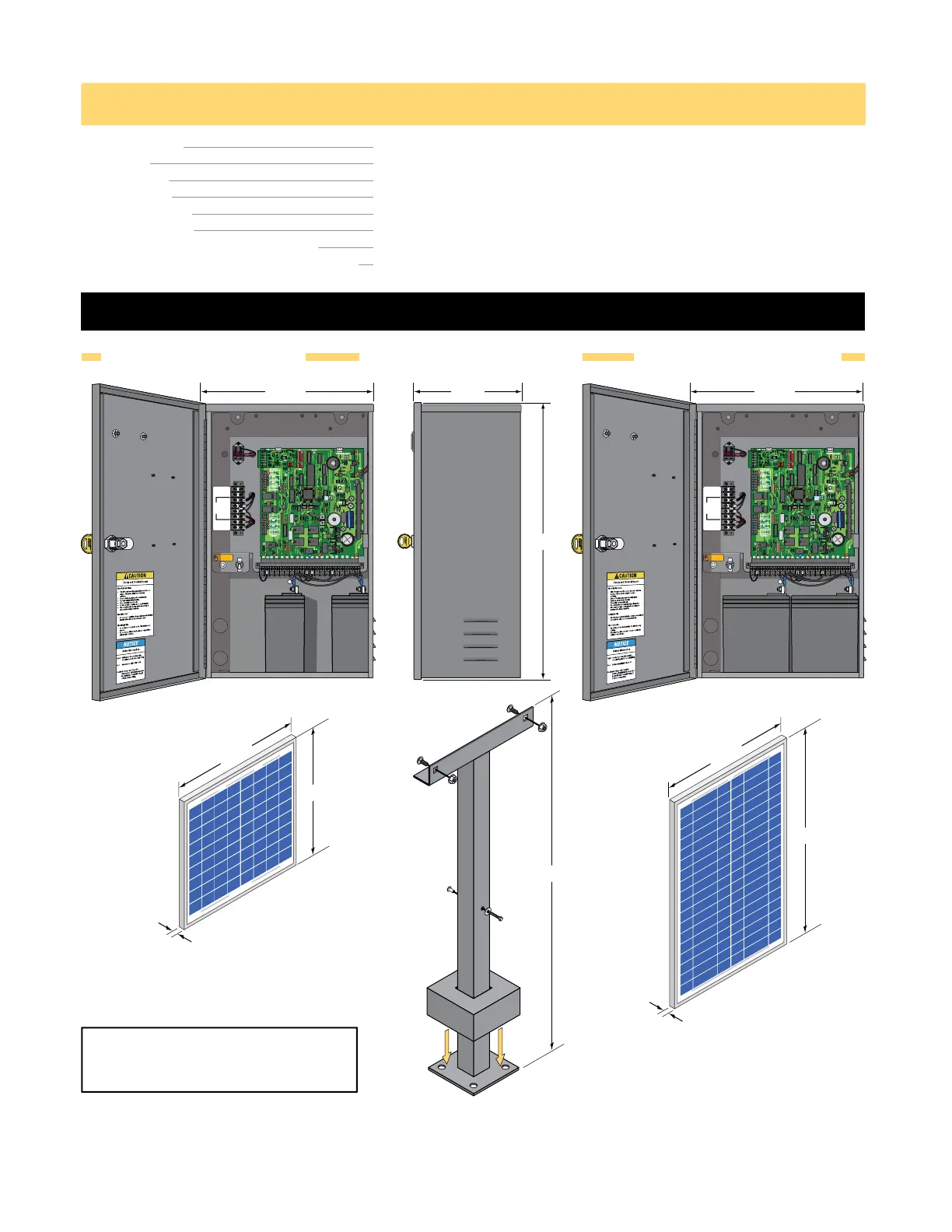

SOLAR CONTROL BOX SPECIFICATIONS
13.25”
Optional 24 Volt 10 Watt
Solar Panel only for
18 Amp/Hr Batteries
P/N 2000-077
Optional 24 Volt 20 Watt
Solar Panel only for
35 Amp/Hr Batteries
P/N 2000-076
21.8”
.98”
13.8”
11.8”
.98”
13.8”
Entrapment Protection must be provided for the gate system where the risk of entrapment or obstruction exists.
The operator will not run without one or more monitored type B1 or B2 entrapment protection devices in EACH entrapment area.
Type of wiring to be used on ALL external devices:
A) Type CL2, CL2P, CL2R, or CL2X.
B) Other cable with equivalent or better electrical,
mechanical, and flammability ratings.
1234567891011121314151617181920
ON
OFF
PUSH TO OPERATE
technician use only
Solar NEG
Solar POS
24 V POS
24 V NEG
Relay COM
Relay N.O.
Full Open
Not Used
Not Used
B
FULL
OPEN
OB
CB
Close
Beam
Open
Beam
GND
GND
SW1
1
ON
2
1476-010
PUS
H
te
c
12 V
35 Amp/Hr
Battery
12 V
35 Amp/Hr
Battery
