3.3 Limit Sensors Adjustment -
Select your specific operator
The limit sensors on the operator MUST be adjusted to control the travel of the gate and to precisely set the full open and full
closed position of the gate. Use ONLY the limit sensor instructions for your SPECIFIC operator type (6004, 6006 or 6400).
This feature is especially useful in applications where the gate opens partially, such as on a curved driveway.

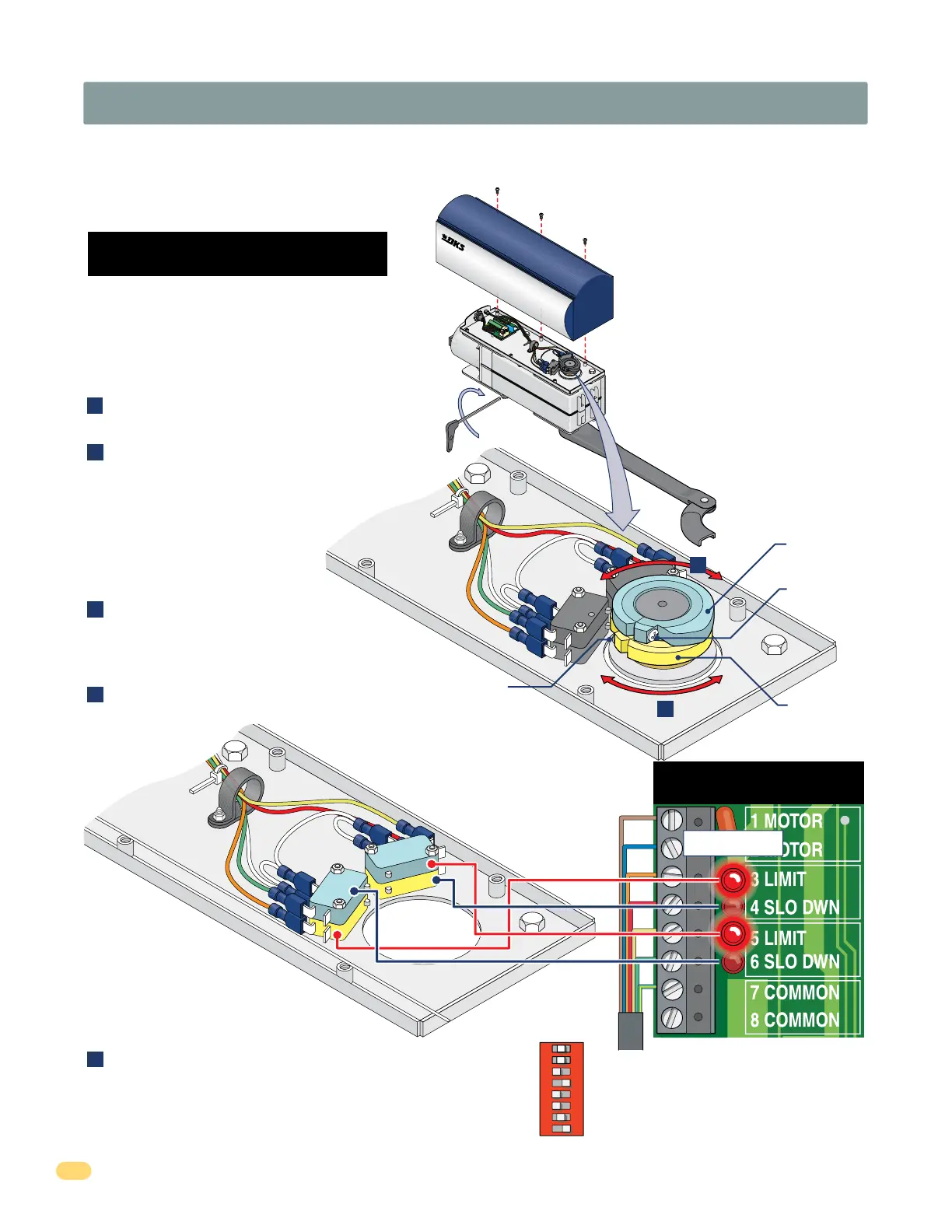

6004 Limit Switches ONLY
Limit
Slow
Down
Slow Down
Limit
Re-lock operator with
release tool and test the
gate stopping positions.
Re-adjust if necessary.
Adjust the Secondary operator limit rings if dual
operators have been installed. DIP-switch SW 1,
switch 2 controls secondary operator opening
direction. DIP-switch SW 1, switch 7 MUST be
ON when using dual operators. (See page 20)
Re-install the operator cover.
With operator cover removed, un-lock operator
with release tool to release arm.
A
B
C
D
E
Note: 3 and 5 limit LEDs can be
Open or Close limits depending
on DIP-switch SW 1, switch 1
and 2 settings (See page 19)
SW 1
Primary Operator
Secondary Operator
Single or Dual Operators
1
ON
2 3 4 5 6 7 8
Power to the circuit board must be ON when
adjusting the limit sensors.
Limit LEDs
Top Limit
Ring
Bottom
Limit Ring
B
B
Adjustment
Screw
Adjustment
Screw
Manually move the gate to the desired open
or closed position. Loosen adjustment screw
and slowly spin the appropriate limit ring
until the corresponding LIMIT LED on the
circuit board lights up, then tighten screw.
Manually move the gate to other
position. Repeat process with
the other limit ring.
Unlock
Release
Tool
4 Slow Down
6 Slow Down
5 Limit
3 Limit
Limit Switch LEDs
Limit Rings
DOORK
ING
Cover
Limit Switch
Wire Colors
3 Limit - Orange (Bottom)
4 Slo Dwn - Red (Bottom)
5 Limit - Yellow (Top)
6 Slo Dwn - Green (Top)
(White wires are Common)
Electronic Pallet
Thru-Bolt 13 mm
Thru-Bolt
13
mm
Limit Switch Adjustment Note:
Two thru-bolts 13 mm can be
loosened to allow the electronic
pallet to be moved around a little.
Make sure ALL 4 limit switches
make good contact with the
2 limit rings.
If factory wired jumpers are installed on
operator terminals, they must be
removed or operators will not function.
The operator MUST OPEN GATE upon initial power up
and OPEN command.
If the operator closes gate after giving first open
command, shut off power and reverse DIP-switch SW1,
switch 1 setting otherwise operator will NOT function
correctly.
7-Wire
Operator Cable
