4.4 Accessory Items
UL 325 Monitored Entrapment Protection Devices available for the Solar Control Boxes.
Type B2 Contact Sensors (Reversing Edge)
DoorKing 8080 Series Sensing Edges
Miller Edge Sensing Edges - all models with a T2 (resistive) termination.
Miller Edge wireless monitored transmitter/receiver kit model RB-G-K10
ASO GMBH Sentir GF Series sensing edges
Type B1 Non-contact Sensors (Photo Cell)
DoorKing Model 8080-057 Retro-Reflective Photocell
Miller Edge Reflective-Guard Model RG
Miller Edge Prime-Guard Model PG
EMX Industries Model IRB-MON
EMX Industries Model IRB-RET
Omron Model E3K-R10K4
Seco-Larm Model E-936-S45RRGQ
Seco-Larm Model E-960-D90GQ
Monitored Expansion Kit
Miller Edge Multi-Input Module Model MIM-62
Accessory items available for the Solar Control Boxes.
Low Current Draw External Loop Detector - Detectors are solar friendly and mount into solar control box.
Single channel detector - P/N 9402-050
24 Volt 10 Watt Solar Panel. P/N 2000-077. One (1) panel required for the 12 Volt - 18 Amp/Hr batteries.
24 Volt 20 Watt Solar Panel. P/N 2000-076. One (1) panel required for the 12 Volt - 35 Amp/Hr batteries.
12 Volt 18 Amp Hour Battery. P/N 1801-004. Two (2) required.
12 Volt 35 Amp Hour Battery. P/N 1801-005. Two (2) required.
Coaxial Cable Antenna Kit - External antenna with mounting bracket and
15 ft of coaxial cable. P/N 1514-073
DKS 8040 Low Current Draw Radio Receiver and Antenna - Operates at
318 MHz and MUST be used with either the DoorKing MicroPlus
®
OR
MicroClik
®
transmitters. P/N 8040-080
DKS Plug-In Low Current Draw Loop Detector - Detector plug directly
into REVERSE LOOP PORT on circuit board simplifying wiring.
Single channel detector - P/N 9416-010
3
/
4”
Knockouts
Cov
er
Flexible
Conduit
(not supplied)
Mounting Holes
M
o
u
ntin
g
Hole
Mounting
Post
3/4
” Knockout
s
Mount to
Co
n
crete

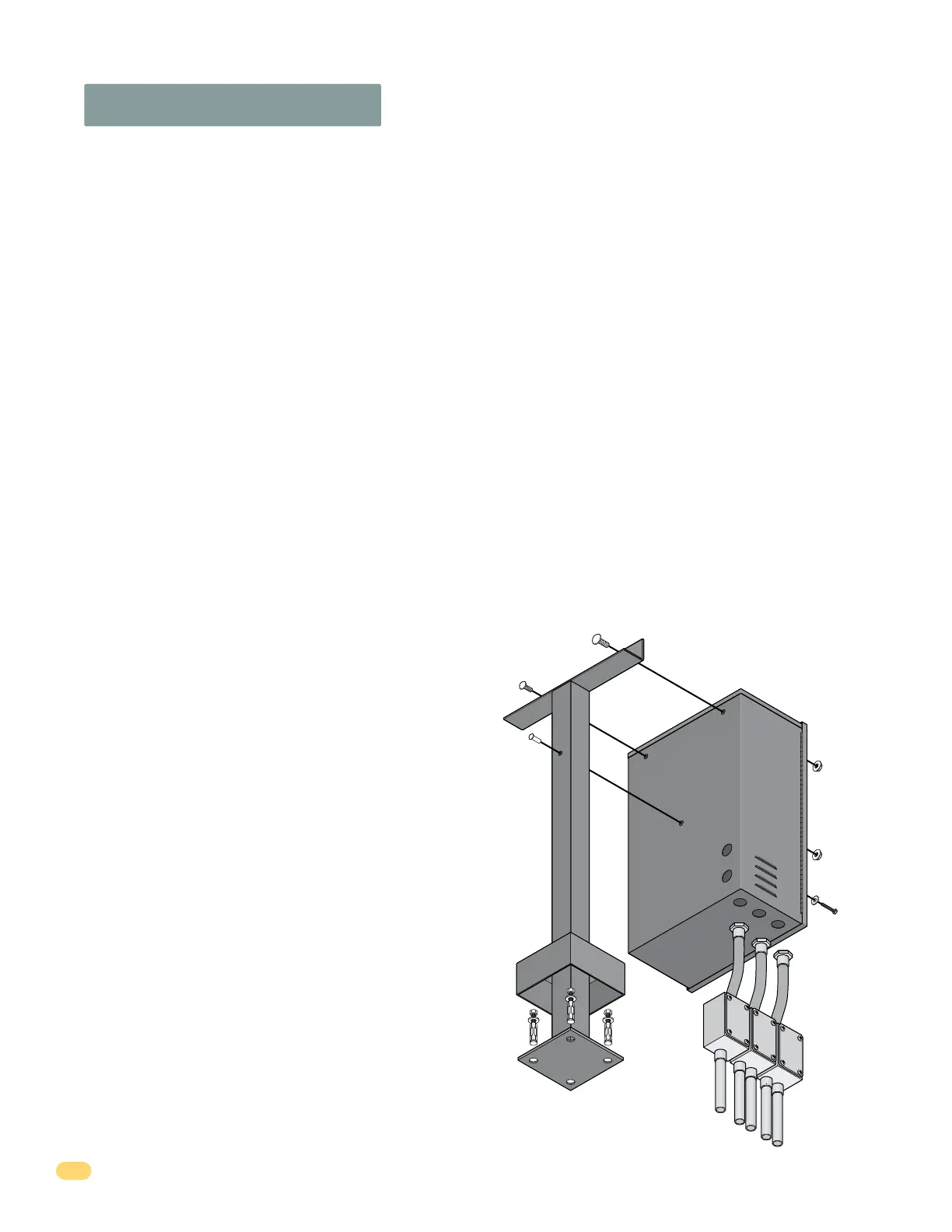

To attach post to concrete, DoorKing
recommends four (4) 3/8” x 3” sleeve
anchors (not supplied). Do Not mount
post on asphalt.
Conduit configuration (not supplied).
Solar Control
Box
Not Supplied
Mounting Post Kit for Solar Control Box. Attaches to concrete. P/N 100-045.
