4302-067-G-2-21
3

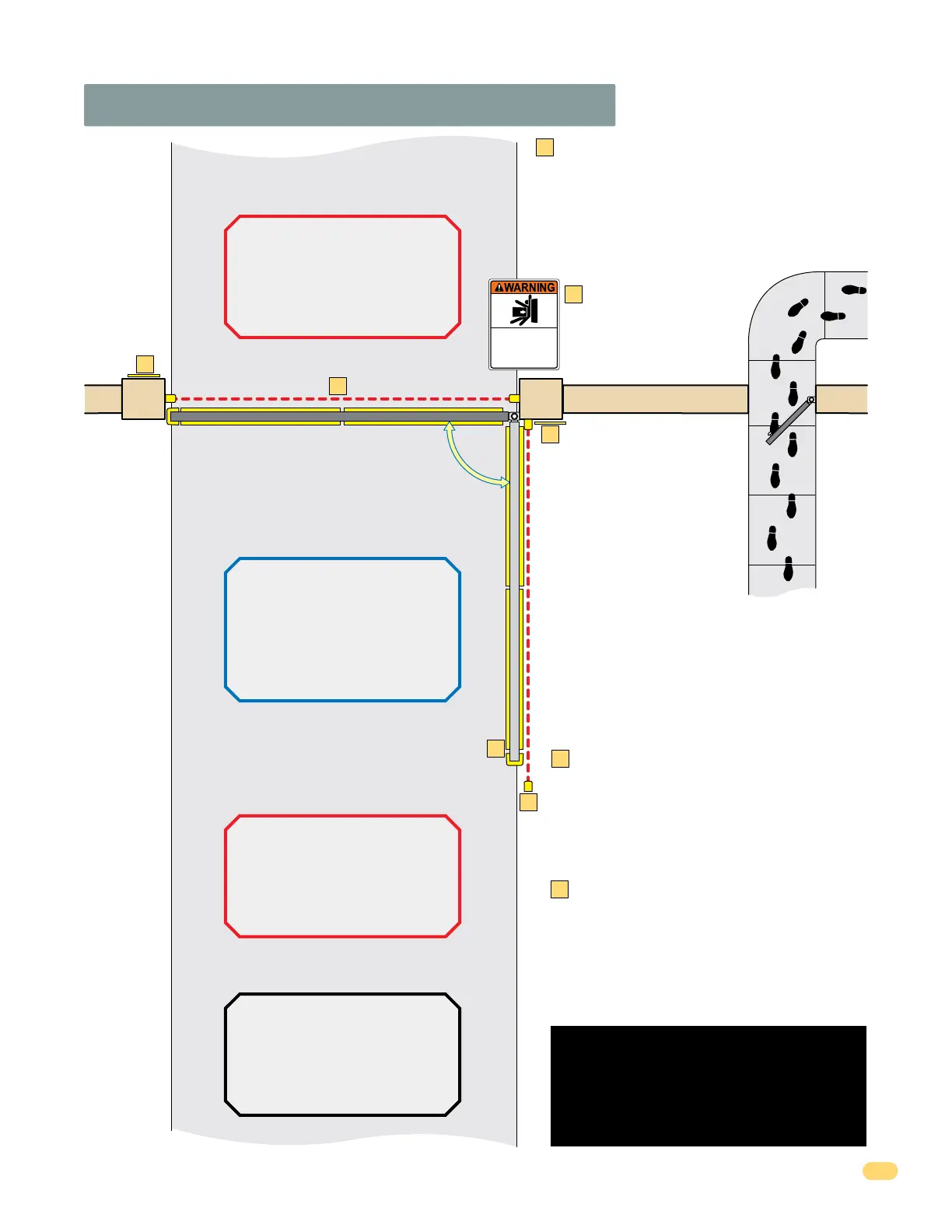

Swing Gate Requirements Continued
Warning Signs
E
Permanently mounted and
easily visible from either
side of the gate.
D
F
E
E
Separate
Pedestrian
Walkway
Located so pedestrians
cannot come in contact
with the vehicular gate.
D
F
Minimizes the potential of the gate closing on
vehicular or other traffic that loops cannot sense.
Monitored device helps protect against entrapment
when needed. See pages 12 & 13 for information.
Minimizes the potential of the gate opening on
vehicular or other traffic that loops cannot sense.
Monitored device helps protect against entrapment
when needed.
Minimizes the potential of the gate striking vehicular
or other traffic that loops cannot sense. Monitored
device helps protect against entrapment when
needed. Contact sensor may be necessary on
bottom of gate. See previous page and page 14.
G
G
Monitored Contact
OPEN/CLOSE Sensor (Type B2)
Reverse Loop
Shadow Loop
Automatic Exit Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
Reverse Loop
Minimizes the potential of the gate
closing when a vehicle is present.
Number and placement of loops is
dependent on the application.
(Optional) will provide an open
command to the gate operator
when a vehicle is exiting the
property.
Provides a hold open command to
the operator only if the gate is at
the full open position.
Not available for this operator.
Moving Gate Can Cause
Serious Injury or Death
KEEP CLEAR! Gate may move at any time
without prior warning.
Do not let children operate the gate or play
in the gate area.
This entrance is for vehicles only.
Pedestrians must use separate entrance.
Entrapment Protection must be provided for the
gate system where the risk of entrapment or
obstruction exists.
The operator will NOT run without one or more
monitored type B1 or B2 entrapment protection
devices in EACH ENTRAPMENT AREA.
Monitored Non-contact
OPENING Sensor (Type B1)
Monitored Non-contact
CLOSING Sensor (Type B1)
To Next Page
