Operation Section
-74-

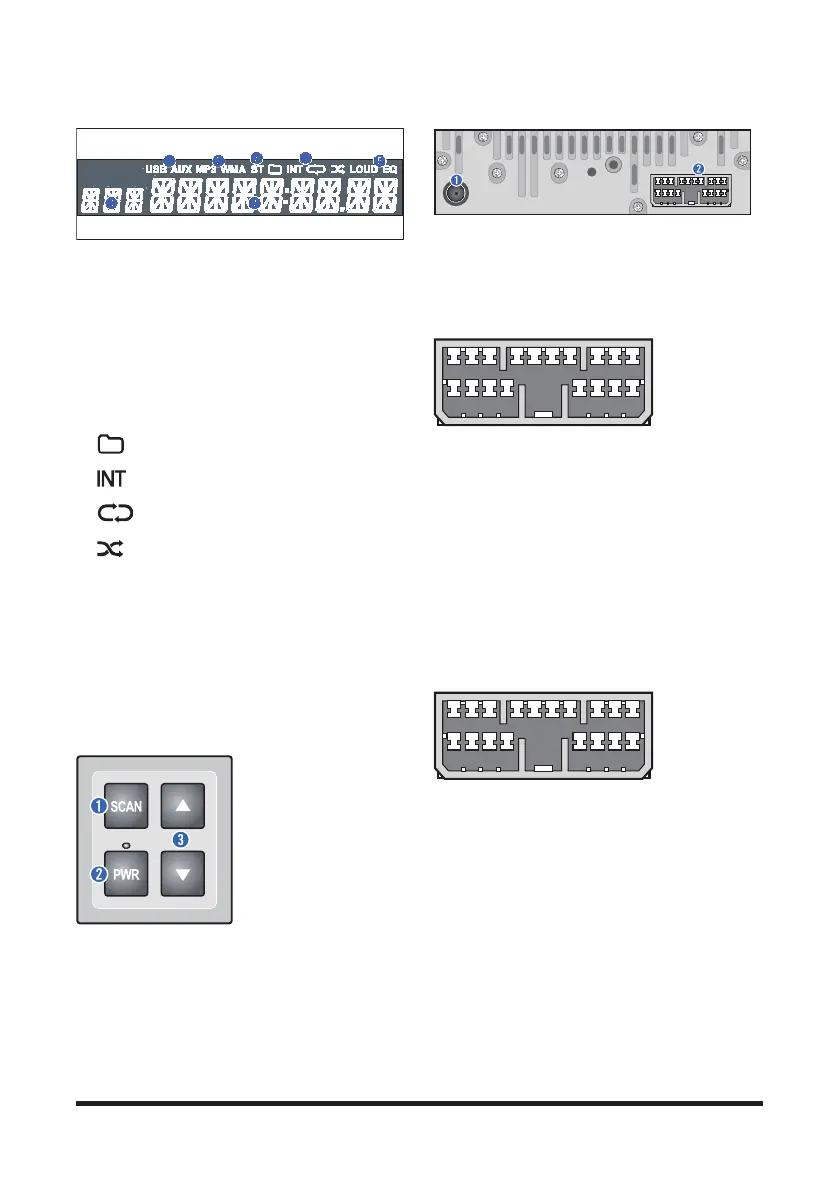

Display window
1. USB/AUX indicators: When the External Device
is connected, indicator is lights up.
2. MP3/WMA indicators: When the Audio Stream is
detected, indicator is lights up.
3. Stereo [ST] indicator for FM stereo station:
When a stereo Broadcast is received, indicator is
lights up.
4. Playback mode indicators for USB mode
: Folder mode
: Intro playback
: Repeat playback
: Random playback
5. LOUD/EQ indicators for sound effect
LOUD: Loudness mode on
EQ: EQ mode on
6. Multi-function display area for showing the
information
Wired remote controller
1. SCAN button: In Radio mode, tune up the
frequency(press): find a station (press and hold).
2. POWER [PWR] button: Turn on the power or
mute on/off(press): turn off the power (press and
hold).
3. Volume [▲/▼] buttons: Adjust the volume.
Rear view/Connectors
1. Antenna jack: To plug the FM antenna cable.
2. I/0 connector: To plug the 1/0 cable.
<ARA-5080WF: 18 Pin>
1. Front R (+)
2. Rear R (+)
3. illumination (+)
4. ACC (+)
5. Battery (B+)
6. N.C
7. Rear L (+)
8. Front L (+)
9. Front R (-)
10. Rear R (-)
11. N.C/illumination (-)
12. N.C
13. REM GND
14. GND
15. 5V Output
16. REM Data
17. Rear L (-)
18. Front (-)
<ARA-5081WF: 18 Pin>
1. Tel Mute
2. Rear R (+)
3. illumination (+)
4. ACC (+)
5. Battery (B+)
6. DMB GND
7. Rear L (+)
8. DMB L-CH
9. H/F GND
10. Rear R (-)
11. DMB Det
12. DMB Mute
13. REM GND
14. GND
15. 5V Output
16. REM Data
17. Rear L (-)
18. DMB R-CH
14
12 15 18911
58
14
12 15 18911
58
14
12 15 18911
58
