G424F(FE) Service Manual Chapter 5. Engine Management System (EMS) 171

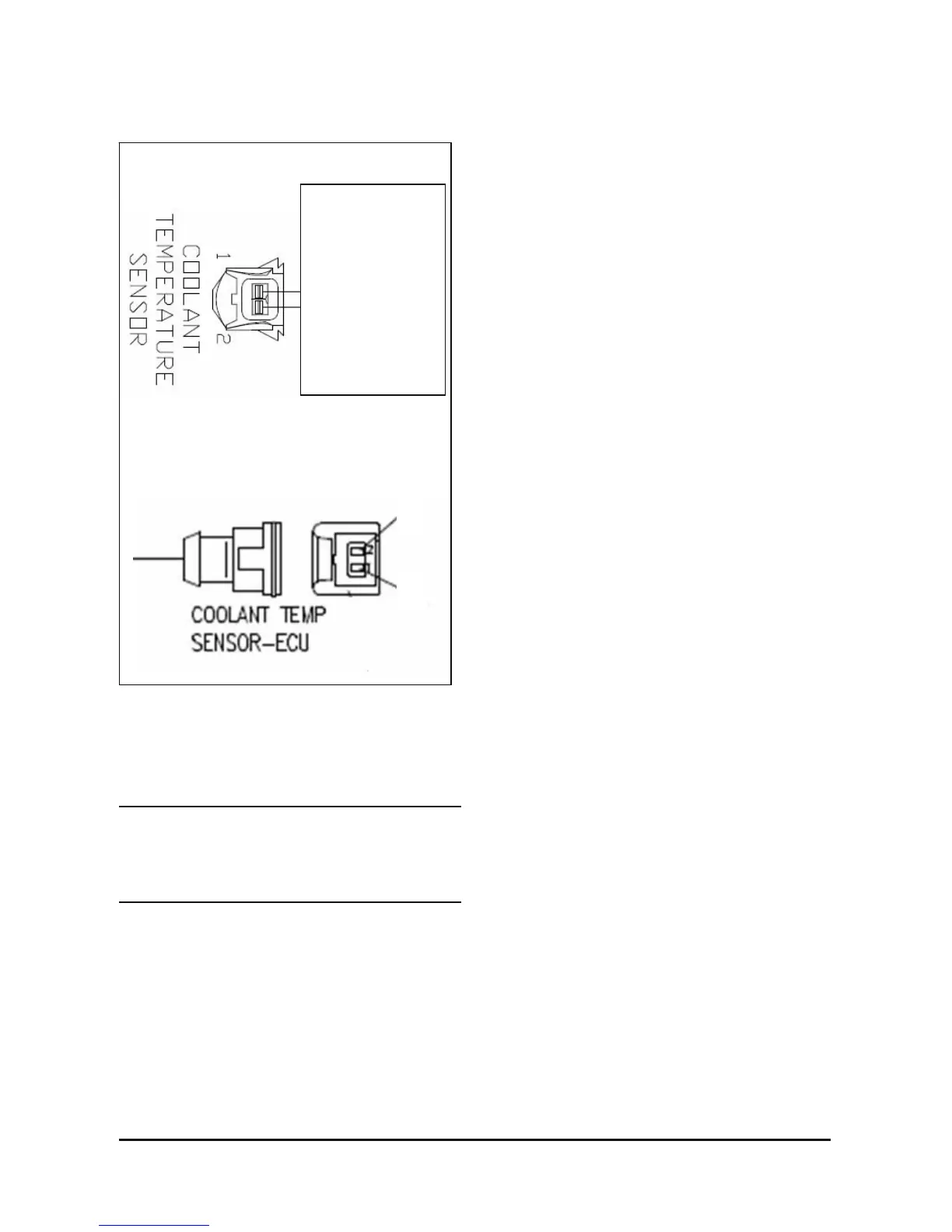

Schematic Diagram
[CIRCUIT DIAGRAM]
[HARNESS CONNECTORS]
Installation
1. Install engine coolant temperature sensor and
tighten it to specified torque.
Tightning torque
Engine coolant temperature sensor "
15~20Nm (150~200 kg.cm, 11~15 lb.ft)
2. Connect the harness connector securely.
ECM
1
B15_ECT_SIGNAL
B1_GND
2
1
2
To Next Page
