G424F(FE) Service Manual 281 Appendix
MotoView Display Screens
Service Screen Tab
The first screen displayed when connecting to the SECM-48 is the Main Service Screen. The screen format is
designed to give the technician a quick reference to the state of the MI-07 system and the engine. Main
sections of this screen include the Engine category, Faults, Fault States, AFR Control, Sensors, Throttle,
Accelerator Pedal, and Ignition.

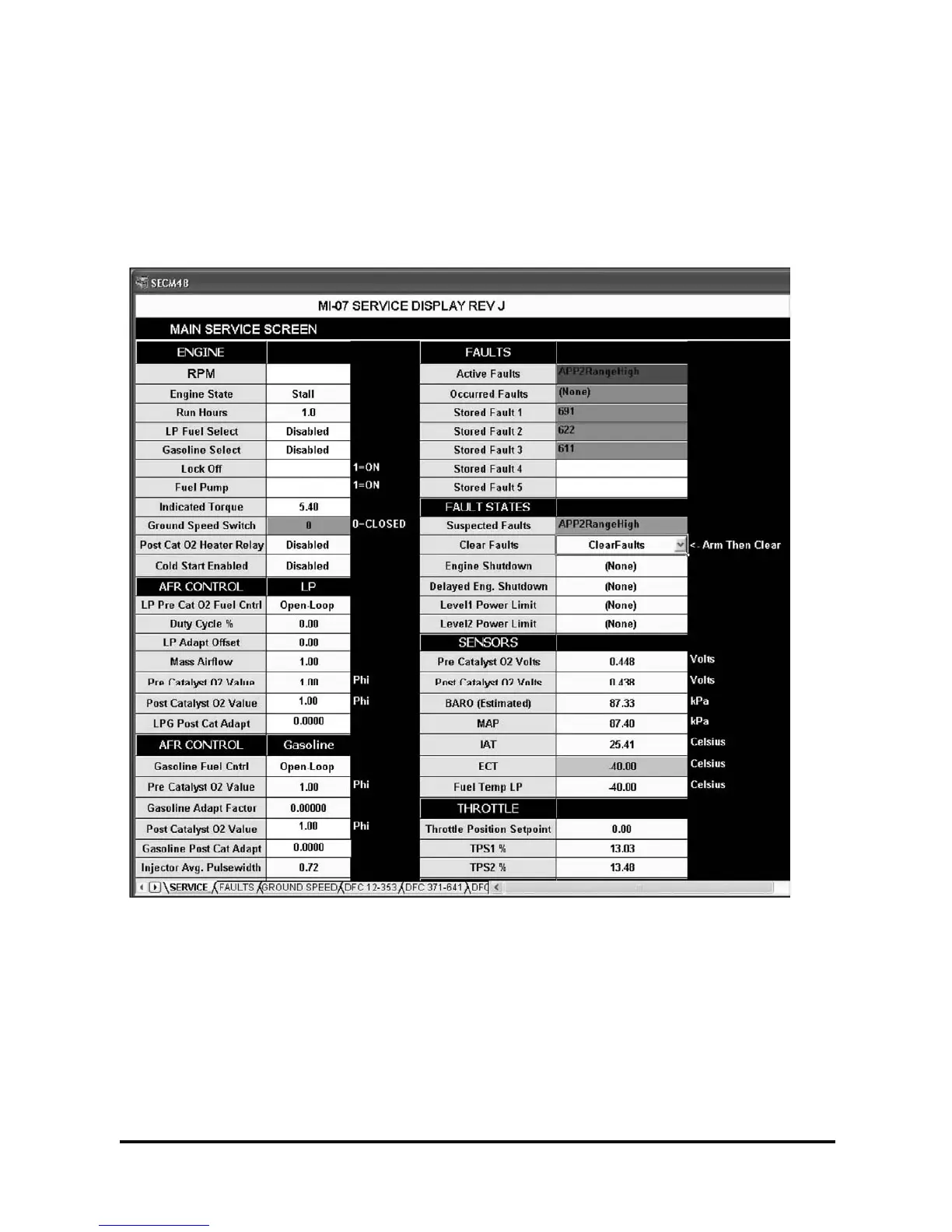

Figure 6 Main Service Screen
Engine
This category displays the engine RPM, one of three engine states (Stall, Crank, Run) and the selected fuel
type. Engine run hours are also displayed in this category directly below the engine state. If the LPG fuel lock
off or liquid fuel pump is active the adjacent data box will display a “1” meaning the device is on and the data
box will turn green. Brief parameter notes are listed to the right of the parameter filed throughout the display
screens. The indicated Torque parameter will inform you as to the amount of load placed on the engine and
the Ground Speed Switch parameter displays the switch on or off, again the box will turn green if the switch is
closed. The engine category also displays the status of the post O2 sensor heater replay and the cold start
circuit.
