G424F(FE) Service Manual Chapter 3. Engine Mechanical System 51
Timing Belt Tensioner
Removal
Remove or disconnect
1. Timing belt; see instructions under “Timing Belt –
Removal”, in this section.
2. Timing belt Tensioner bolt, in the oil pump case,
with a 13-mm socket wrench and handle.
3. Timing belt Tensioner.
Install or connect
1. Tensioner in the oil pump case.

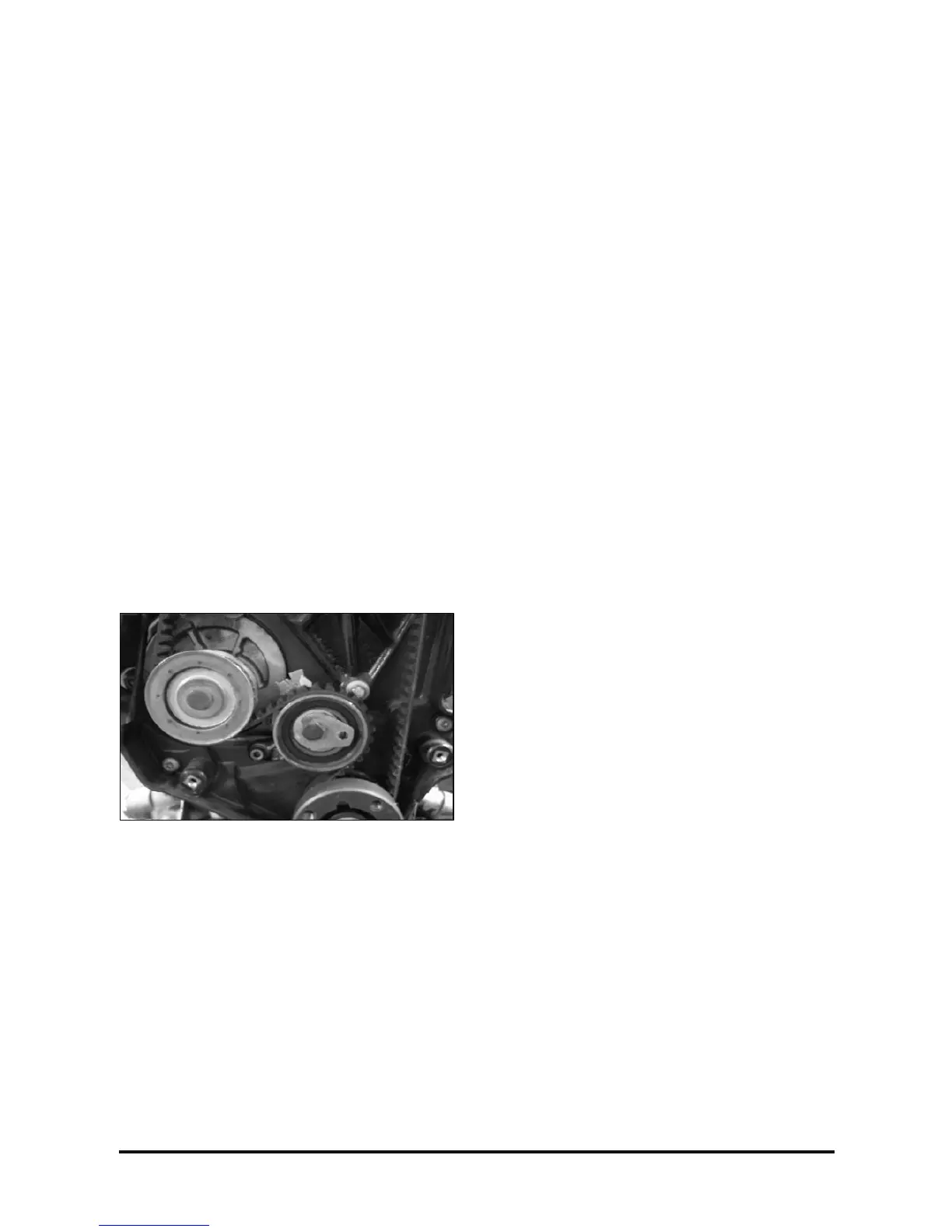

Important
• The lug (1) in the Tensioner base should be
lodged in the hole (2) of the oil pump case.
2. Tensioner attaching bolt, without tightening.
3. Timing belt; see “Timing Belt – Installation”, in this
section.
