Doosan G424FE - Appendix; Service Tool Software (Motoview); Introduction

G424F(FE) Service Manual 279 Appendix
Appendix
Service Tool Software
(MotoView)
Introduction
The MI-07 Service Tool is a graphic interface to the
SECM (Small Engine Control Module) and is made
up of several screens to aid the technician in system
diagnostics using a personal computer. The
software application that is used to connect to the
SECM is MotoView and is described in the next
section. Once MotoView is connected to the SECM
through the CAN cable a display file is opened
(MI_07RevJ.dis) to display the available diagnostic
features. The use of these features is described in
Appendix.

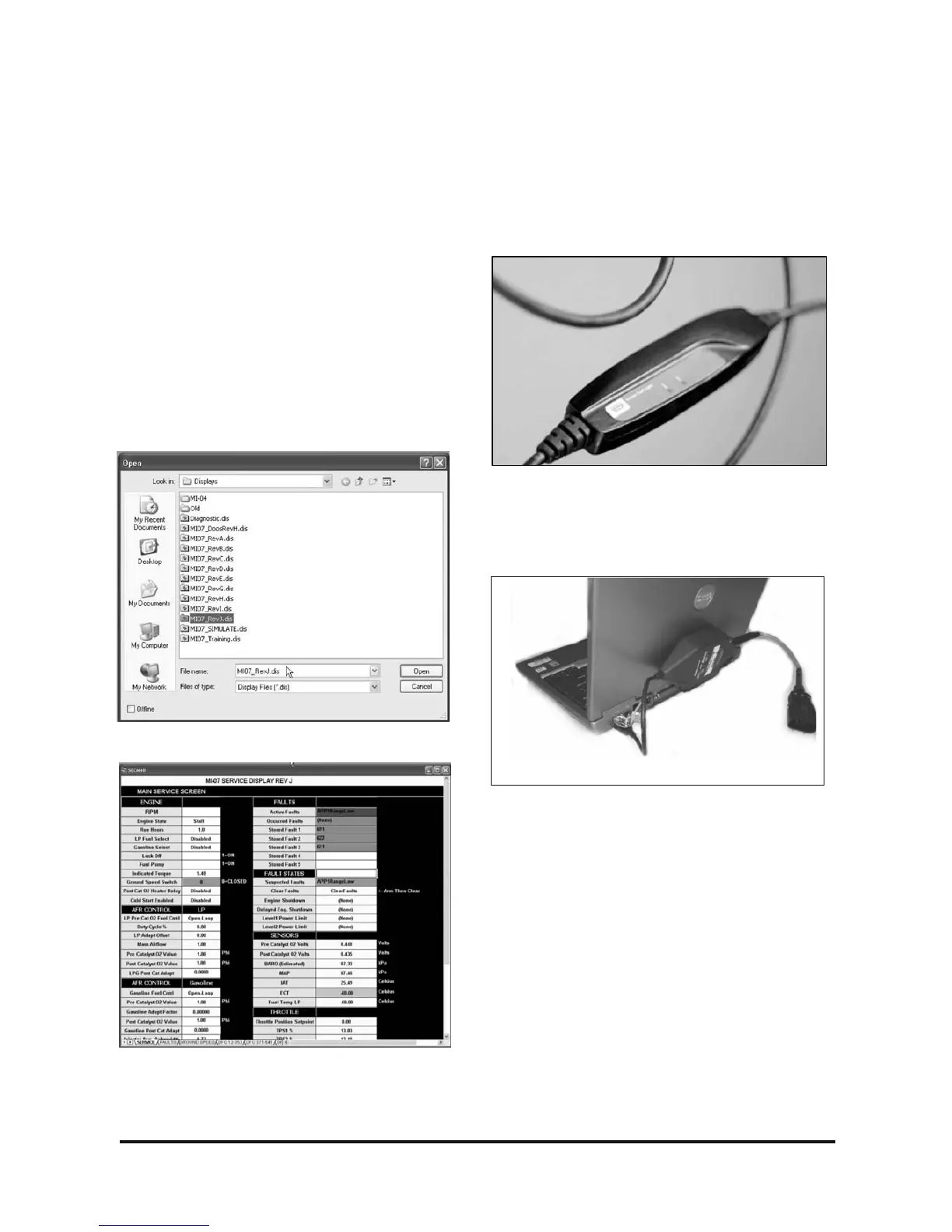

Figure 1. Opening MotoView Software
Figure 2. Display File of Available Diagnostic
Features
Service Tool Software Kit
Service tool software kit consists of USB-CAN
converter, Service tool software (MotoView) and
Extension cable.
A408026
USB (Universal Serial Bus) to CAN (Controller Area
Network) Converter Assembly
A343080
Service Tool Software (includes CD and Crypt
Token (License Dongle))
