G424F(FE) Service Manual Chapter 3. Engine Mechanical System 33

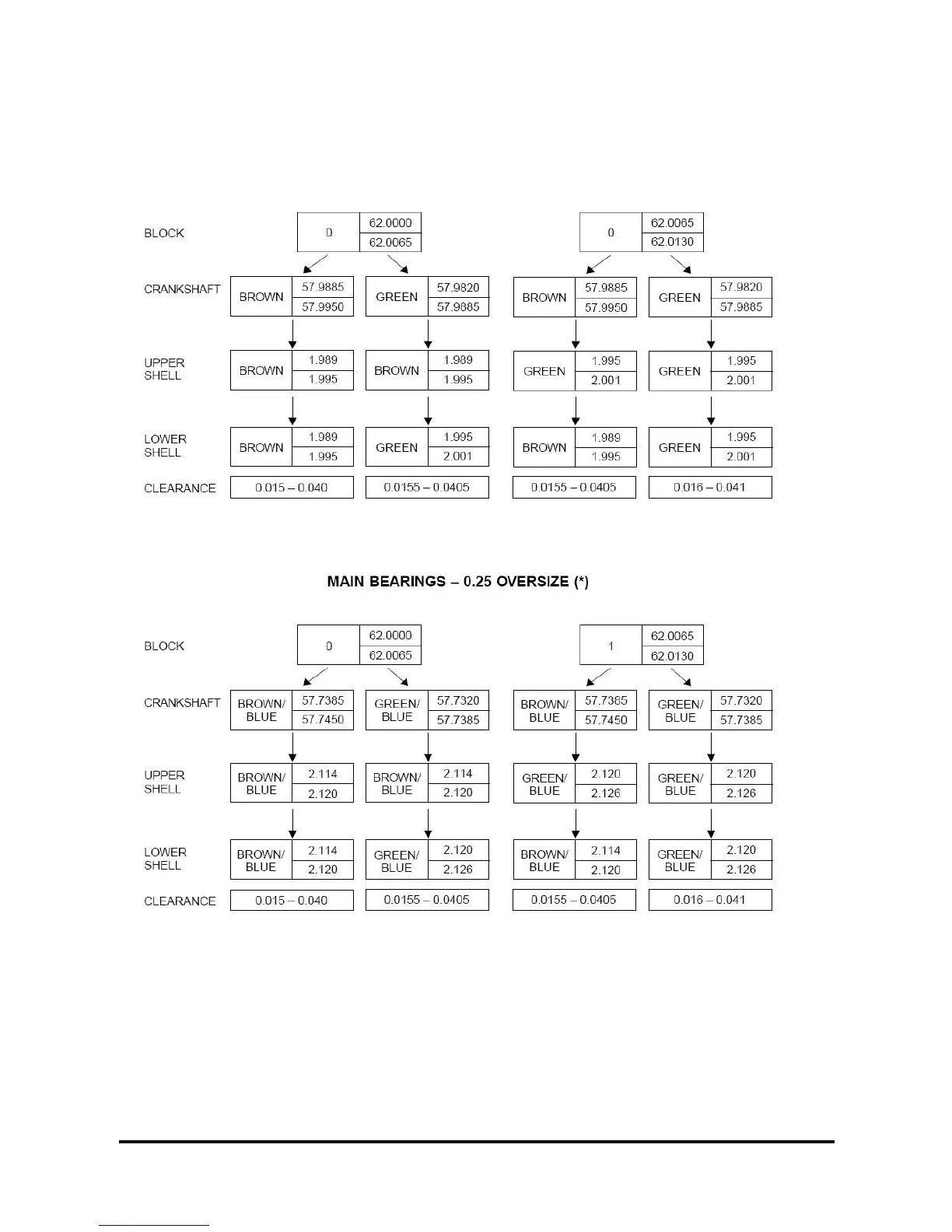

Shells Selection Table

MAIN BEARINGS – STANDARD SIZE (*)

(*) ALL MEASURES ARE IN MILLIMETERS
