G424F(FE) Service Manual Chapter 3. Engine Mechanical System 61
The thermostat housing has two outlet ports. Upper
outlet port is connected to distribution block and
lower outlet is connected to coolant pipe and coolant
flow is recirculated to water inlet through coolant

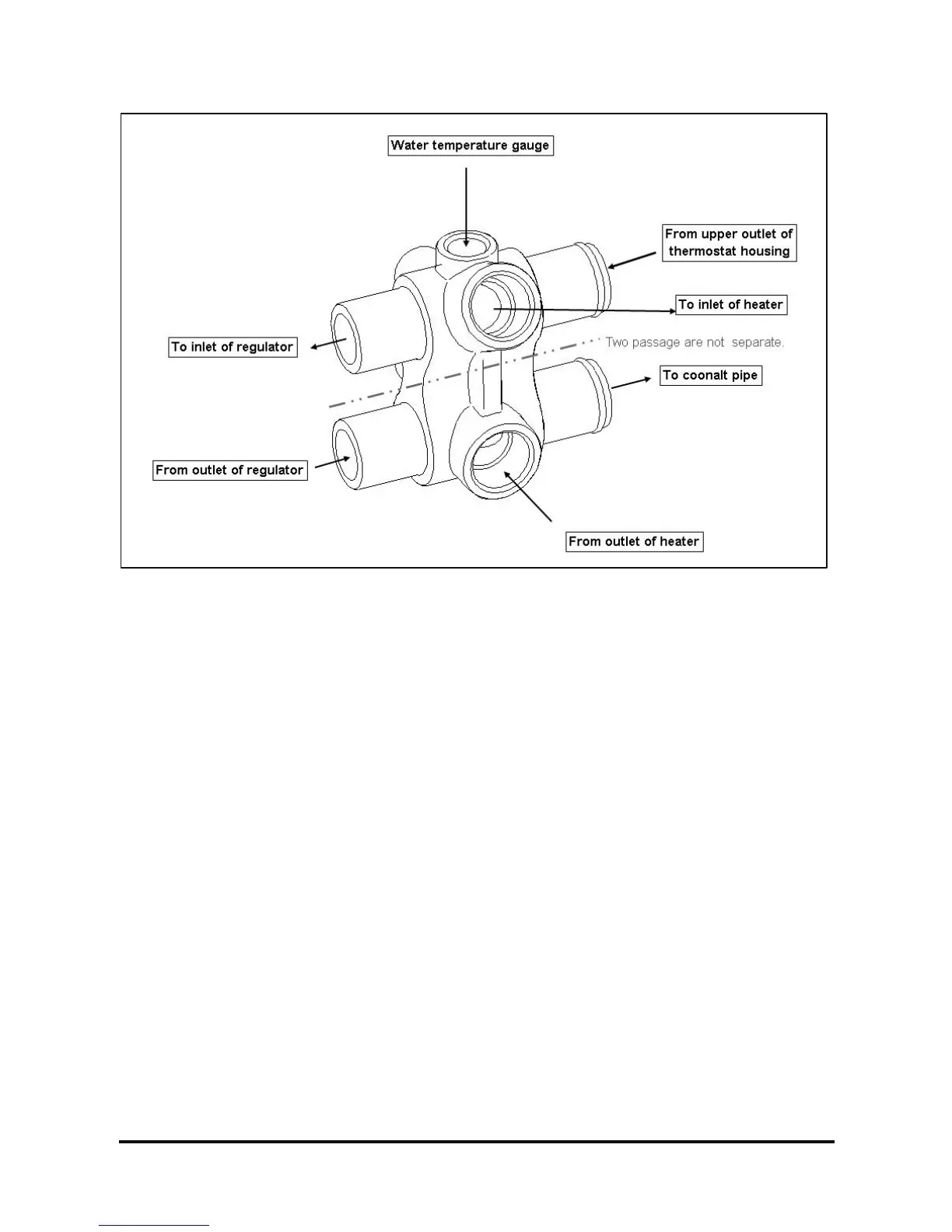

pipe until thermostat is open. The distribution block
has 5 ports as shown a picture.
