G424F(FE) Service Manual Chapter 3. Engine Mechanical System 87

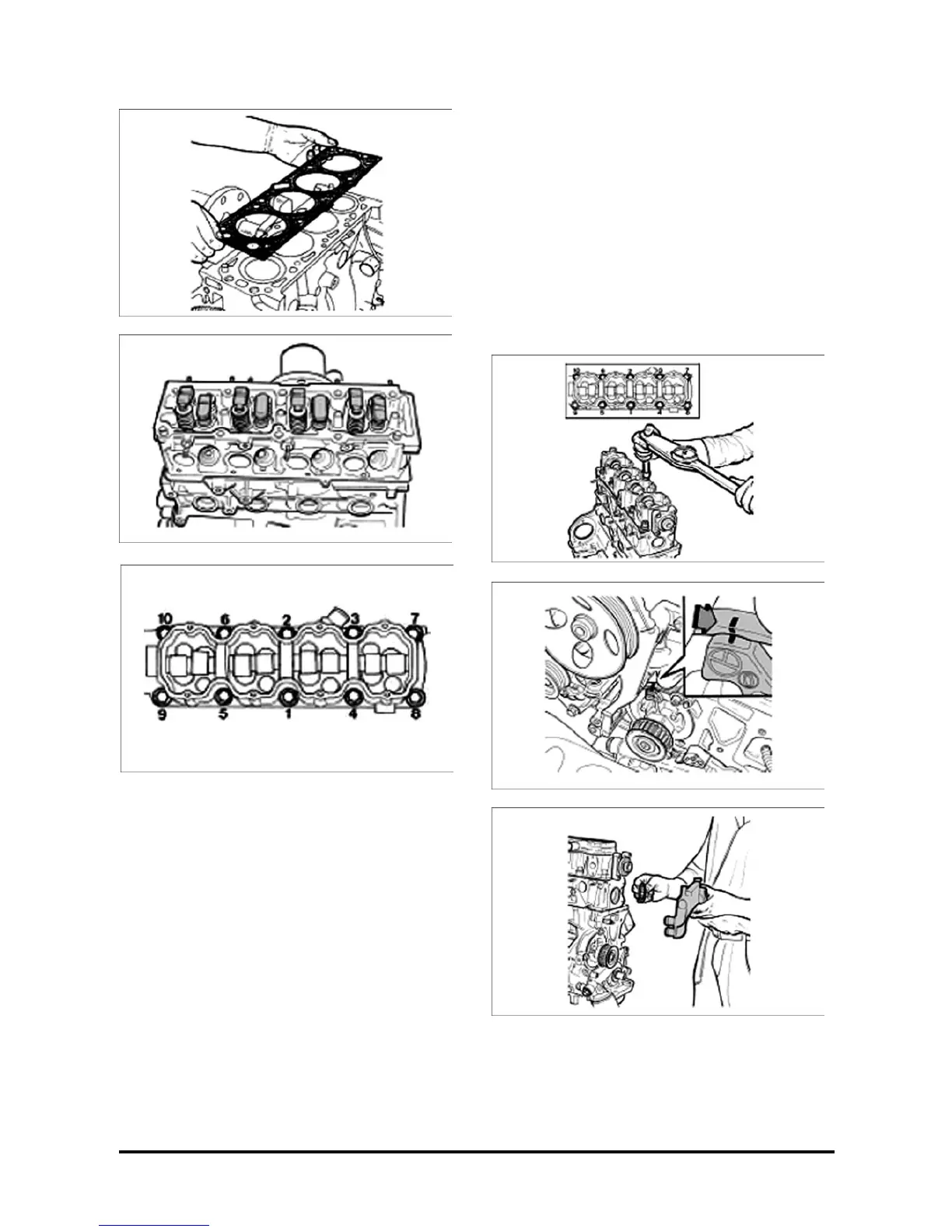

21. Camshaft case.
22. New cylinder head attaching bolts, in the
indicated sequence, with a Torx E55 wrench and
torque wrench.
Tighten
• Bolts: 25 N·m (18 lb·ft.) + 180° + 10°.
23. A new “O” ring in the water pump.
24. Water pump and attaching bolts, with a 6-mm
Allen wrench and torque wrench.
Obs.: See the reference mark between water pump
and block.
Tighten
• Bolts: 20 – 30 N·m (14,7 – 22 lb·ft.)
25. New seal ring in the thermostat housing.
26. Thermostat housing in the cylinder block and its
attaching bolts, with a 13-mm socket wrench and
torque wrench.
Tighten
• Bolts: 10 – 20 N·m (7 – 15 lb·ft.).
27. Belt rear cover and bolts and attaching nut, with
a 10-mm socket wrench and torque wrench.
