Doran 4200 - Value Per Bar (Sd, Pd, DD)

Value per Bar (Sd, Pd, dd)
This mode is used for zero checkweighing only. The Over and Under values determine the
value of each bargraph bar for that part of the display. The Over value specifies the value
for each bar to the right of the center of the Accept region. The Under value specifies the
value of each bar to the left of the center of the Accept region.

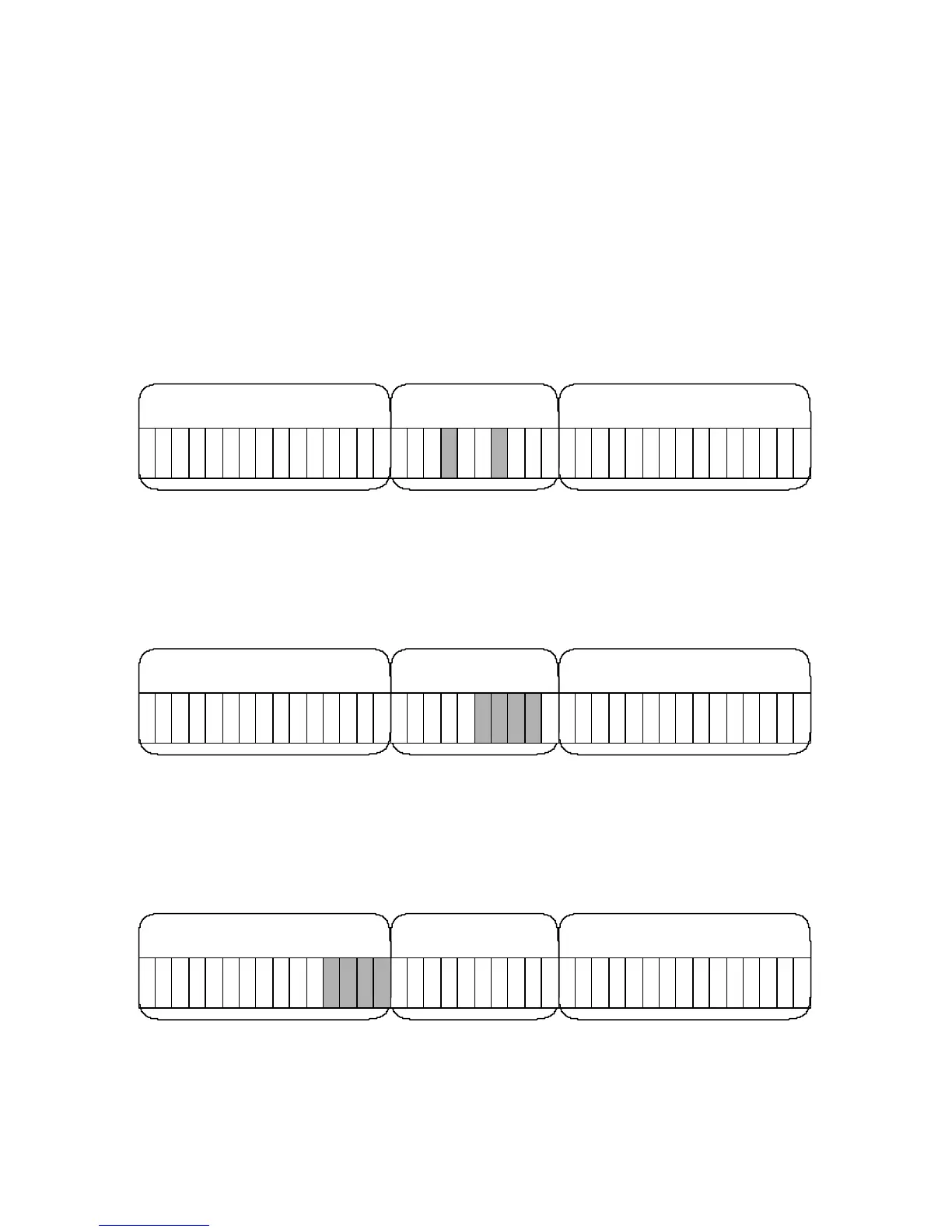

In the following examples, the Over value is 0.2 lb, and the Under value is 0.1 lb.
UNDER ACCEPT OVER
Example 1 - weight on scale is 0 lb. (after zeroing)
UNDER ACCEPT OVER
Example 2 - weight on scale is +0.8 lb.
UNDER ACCEPT OVER
Example 3 - weight on scale is -0.9 lb.
