31DORMA
8
7
6
5
4
3
2
1
ON

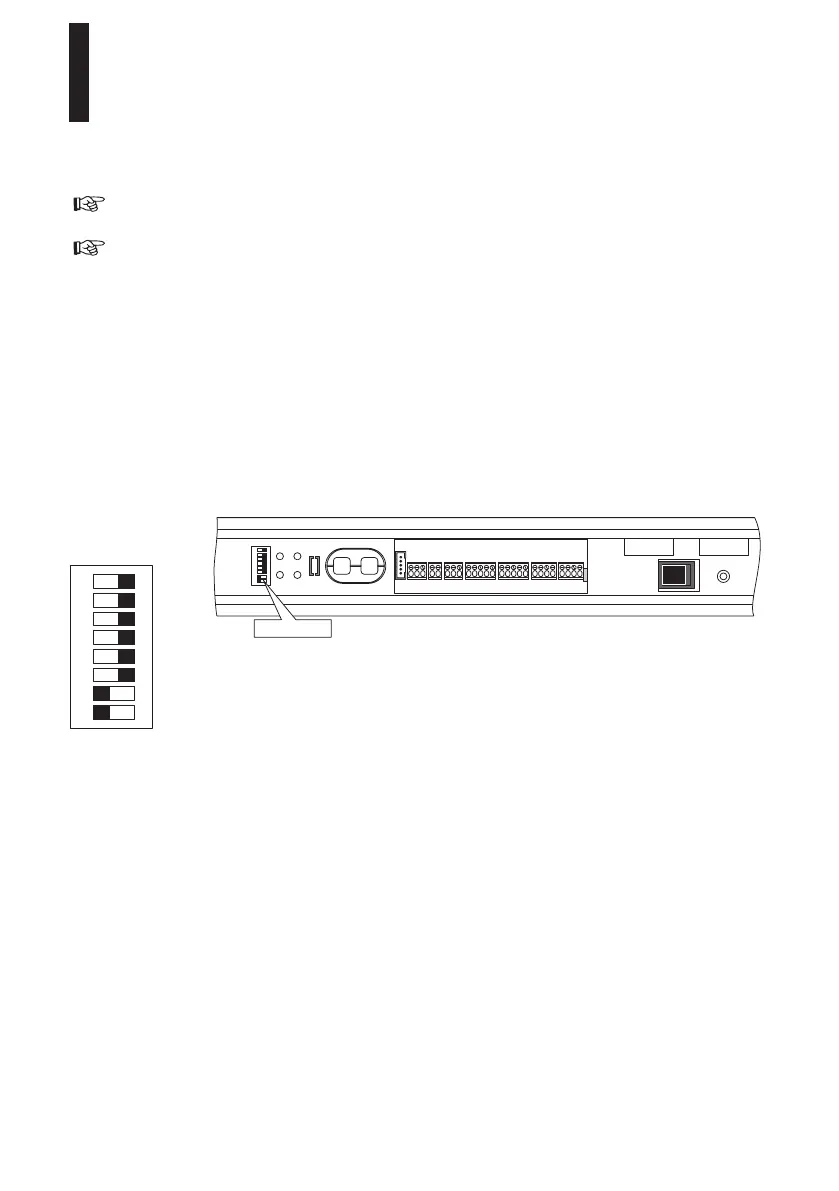

DIP switch
8
7
6
5
4
3
2
1
ON
12. Connection of closing edge protection
This work may only be performed by properly qualified staff.
Main closing edge is the leading edge of the door.
Activating the sensor will disable automatic operation in the closing direction.
Secondary closing edge is the trailing edge of the door.
Activating the sensor will disable automatic operation in the opening direction.
When testable sensors for the protection of the closing edges are connected, the control unit
has to be adjusted to the sensors via the DIP switches.
When a sensor is connected to the main closing edge
Set DIP switch 1 to ON and DIP switch 3 to OFF.
When a sensor is connected to the secondary closing edge
Set DIP switch 2 to ON and DIP switch 3 to OFF.
When sensors are connected to the main and secondary closing edge
3 ON
= test high active
OFF
= test low active
2 ON
= sensor test for secondary closing edge activated
OFF
= sensor test for secondary closing edge deactivated
1 ON
= sensor test for main closing edge activated
OFF
= sensor test for main closing edge deactivated
Installation and Maintenance Manual
CS 80 MAGNEO
