23DORMA
C
CENTERED
L
A = at least L + 4.72" [120 mm]
2" min.
[50 mm] min.
2.75" min.
[70 mm] min.
“Closed” position
Side with
connections
2.50"
[6 mm]
Bottom edge of lintel
X
2.75" min.
[70 mm] min.
==
M
2" [50 mm]
2.95" [75 mm]
The CS 80 MAGNEO sliding door operator is
also suitable for an “invisible” in-wall moun-
ting. For this kind of mounting a recess with
a width of at least 2” [50 mm] and adepth
of 2.95” [75 mm] is required. Furthermore
a special door frame made by BOS can be
used. For this purpose you will have to talk
about some details with the manufacturer.
Phone number BOS: 877-367-6211
URL:BestOfSteel.de
**Dimensions marked (=) are equal.**

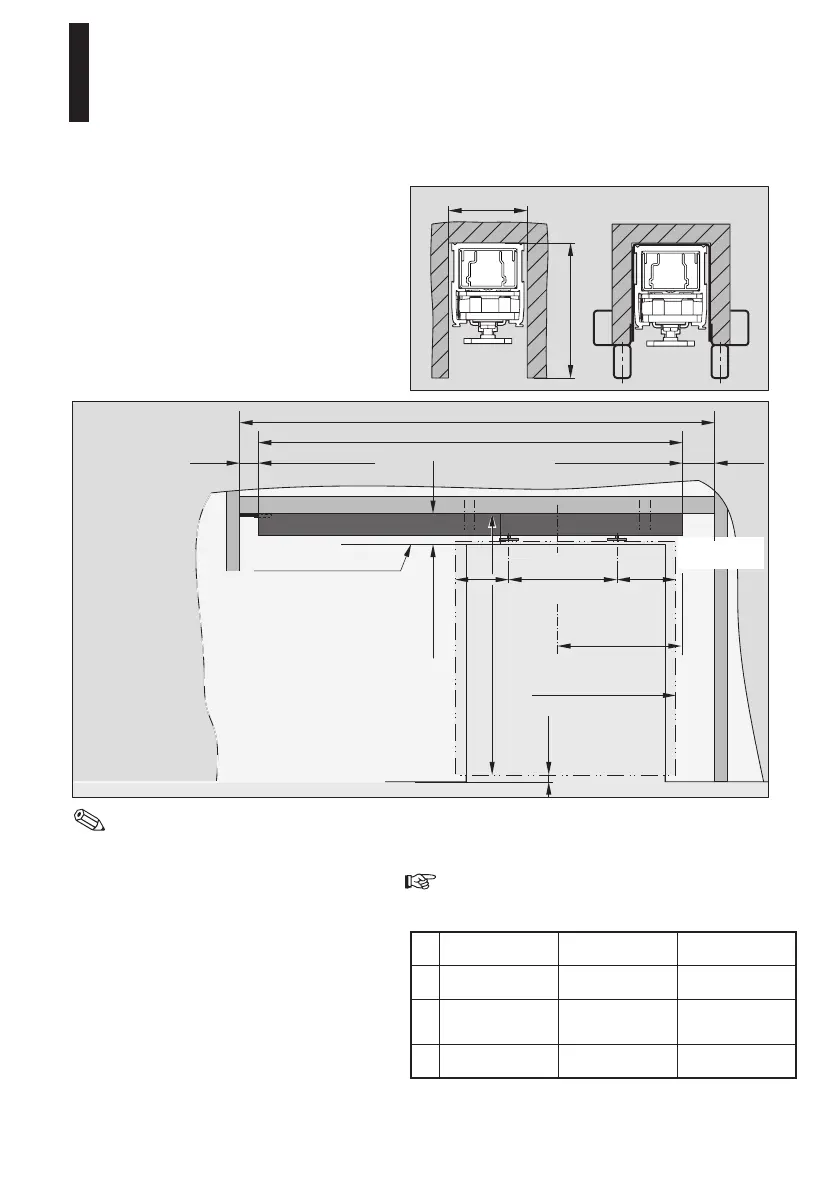

9. Installation instructions for in-wall mounting
The wall must not be closed before
the system has been installed.
The connections should always be on the
side where the door panel is when
the door is in closed position.
• DimensionLstandsfortheoperator
length.
• DimensionMindicatesthedistance
from the centre of the passage area
to the side of the operator where the
connections are located.
•
Thedistancebetweenthedoor
panel and the floor should amount to .24” [6
mm] and must not exceed .315” [8 mm].
The holes for the cables must be
sufficiently big and must not have sharp edges.
Please have a look at the table and the drawing for
the dimensions regarding your operator.
L
68.9“ [1750 mm] 78.7“ [2000 mm] 88.6“ [2250 mm]
M
17.2“ [437,5 mm] 19.7“ [500 mm] 22.1“ [5625 mm]
A
73.6“ min.
[1750 mm] min.
83.5“ min.
[2120 mm] min.
93.3“ min.
[2370 mm] min.
C
22.6“ [575 mm] 27.6“ [700 mm] 32.5“ [825 mm]
When using Wooden door panel:
X= Doorpanelheight+3“[75mm]
When using Glass clamping rail:
X= Doorpanelheight+4-1/2“[114mm]
When using DORMA MANET
single-point fixings:
X= Doorpanelheight+2.9“(74mm)
Dimension X has to be measured at the
highest point of the floor within the
movement range of the door system.
Installation and Maintenance Manual
CS 80 MAGNEO
—
