22 DORMA
3.
Y
2.
1.
Y
4.
1.
2.
3.

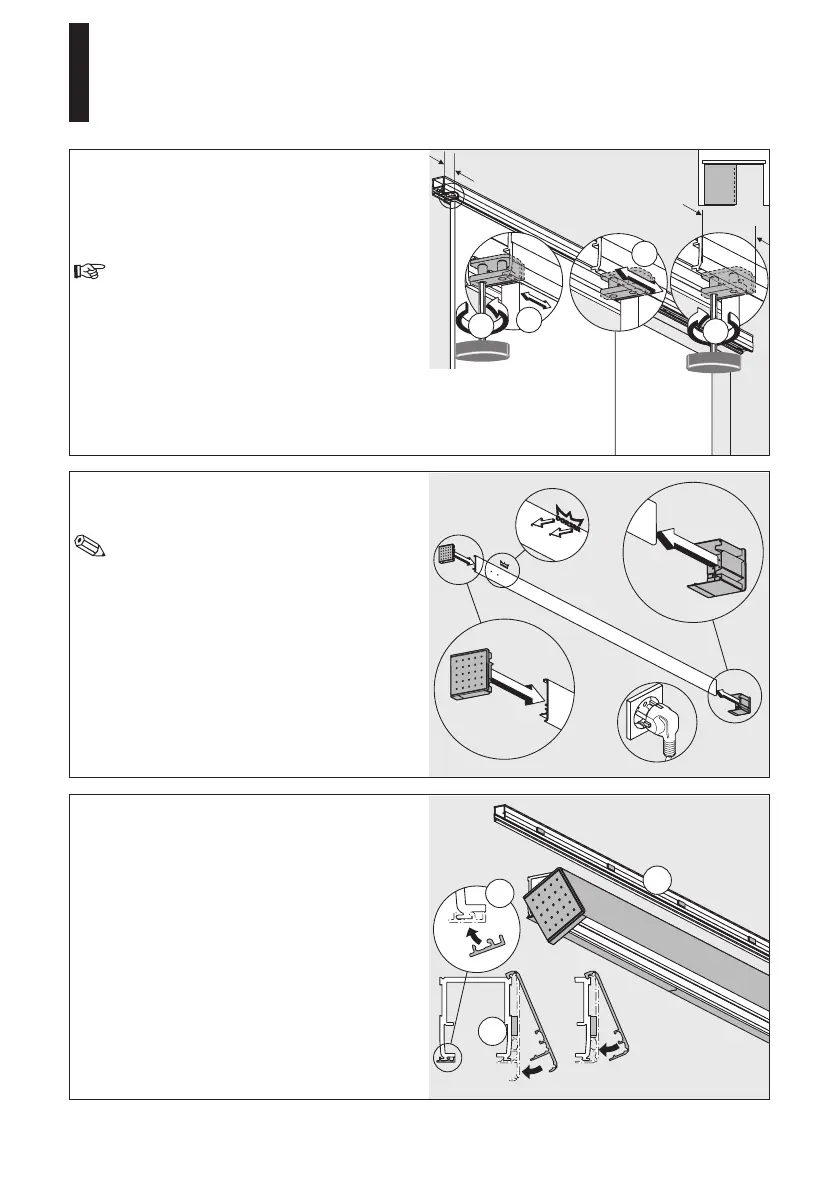

Loosenthescrewsofendstopontheother
side and move the door to the desired open
position. Move the end stop next to the
door panel and screw down tight (3.7 ft/lb).
The end stop may only be moved to the
inside by a certain dimension.
34.4” [875 mm] operator=>7.9” [200 mm] max.
39.4” [1000 mm] operator => 9.5” [250 mm] max.
48.2” [1125 mm] operator => 11.8” [300 mm] max.
Fix the DORMA logo in the two drill holes.
Insert the end caps into the cover.
Depending on the prevailing structural
conditions, the end caps can either be cut
to length or broke out at the predetermined
breaking points.
Please install radio receivers, program switches
and/or sensors and lay the cables as indicated in
the enclosed instructions.
When the system is operated with a power plug,
plug it in.
1.
Adhere the 4 provided pieces of foam
rubber equally onto the operator.
2.
Fix the black wall connection profiles at the
bottom of the operator on the side where it
is connected to the wall. Cut the last profile
to length with the aid of a knife.
3. Place the cover onto the operator and clip it
shut. When using DORMA MANET
single-point fixings, you have to use the
shorter cover (displayed on the right side).
Continue with the commissioning of the system
as indicated starting from page 32.
Installation and Maintenance Manual
CS 80 MAGNEO
—
