21DORMA
3.
3.
2.
Y
4.
1.
Y
.250"
[6 mm]

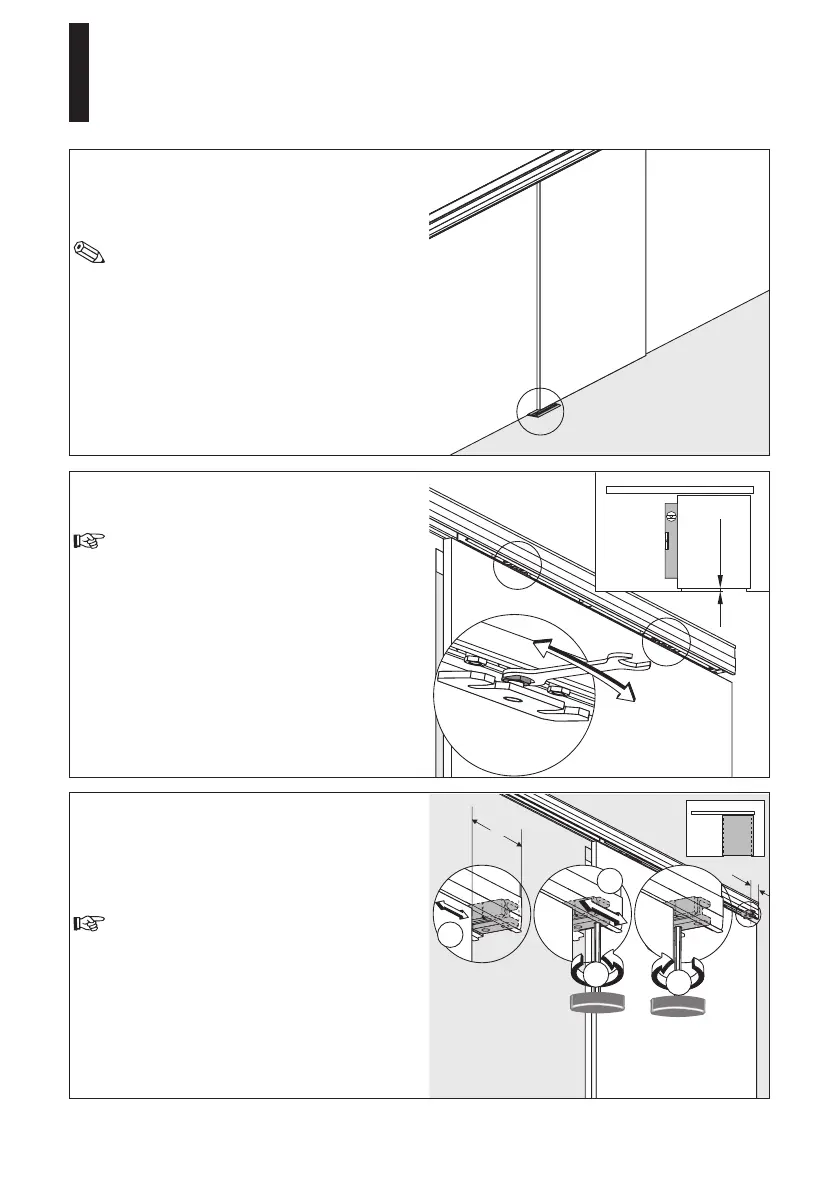

Locateandfixtheprovidedfloorguiderail.
Please refer to the mounting instructions of the
floor guide.
When adjusting the floor guide you have
to make sure that the door panel runs
smoothly through the floor guide (does not
rub against the floor guide).
Align the door panel with the aid of the adjust-
ment nuts so that it is level.
The distance between the bottom edge of
the door panel and the floor should amount
to .250”, however, it must not
exceed .3125”
Loosenthescrewsoftheendstopontheside
where the connections are and move the door
to the desired closed position. Move the end
stop next to the door panel and
screw down tight (5Nm).
The end stop may only be moved to
the inside by a certain dimension.
34.4” [875 mm] operator=>7.9” [200 mm] max.
39.4” [1000 mm] operator => 9.5” [250 mm] max.
48.2” [1125 mm] operator => 11.8” [300 mm] max.
Installation and Maintenance Manual
CS 80 MAGNEO
—
